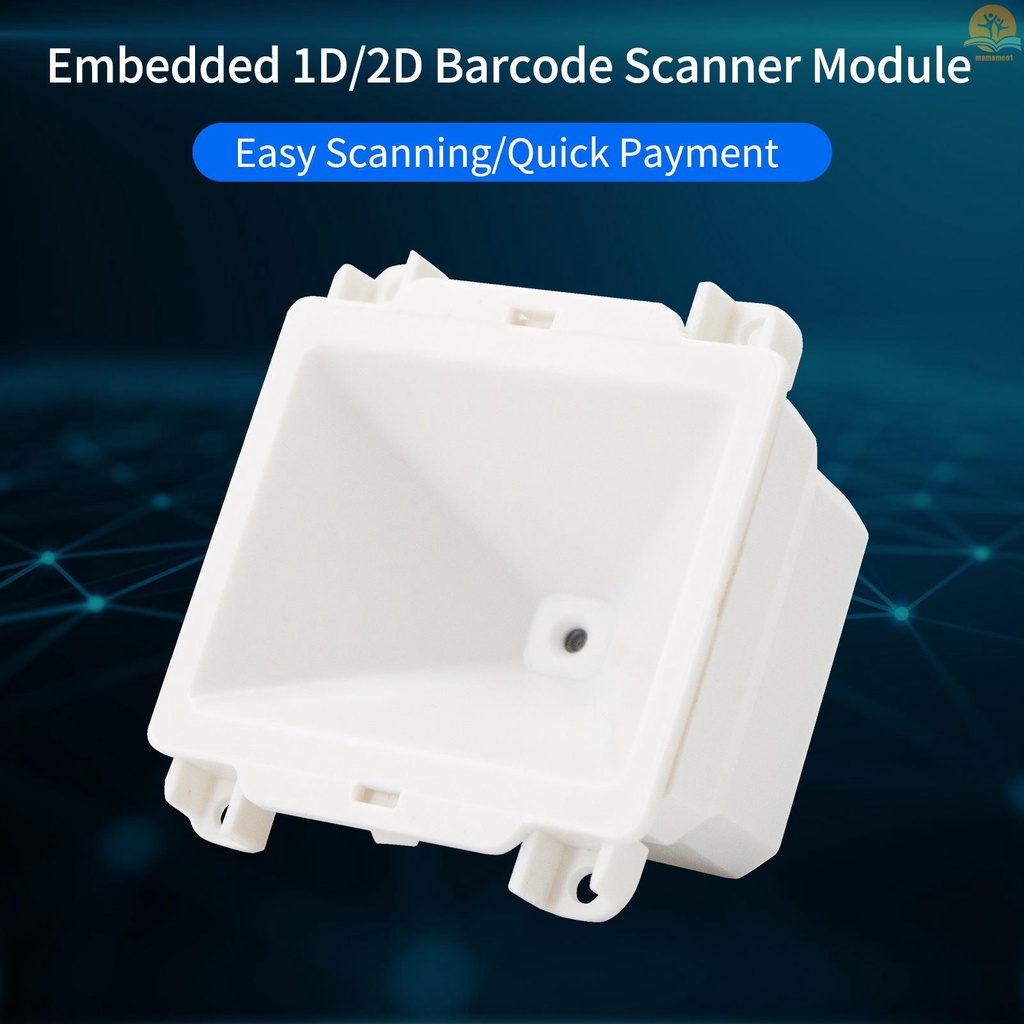

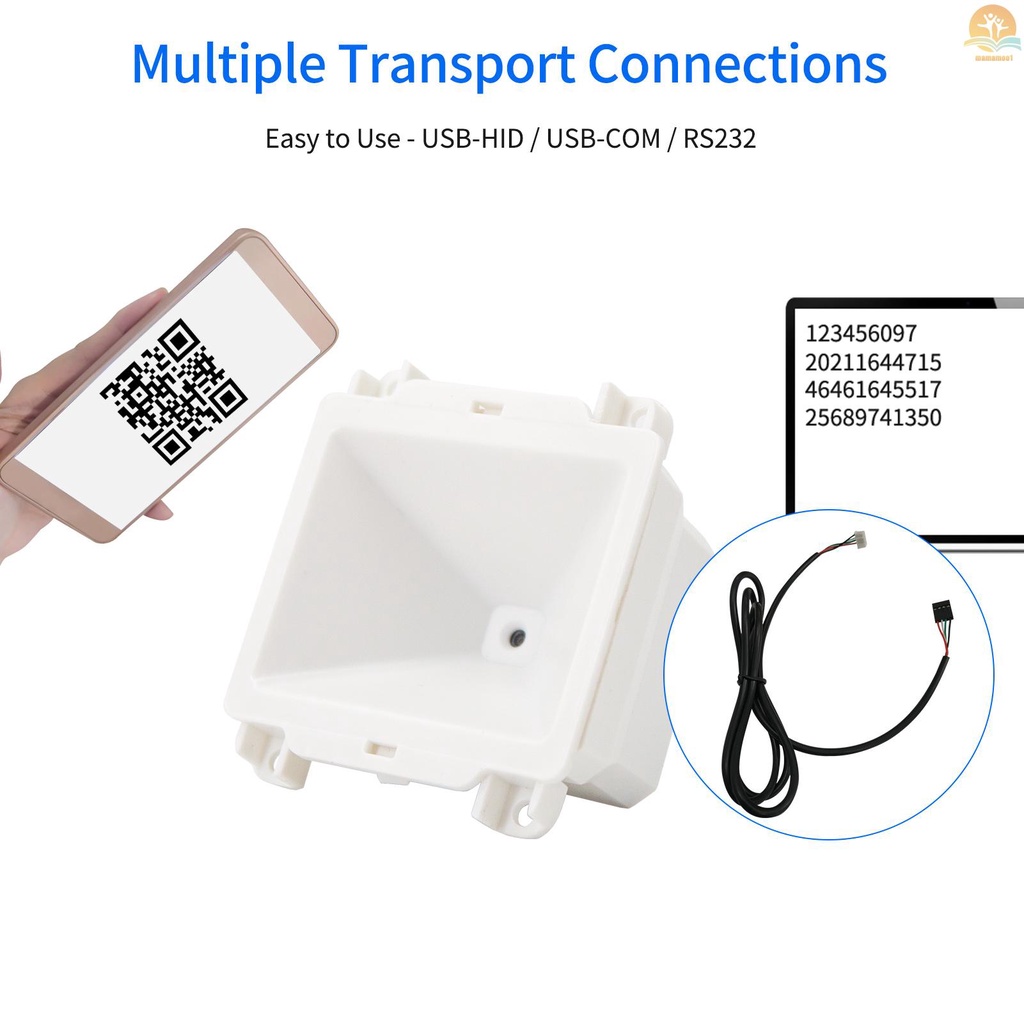

Embedded 1D 2D Barcode Scanner QR Bar Code Reader Module Scanner USB Connection for Gate Machine Tickets Checking Mobile Payment

Detail Embedded 1D 2D Barcode Scanner QR Bar Code Reader Module Scanner USB Connection for Gate Machine Tickets Checking Mobile Payment

Features:
📍 High performance decoding chip, can read 1D and 2D codes, but also can sweep WeChat, Alipay and other payment barcodes.

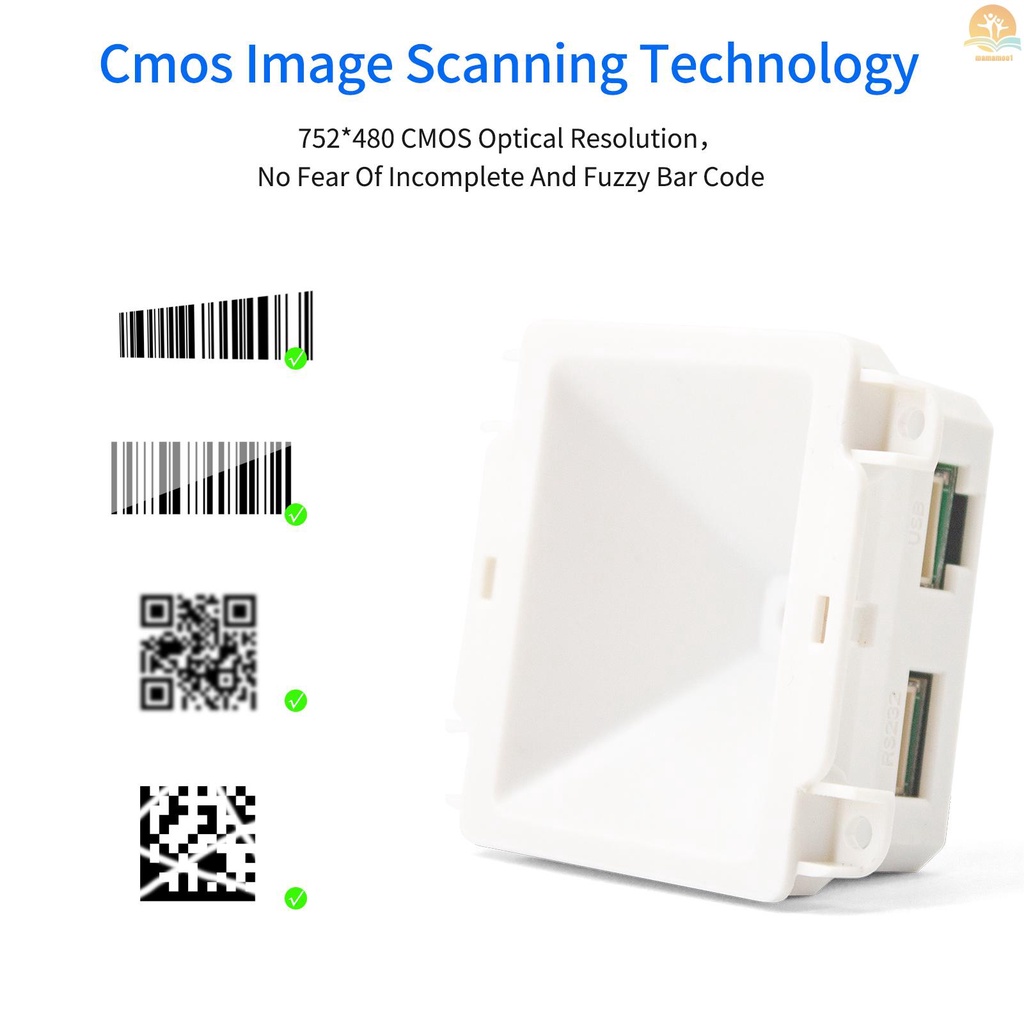

📍 Using CMOS image scanning technology, it can scan paper code and screen code, high-performance decoding chip, no fear of incomplete and fuzzy bar code.
📍 Decode Type: 1D(CODE 128, EAN-13, EAN-8, CODE39, UPC-A, UPC-E, CODABAR, INTERLEAVED 2 OF 5, ISBN, CODE 93, UCC/EAN-128, GS1 DATABAR, Etc); 2D(CODE 128, EAN-13, EAN-8, CODE39, UPC-A, UPC-E, CODABAR, INTERLEAVED 2 OF 5, ISBN, CODE 93, UCC/EAN-128, GS1 DATABAR, Etc)
📍 Made of high quality PC and tempered glass material, the scanner is durable and not easy to damage.
📍 The scanner module can be applied in various occasions such as elevator, community visitors' entry and exit management and son on. Perfect upgrade of traditional card swiping system for various industries.
Specification:
Model: R26
Material: ABS+PC
Size: 65 x 61 x 40mm/ 2.6 x 2.4 x 1.6in
Weight: 20g/0.7oz
Color: White
Optical Resolution: 752*480 CMOS
Scanning Window Size:
Scanning Mode: Inductive Reading
Scanning Speed: 25cm/sec
Scanning Accuracy: ≥4mil
Light Source: LED(630nm)
Brightness: 0-100,000 LUX
View Angle: 34°x 64° (Vertical x Horizontal)
Scan Angle: ±65°,±60°
Decode Type:
-1D
CODE 128, EAN-13, EAN-8, CODE39, UPC-A, UPC-E, CODABAR, INTERLEAVED 2 OF 5, ISBN, CODE 93, UCC/EAN-128, GS1 DATABAR, Etc
-2D
CODE 128, EAN-13, EAN-8, CODE39, UPC-A, UPC-E, CODABAR, INTERLEAVED 2 OF 5, ISBN, CODE 93, UCC/EAN-128, GS1 DATABAR, Etc
Maximum Power: 1.33W
Voltage (3.3 V to 5 V) plus or minus 5%
Maximum Current: 230mA
Working Temperature: -20°C -55°C
Storage Temperature: -40°C -80°C
Working Humidity: Relative humidity 5%-95% (no condensation)
Package Size: 12.5 x 8.5 x 3.8/4.9 x 3.3 x 1.5in
Package Weight: 240g/5.5oz
Packing List:

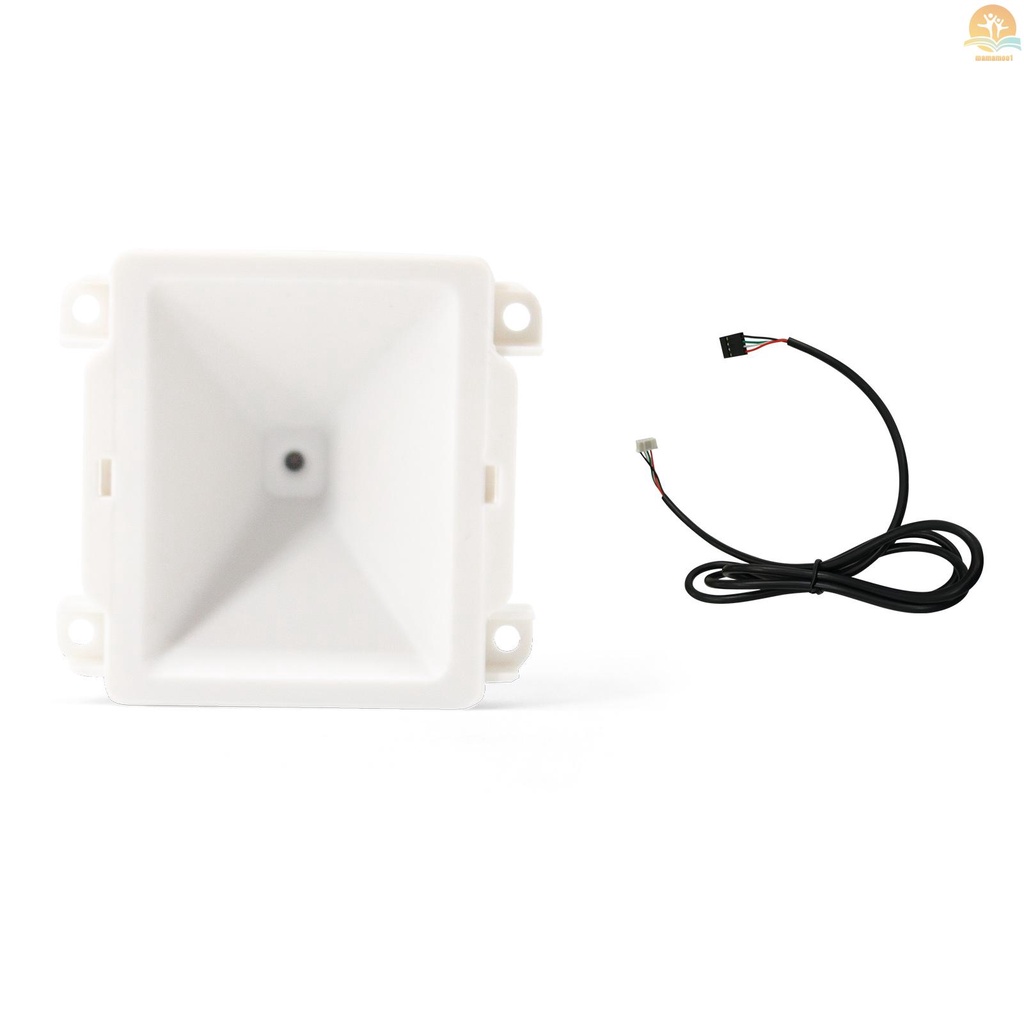

1 x Embedded Barcode Scanner Module
