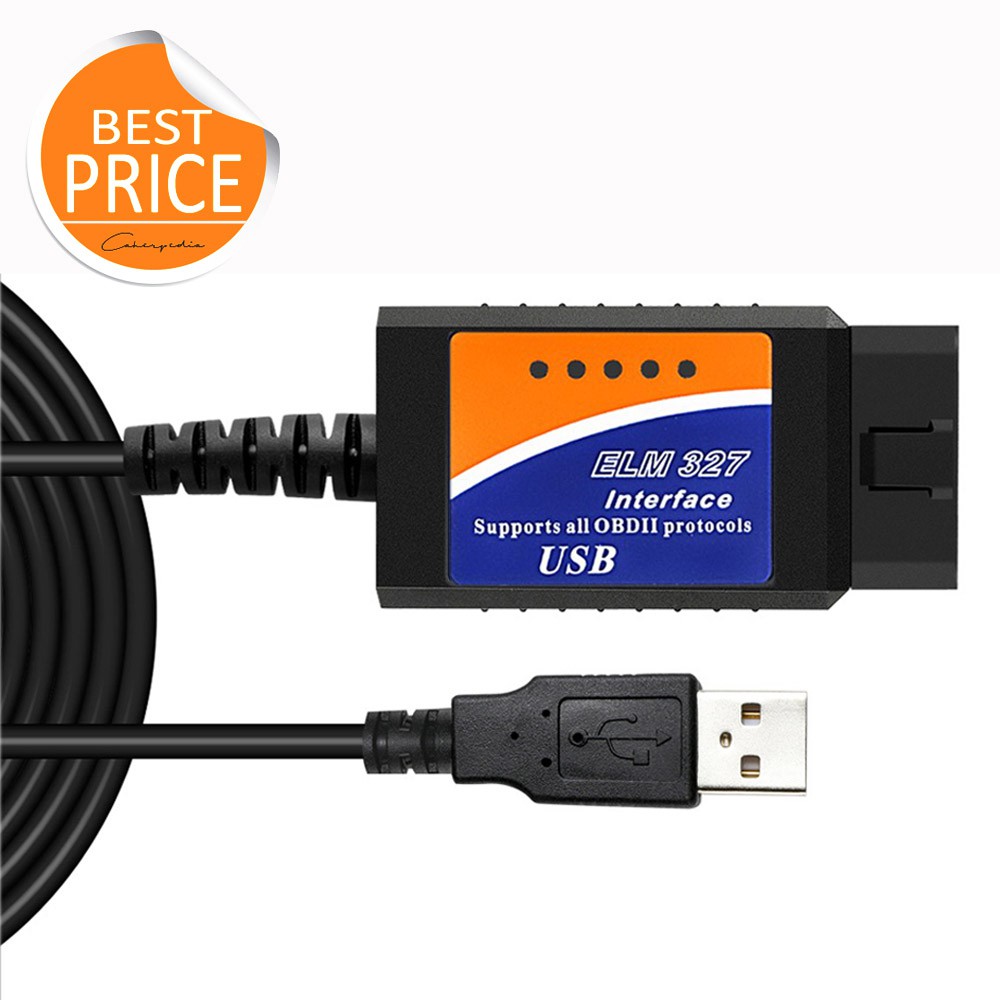

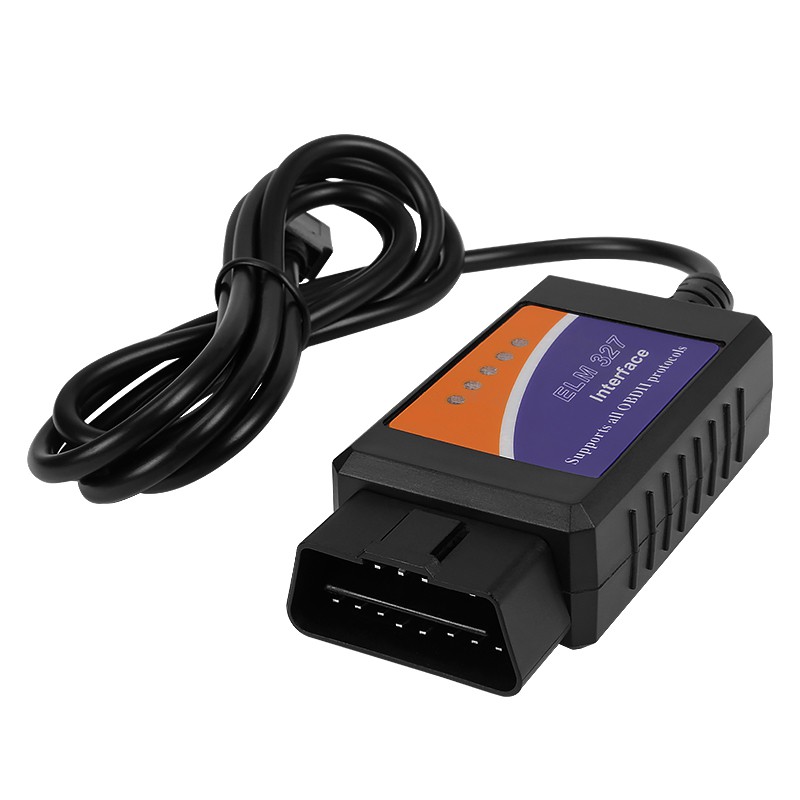

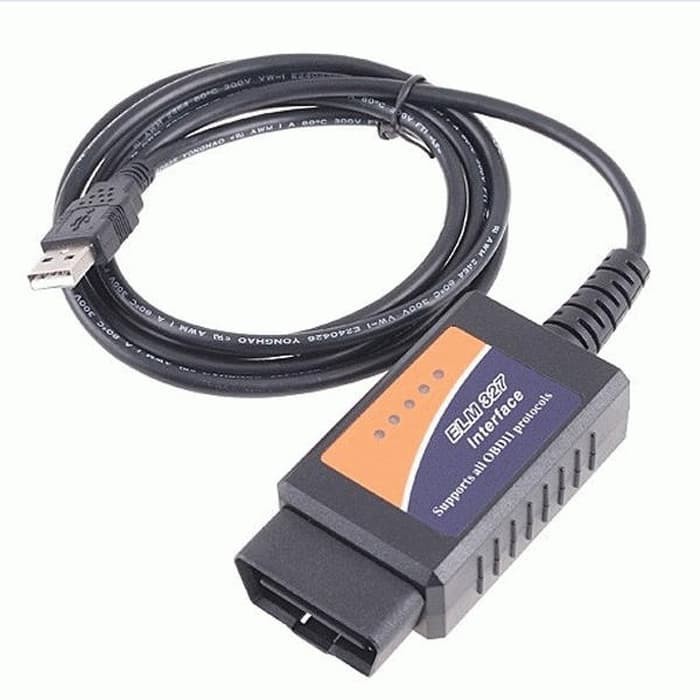

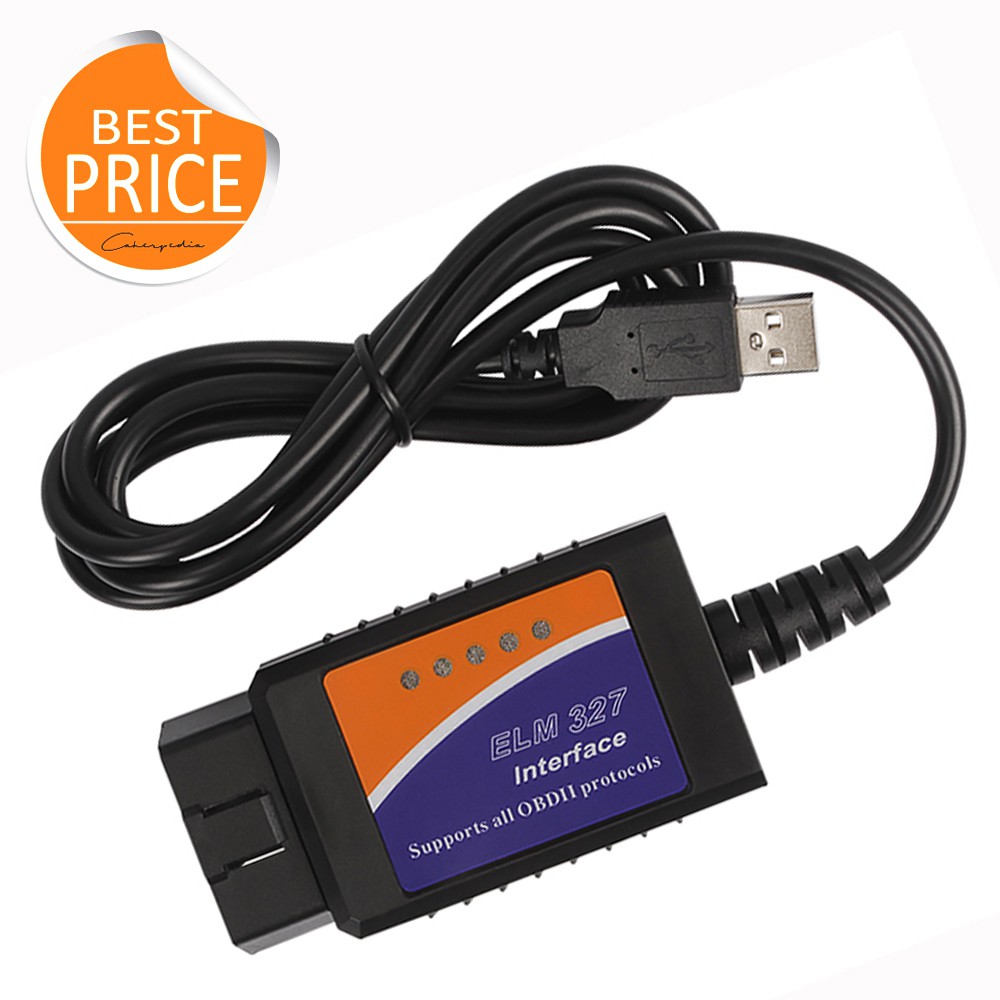

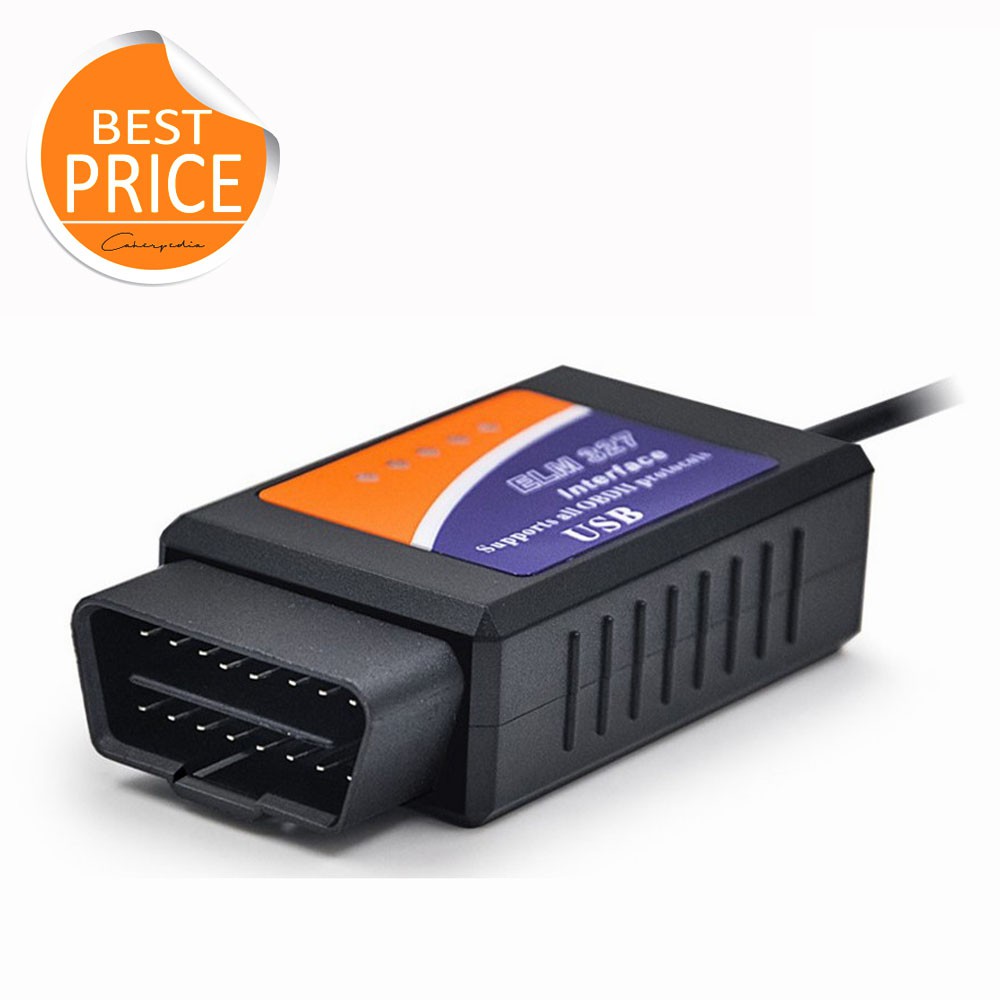

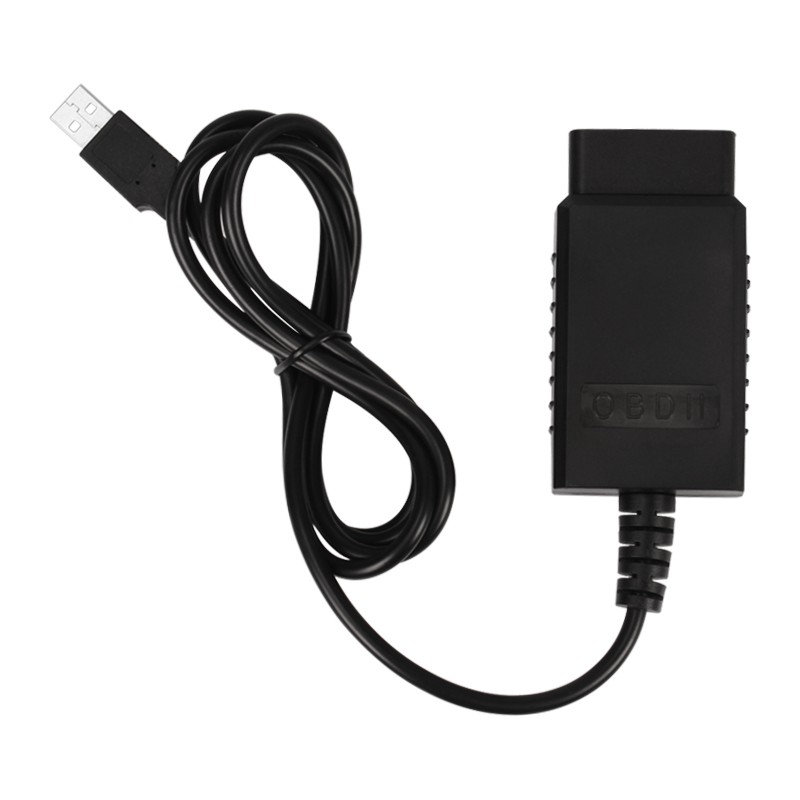

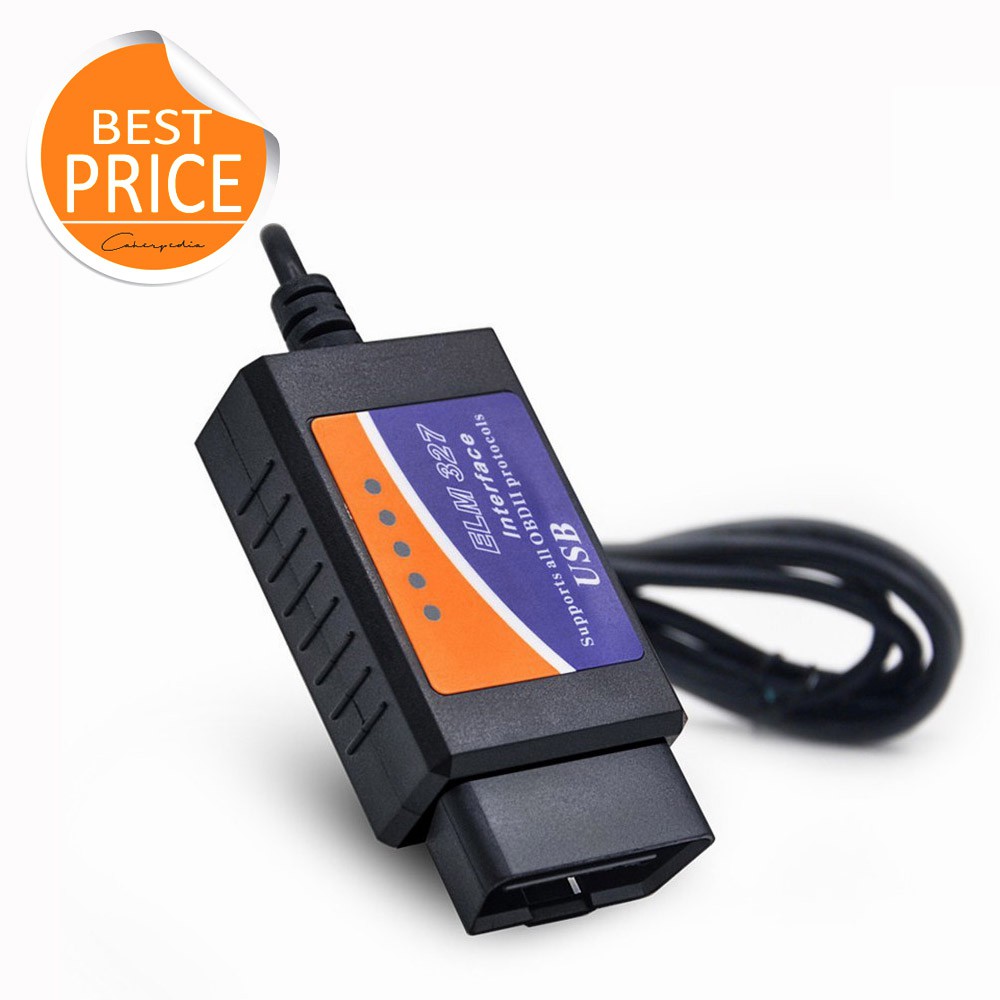

ELM327 OBD2 USB Scanner Car Diagnostic Scanner Mobil USB OBDII

Detail ELM327 OBD2 USB Scanner Car Diagnostic Scanner Mobil USB OBDII

Scanner mobil dengan port USB

Descriptions:
ELM327 is the latest PC-based scan tool. It supports OBD-II protocols and is dispatched with a number of compatible programs.
ELM327 OBD-II Software is a free program that allows you to use your PC and a hardware interface to get the information from your car'
s computer.

Features :
user-friendly, easy to learn, and easy to install.
The output protocol (connection to laptop) is USB.
The software supports two platforms - DOS and Windows, (not include Windows 7)
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light).
Display current sensor data, including:
Engine RPM,Calculated Load Value,Coolant Temperature,Fuel System Status,Vehicle Speed,Short Term Fuel Trim,Long Term Fuel Trim,Intake Manifold Pressure,Timing Advance
Intake Air Temperature,Air Flow Rate,Absolute Throttle Position,Oxygen sensor voltages/associated short term fuel trims,Fuel System status,Fuel Pressure

Specifications :
OBDII Protocols:
ISO15765-4 (CAN),ISO14230-4 (KWP2000),ISO9141-2,J1850 VPW,J1850 PWM
Output protocol: RS232
Baud rate: 9600 or 38400
Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power
Operating voltage: 12V, internal protection from short circuits/overvoltages
Nominal idle current: 45mA
Color: Back + Orange + Blue
Item Weight:114g
USB Cable Length:Approx.146cm

Free software :
GM Mode 22 Scan Tool by Terry
OBD Gauge for PalmOS and Pocket PC by Dana Peters
OBD Logger by Jonathan Senkerik
OBD-II Scan Master by Wladimir Gurskij (ScanMaster 3.52 - local copy)

OBD2 Scantool by Ivan Andrewjeski
OBDII for ELM322 by David Huffman
pyOBD by Donor Size more for Macaco and

#elmusb #obd2
