ELM327 Mini OBD OBD2 Bluetooth Car Scanner Alat Scan Mobil Android

Detail ELM327 Mini OBD OBD2 Bluetooth Car Scanner Alat Scan Mobil Android

TOKUIN NEW ARRIVAL!!
ORIGINAL 100% NEW!!

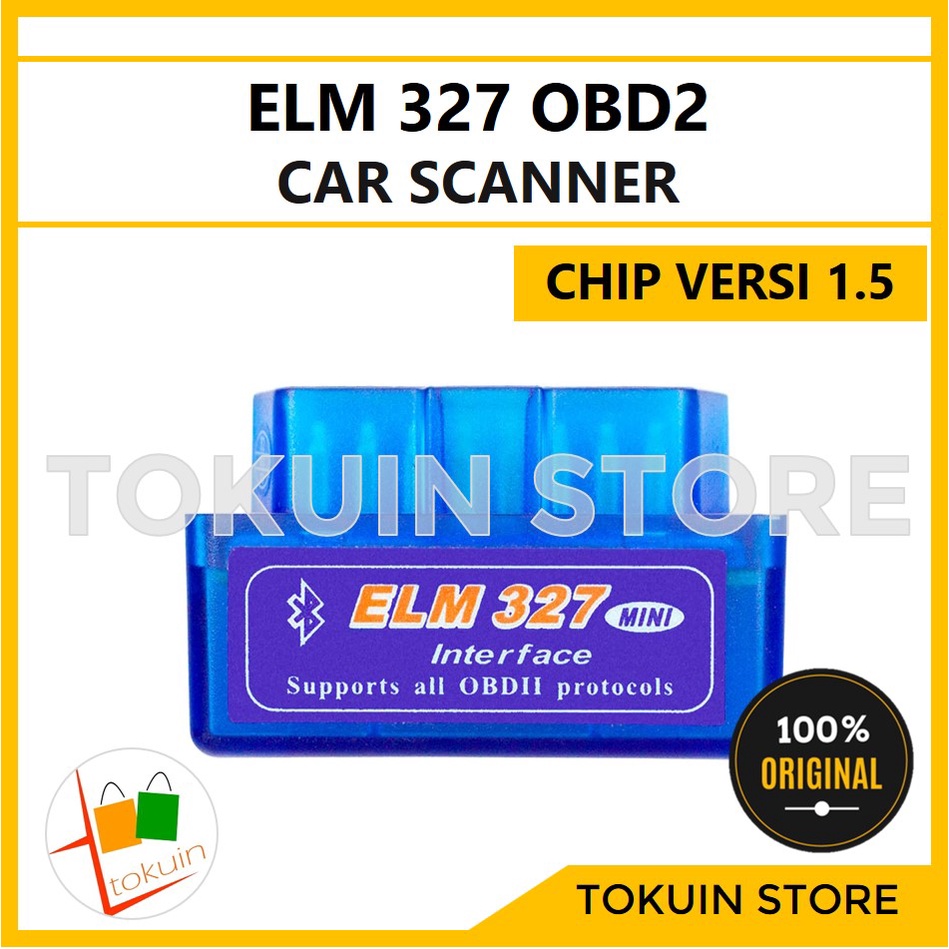

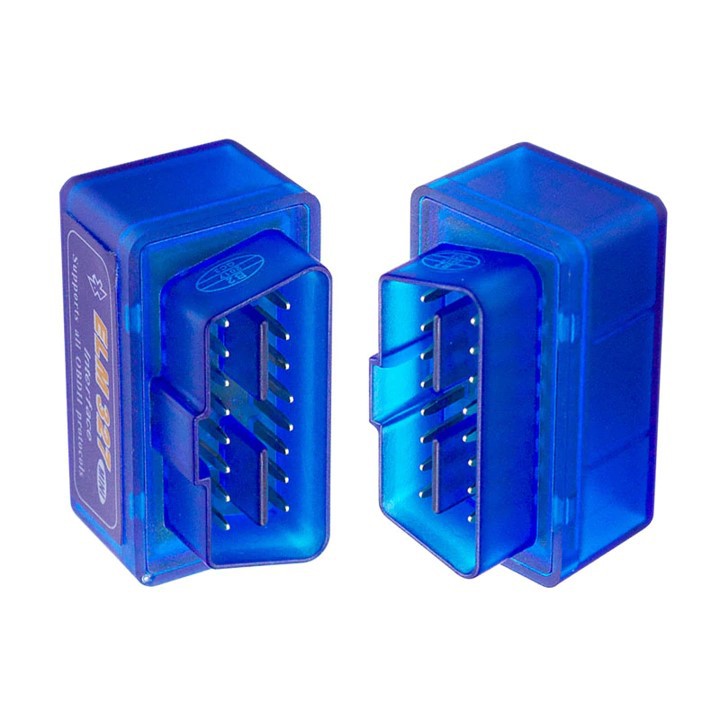

ELM327 327 Super Mini OBD OBD2 Bluetooth Car Scanner Alat Scan Mobil alt OM500

Varian:
- Versi 1.5
- Versi 2.1


Catatan:
Sebelum membeli, tolong infokan dulu mobil yang akan dipakai lewat chat.

ELM ini tidak bisa digunakan pada mobil dibawah ini :
- Mobil kembar toyota-daihatsu (Avanza, Xenia, Agya, Ayla, Rush, Terios)
- Mobil Diesel
- Wuling
- Nissan
- Suzuki
- Mobil sebelum 2002
- Mobil dengan cc di atas 2000cc
- Mazda 323 Protege 2003 (OBD-I)
- Mitsubishi Lancer 1.6M 2006
- Proton Perdana V6
- Subaru Legacy GT 2005
- Toyota camry 2002, Wish JDM (Missing Pin 5 in DLC), IST JDM (Missing Pin 5 in
DLC),altis 1.8 2004

Features:

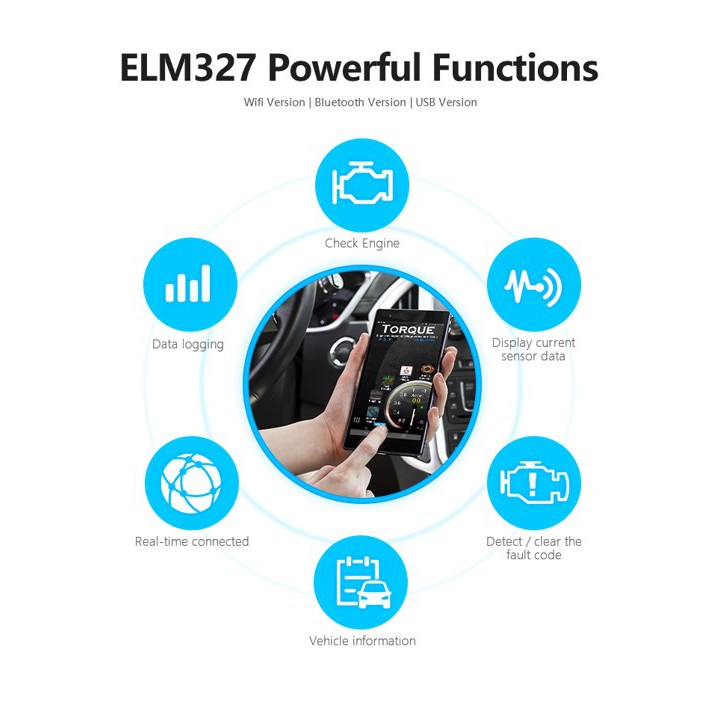

- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Super Mini ELM327 OBD2 OBDII Bluetooth Auto Car Diagnostic Interface Scanner, Easy to take.
- Works with all OBD-II compliant vehicles.

Description:
Display current sensor data, including:
1.Engine RPM
2.Calculated Load Value
3.Coolant Temperature
4.Fuel System Status
5.Vehicle Speed
6.Short Term Fuel Trim
7.Long Term Fuel Trim
8.Intake Manifold Pressure
9.Timing Advance
10.Intake Air Temperature
11.Air Flow Rate
12.Absolute Throttle Position
13.Oxygen sensor voltages/associated short term fuel trims
14.Fuel System status
15.Fuel Pressure

Specifications:
- Model name: ELM327 OBD2 bluetooth
- Material : plastic
- Voltage: 12V
- Current: 45mA
- Wave frequency: 38400Hz
- Applicable scope: 5-10m / 16.4-32.8ft
- Item size: 4.8 * 2.5 * 3.4cm / 1.89 * 0.98 * 1.33in
- Support OBDII Protocols:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
SAE J1939
J1979

Software Included:
1. Scantool_net113win (Full Version)
2. EasyOBDII V2.2 (Full Version)
3. OBD2Spy(Demo Version)
4. ScanMaster-ELM (Demo Version)
5. wOBDCRAZY (Demo Version)
6. This hardware can match many other software still! But most are not free.

Package Included:
1 X Mini ELM327 Scanner
1 X CD-ROM
