Angle: 45 degrees, 90 degrees, ± 3
Beam distortion: +/- 2arc min

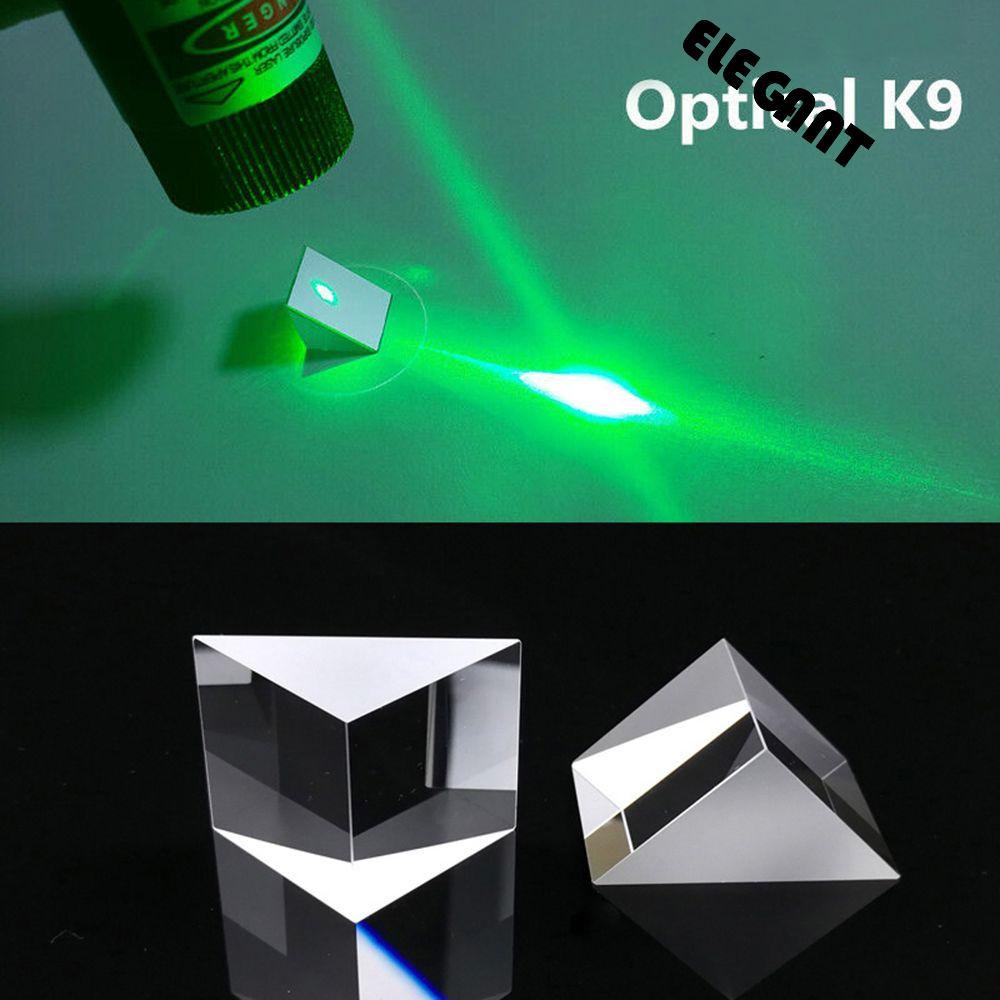

Material: H-K9 optical glass material

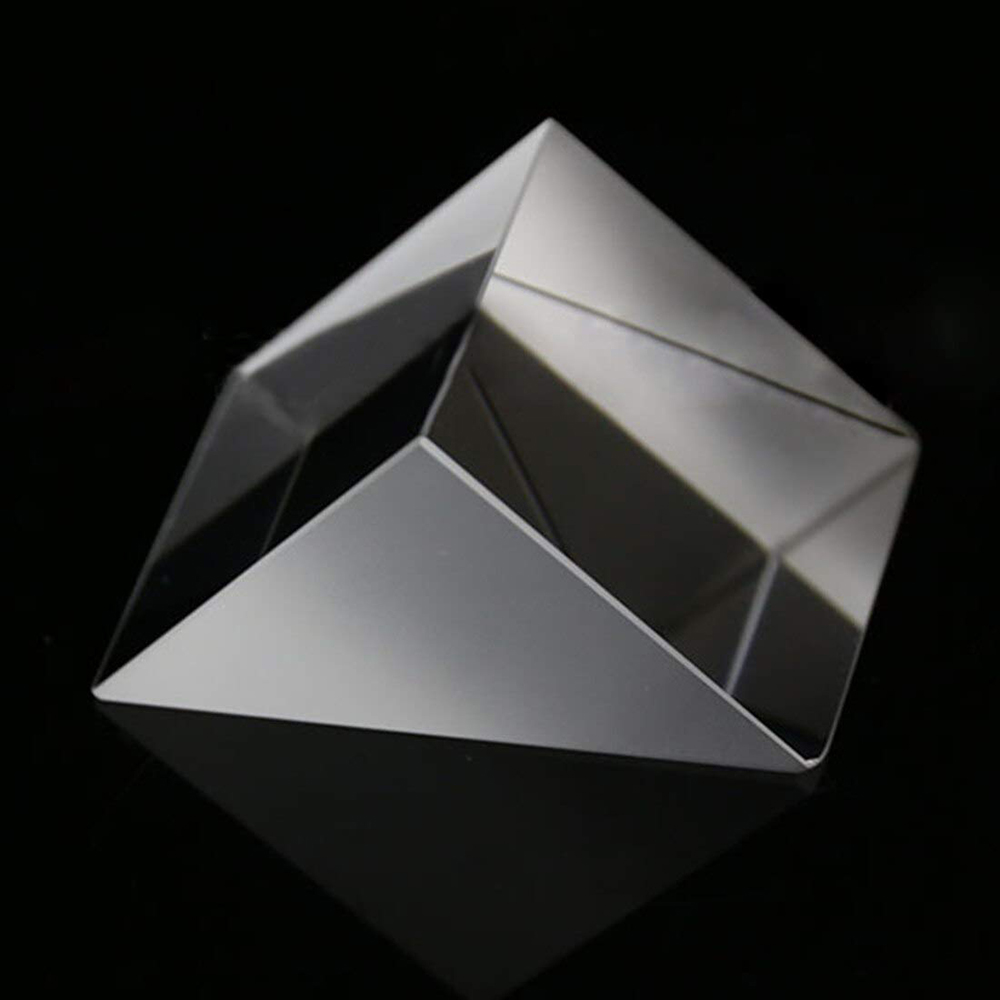

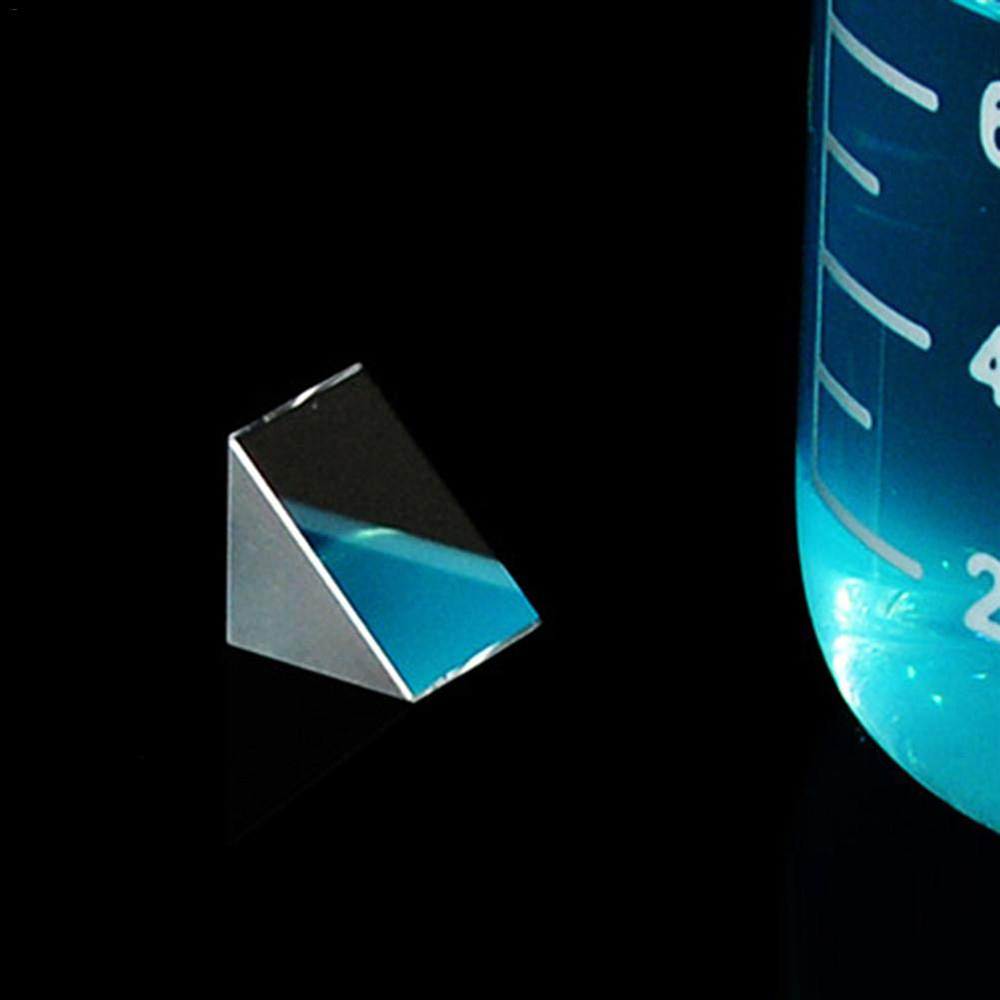

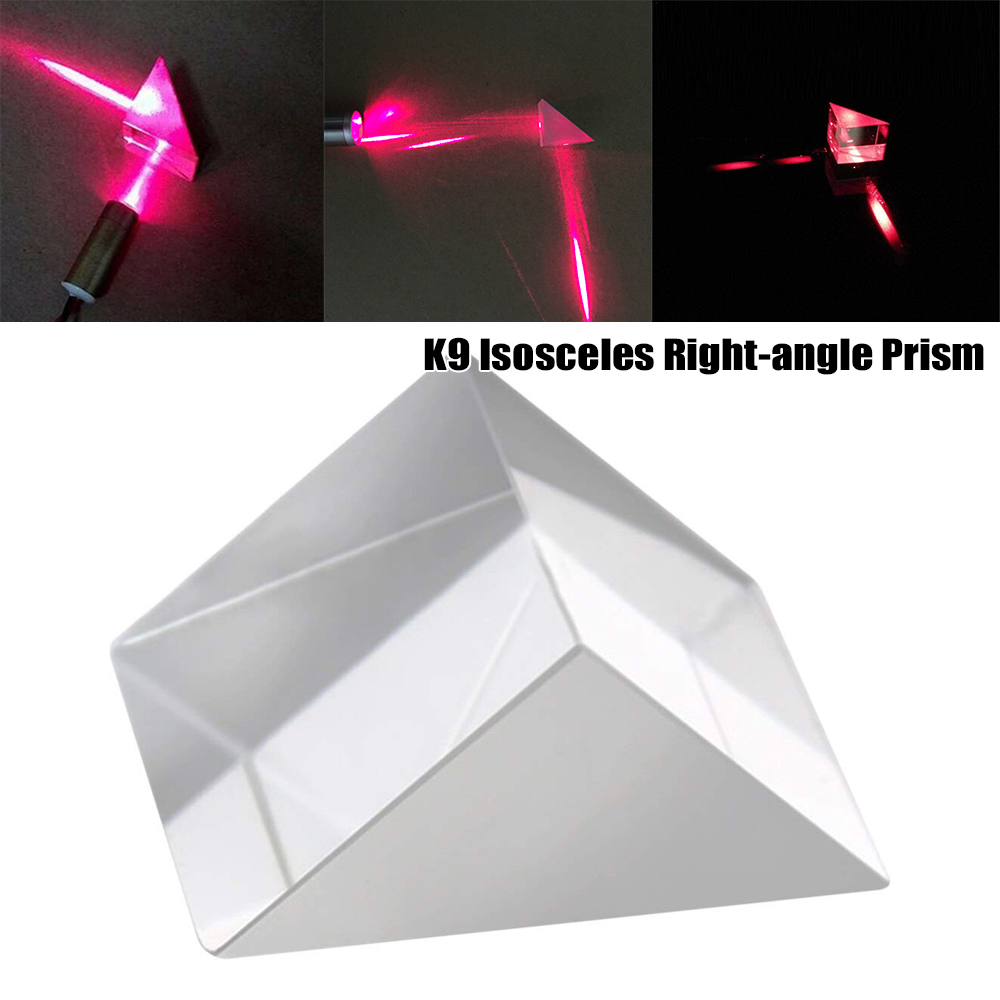

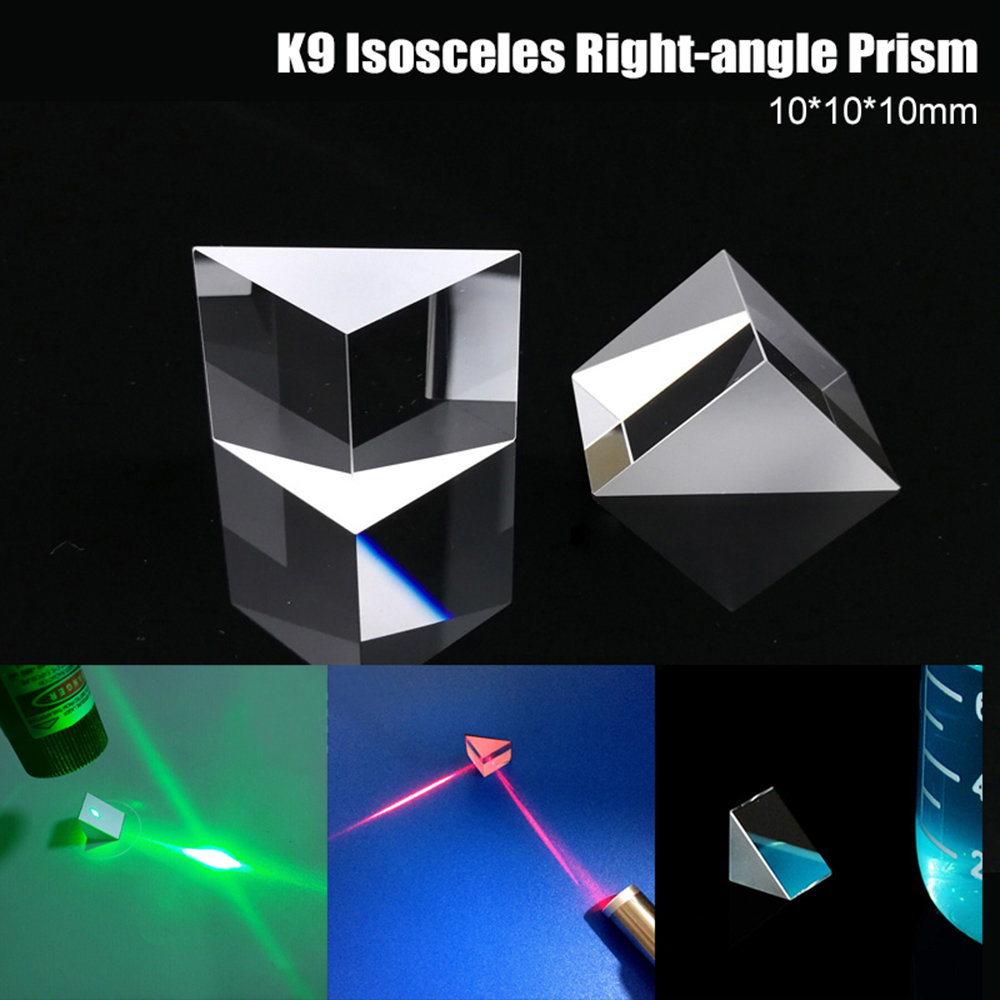

Packing Include: 1 * Isosceles Right Angle Prism
Effective aperture: >90%
Degree of finish: 40-20
Coating: Bevel: Partially reflective film
Uses: it is widely used in instrumentation, image tester, projector, vision system, mold word detection, automation equipment, etc.

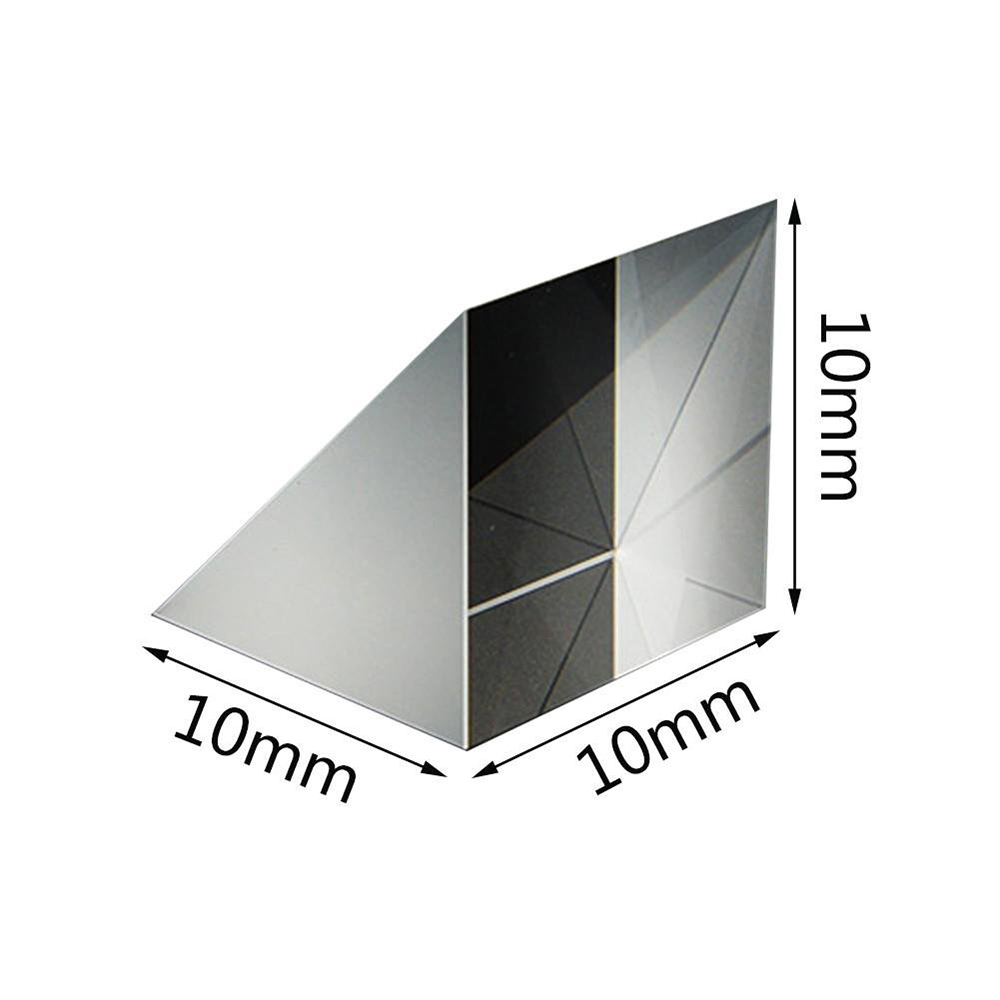

Size: about 10*10*10mm/0.39*0.39*0.39in
Dimensional tolerance: ±0.1MM
Incident surface, exit surface: antireflection film
Face type: /4

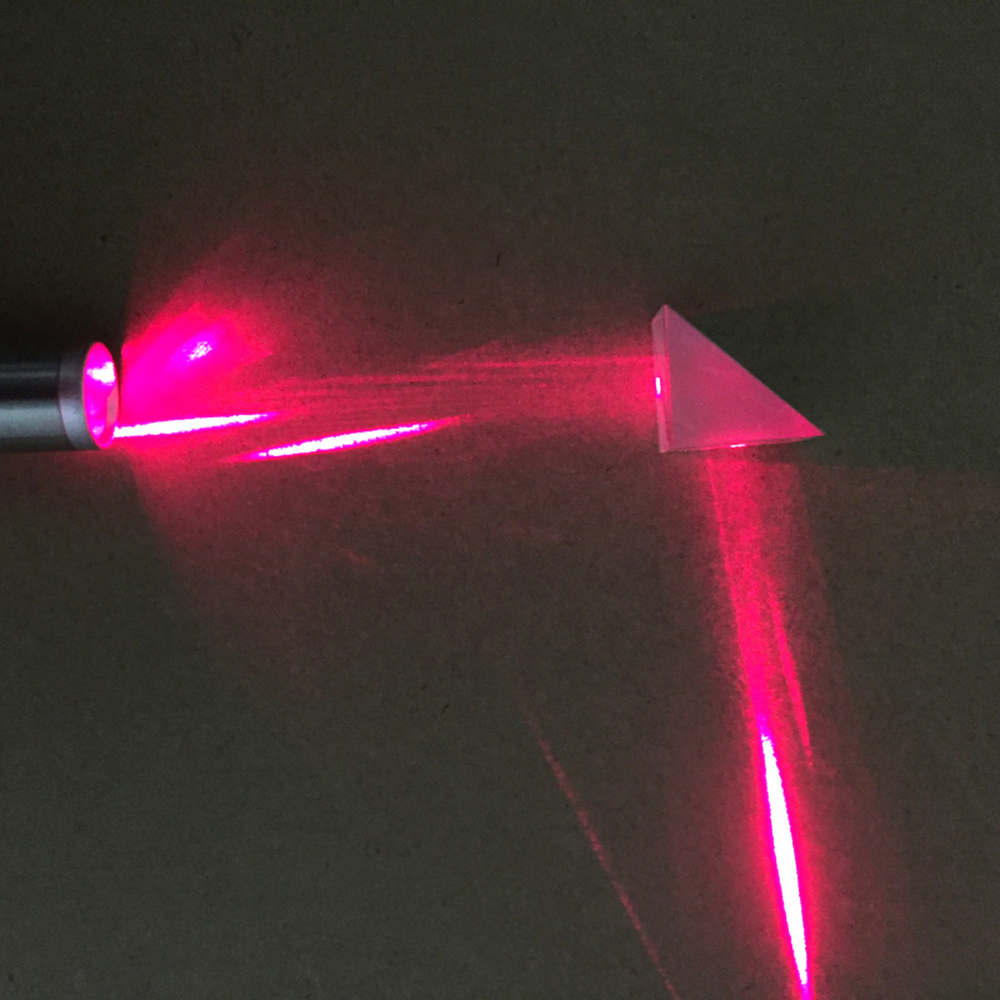

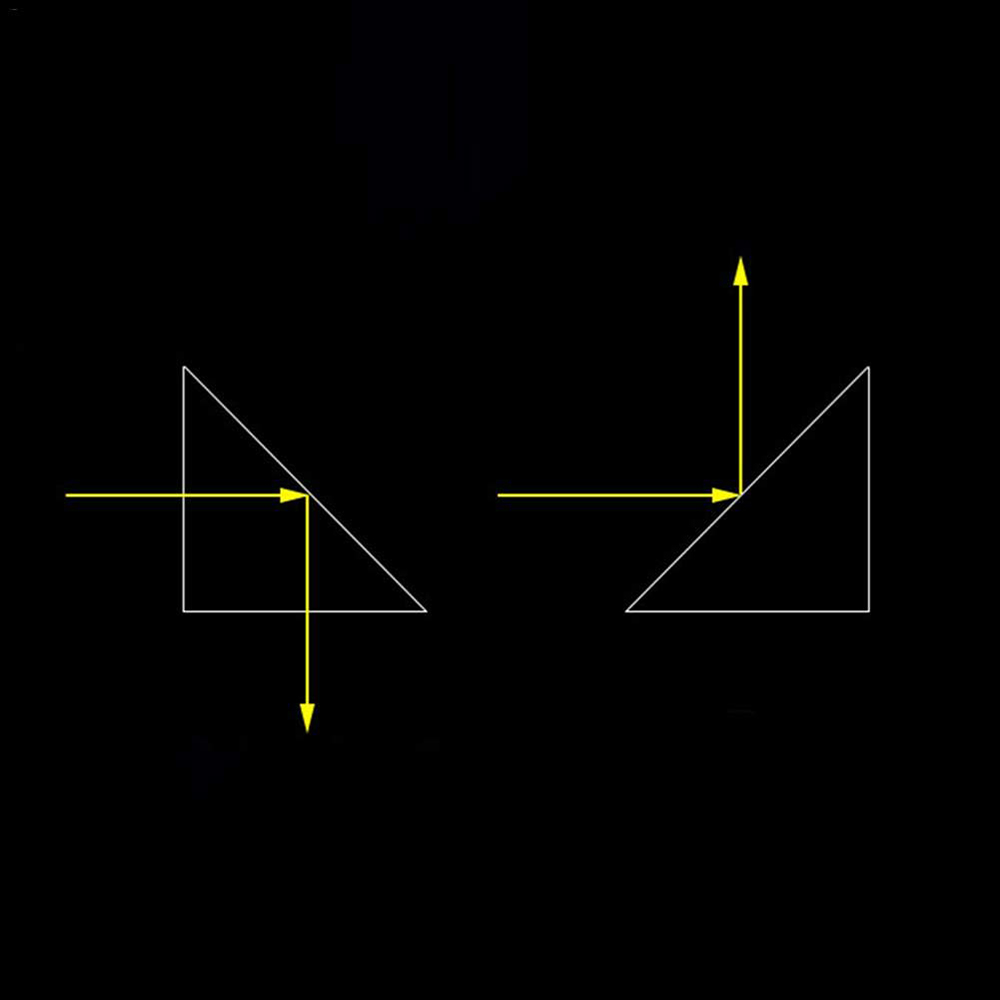

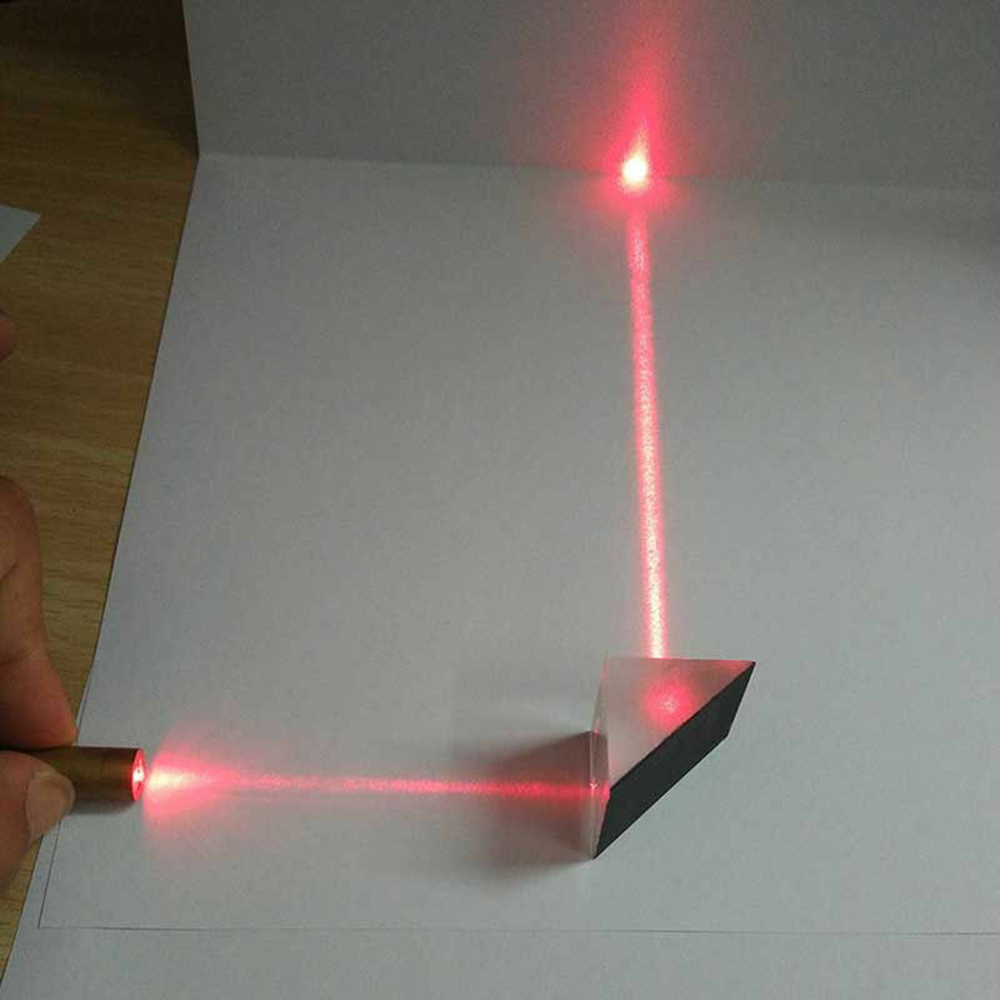

One of the basic functions of right-angle prisms is that it can efficiently total reflect internal incident light through critical angle characteristic.
When used right-angle prism, some optical films are usually plated.
Featuring a large contact area and a typical angle of 45° and 90°, it is easier to install than a normal mirror, and enjoys better stability and strength for mechanical stress. It is the best optics element for all types of devices and instruments
