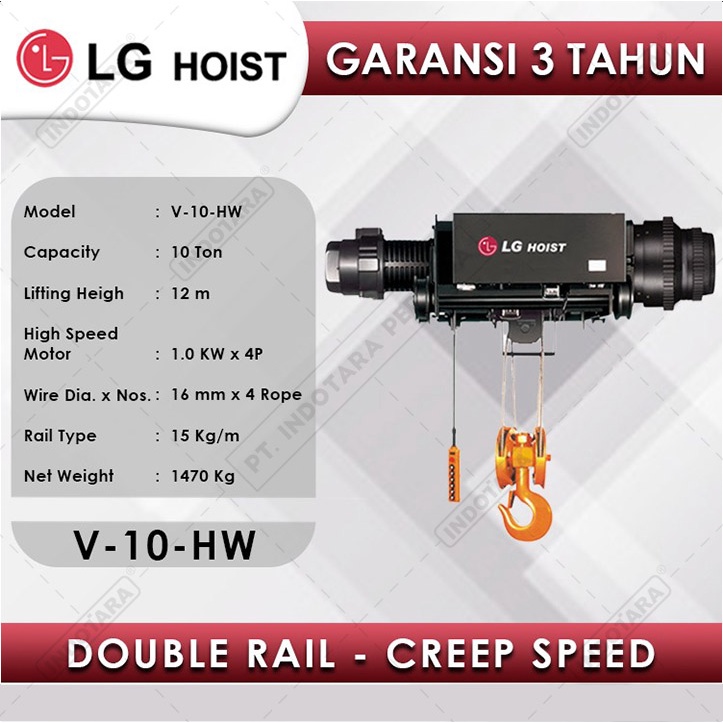

Electric Wire Rope Hoist LGM Double Rail Creep Speed 10Tx12m V-10-HW

Detail Electric Wire Rope Hoist LGM Double Rail Creep Speed 10Tx12m V-10-HW

Setiap hari buka termasuk hari minggu/libur, silahkan di pesan barangnya dan kami akan mengirimkan barang pesanan anda secepat mungkin.

LGM HEAVY DUTY WIREROPE HOIST, Made in Korea,

Licensed by MITSUBISHI HOIST, JAPAN
Type : V-10HW (Double Girder/Creep)
Capacity : 10 Ton
Lift : 12 M
Main Speed : 5.0 / 0.5 m/min
Main Motor : 12/2.4 Kw x 6/4 P
Trav. Speed : 15 m/min
Trav. Motor : 0.75 kW x 4P
Control : 48 VAC
Power : 380 VAC , 50 Hz
Wire rope construction : 6 x Fi(36)
Wire Rope Dia. & Reeving : Ø16 x 4 (4/2)
Rail Gauge : 1150mm
ISO Duty Class : M5
Overload protector : Digital Adjustable OLP with Buzzer

Features :
- Electrification by LS (LG Industrial Systems, Korea)
- 4 Layer Heavy Duty Polyurethane Coating by JOTUN, Norway
- Gearbox Material by Boschgotthardshūtte, Germany
- High Density Brake Lining from Burg, Germany
- High resistance die cast motor
- 2 step hoist limiting switch
- Hook Block with safety switch
- Control Box with overload system
- Simplified Hoist gear system
- Protective construction for drip proof
- ED 40% Duty Cycle with 400 no. of starting hour
- Braking System warranted 5 Years + Consumables
- Warranty : Mechanical 3 Years + Electrical 1 Year

Dapatkan produk-produk berkualitas tinggi dengan harga yang ekonomis.
Hati-hati barang tiruan, Produk yang asli hanya ada di PT. Indotara Persada.
