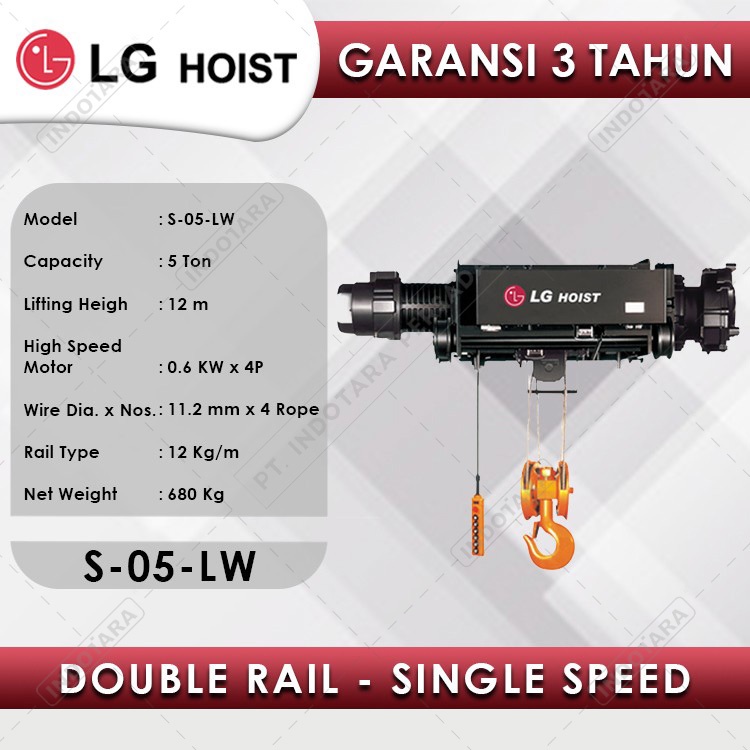

Electric Wire Rope Hoist LGM Double Rail Single Speed 5T x 12m S-05-LW

Detail Electric Wire Rope Hoist LGM Double Rail Single Speed 5T x 12m S-05-LW

Setiap hari buka termasuk hari minggu/libur, silahkan di pesan barangnya dan kami akan mengirimkan barang pesanan anda secepat mungkin

LGM WIREROPE HOIST , Made in Korea,
Licensed by MITSUBISHI HOIST, JAPAN
Type : S-05LW ( Double Girder )
Capacity : 5 Ton
Lift : 8 M
Hoist Speed : 6.7m/min
Hoist Motor : 7.5kW x 4P
Travel Speed : 15 m /min
Travel Motor : 0.6 kW
Control Voltage : 48 VAC
Power Supply : 380 VAC , 50 Hz
Wire rope construction : 6 x Fi (36)
Wire Rope Dia. & Reeving : Ø 11.2 x 4
ISO Duty Class : M5
Overload protector : Digital Adjustable OLP with Buzzer
Rail Gauge : 900mm

Features :
- Electrification by LS (LG Industrial Systems, Korea)
- 4 Layer Heavy Duty Polyurethane Coating by JOTUN, Norway
- Gearbox Material by Boschgotthardshūtte, Germany
- High Density Brake Lining from Burg, Germany
- High resistance die cast motor
- 2 step hoist limiting switch
- Hook Block with safety switch
- Control Box with overload system
- Simplified Hoist gear system
- Protective construction for drip proof
- Drip proof push button switch
- ED 40% Duty Cycle with 400 no. of starting hour
- Warranty : Mechanical 3 Years + Electrical 1 Year
