Electric Wire Rope Hoist 5 Ton Samsung Hoist SN7.5-H12-MH

Detail Electric Wire Rope Hoist 5 Ton Samsung Hoist SN7.5-H12-MH

Buka setiap hari termasuk hari minggu/libur, silahkan di pesan barang nya dan kami akan mengirimkan barang pesanan anda secepat mungkin.

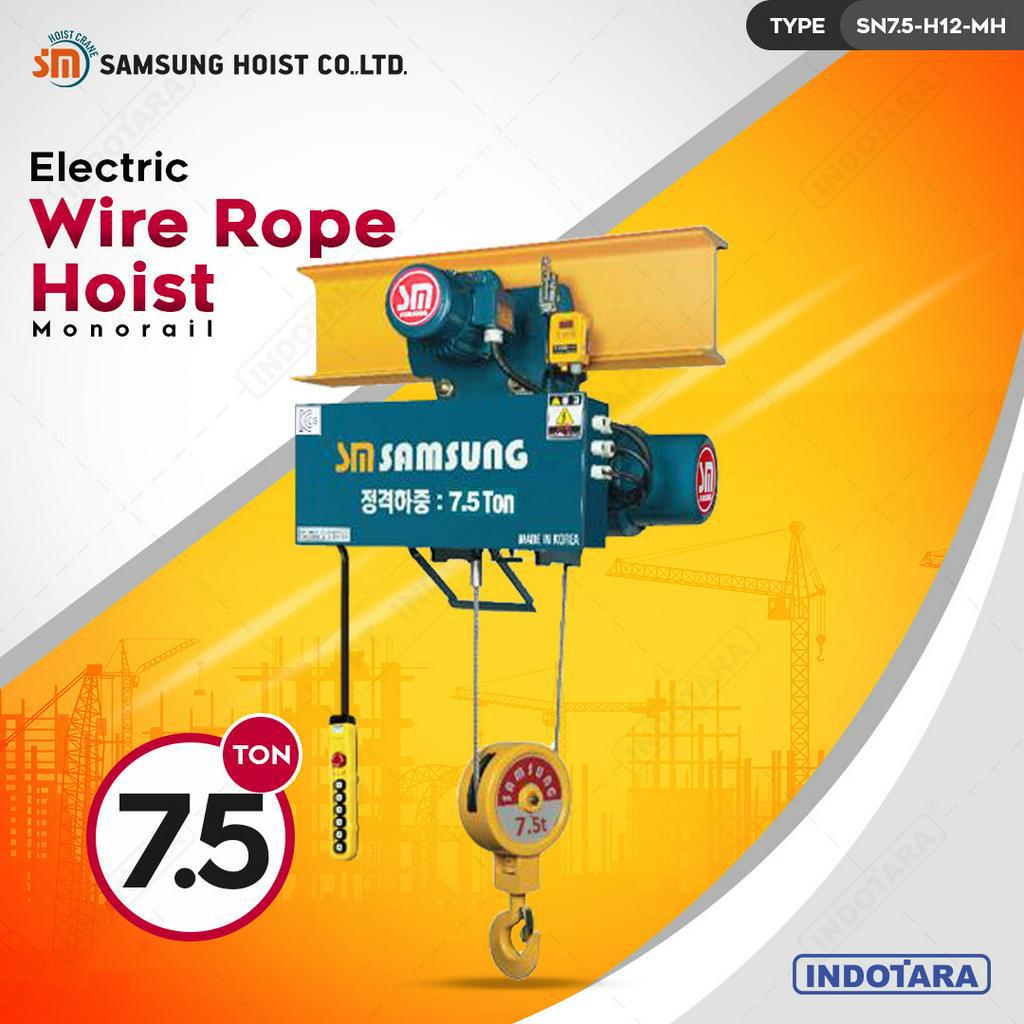

SAMSUNG HEAVY DUTY Wire rope Hoist, Made In Korea
• Type : SN7.5-H12-MH (Single Girder)
• Capacity : 7.5 Ton
• Lifting height : 12 mtr
• Hoisting Speed : 3.1 m/min
• Hoist Motor : 5.5 Kw x 6 P
• Traversing Speed : 12.5 m/min
• Traversing Motor : 0.75 Kw x 4 P x 1
• Control : 48 VAC (Safe for Human)
• Power : 3Ph/380VAC, 50 Hz
• Wire rope Construction : 6 x (fi)37
• Wire rope Diameter : Ø14 mm
• Wire rope Reeving : 4/2
• Width of I-Beam : 100 - 150mm
• Min. Curve Radius : For Straight Only
• Overload protector : Digital Adjustable OLP with Buzzer
• ISO Duty Class : M5
Features :
+ Electrification by LS (LG Industrial Systems, Korea)
+ Heavy Duty Polyurethane Coating by Jotun, Norway
+ Superb Gear Material by Hitachi Alloy, Japan
+ High Density Brake Lining by BURG, Germany
+ 2 step hoist limiting switch
+ Anti-Sag 200% Braking Capability
+ Control Box with Adjustable Overload Prevention
+ System Simplified Hoist gear system
+ Protective construction for drip proof
+ Drip proof push button switch
+ ED 40% Duty Cycle with 400 no. of starting/hour
+ Warranty : Mechanical 3 years + Electrical 1 year
