ELECTRIC DROP BOLT / DROP BOLT / ELECTRIC LOCK 2 KABEL 0,3,6 DETIK

Detail ELECTRIC DROP BOLT / DROP BOLT / ELECTRIC LOCK 2 KABEL 0,3,6 DETIK

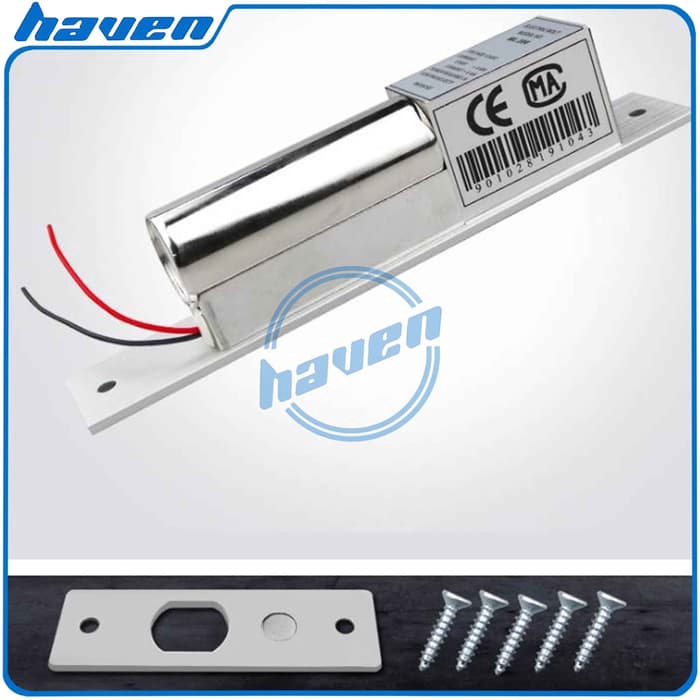

Deskripsi ELECTRIC DROP BOLT / DROPBOLT LOCK with BRACKET BESAR
ELECTRIC DROP BOLT / DROPBOLT LOCK with BRACKET BESAR

Drop Bolt with Sensor adalah kunci elektrik yang menggunakan bolt system.
Dropbolt memungkinkan pintu dapat digerakkan 2 arah sehingga banyak digunakan
pada pintu entrance utama. Dropbolt ini telah dilengkapi dengan internal sensor
yang dapat mendeteksi status pintu sehingga cocok untuk diintegrasikan dengan
sistem pengamanan gedung / rumah

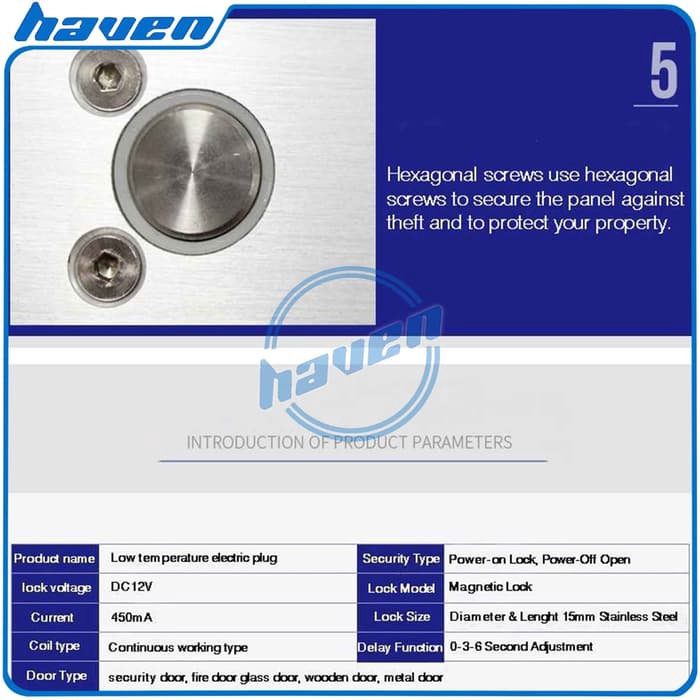

Specification :

Dual Voltage : DC12V
Current Draw : Start 900Ma Standby 100mA

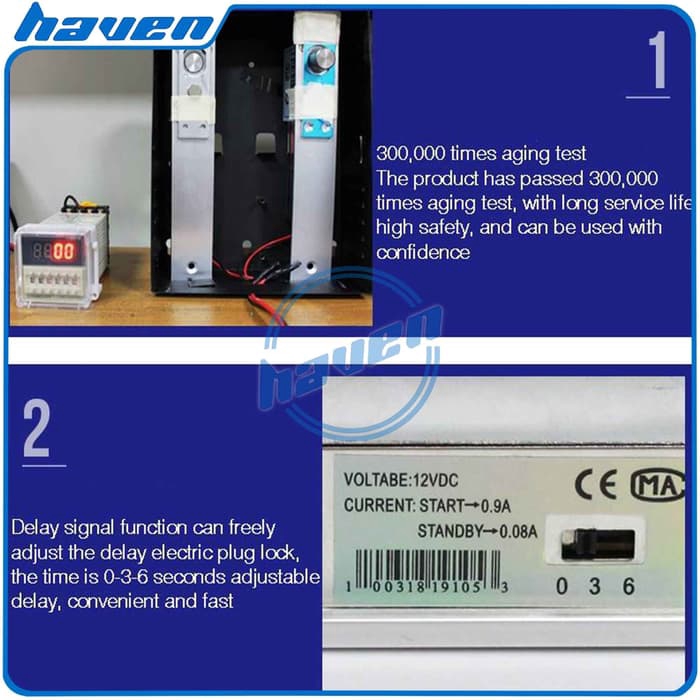

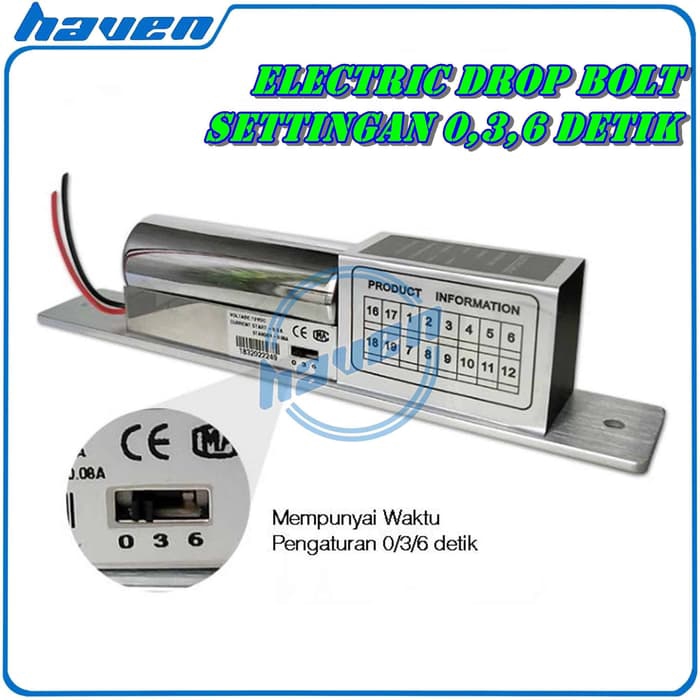

Time : 0/3/6sec.(optional)
Signal Output : Door status sensor
Fail Safe : Unlocked when unenergized
Safety function : Built-in voltage spike suppressor
Performance Testing : five hundred thousand times aging test
Patent Designed : Low temperature
Opening Mode : 180 degree swinging door
Suitable For : Wooden Door, Glass Door, Metal Door, Fire Proof Door

Built-in door open or door close state detection output point (250mA: N.C./
N.O.).
Special wearable design. Mechanic life of more than 1,000,000 times.
Fail-safe type and MOV surge protection.
Micro computer door position detection and current control to prevent error
action and lower the lock's temperature.

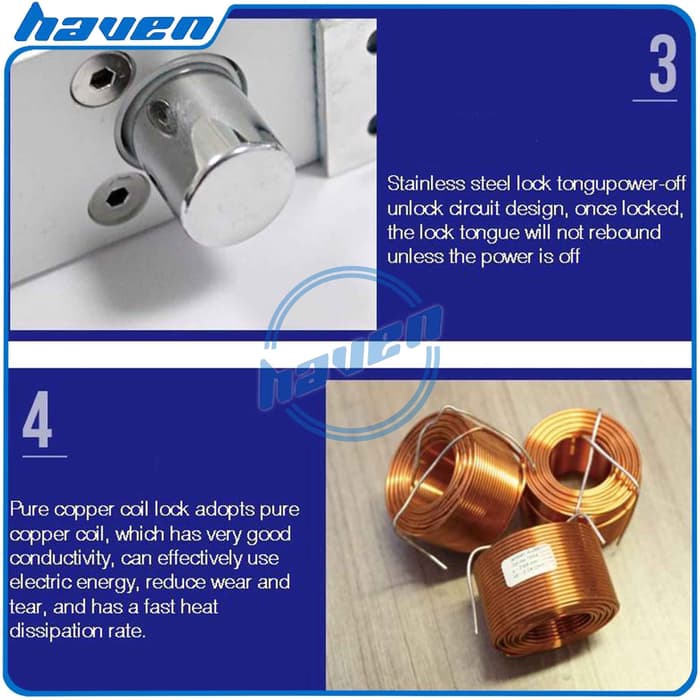

Stainless steel bolt is able to sustain more than 1200 kg of shear force.
Suitable for all types of 180 door.
Door lock delay time: 0/ 2.5/ 5seconds available to set.
Built-in photo couplers door open push button input contact. Door will lock
again automatically when door is not open within 5 seconds.
Operation temperature: 0~90 ; Humidity: 85%Rh max.
Dimensions:
Body: 200mm(L) x 32mm(W) x 42mm(D)
Strike plate : 90mm(L) x 26mm(W) x 2.5mm(D)
Bolt : 16mm(Throw) x 15.5mm(Diameter)
Weight : 650 Gram

Gambar produk
