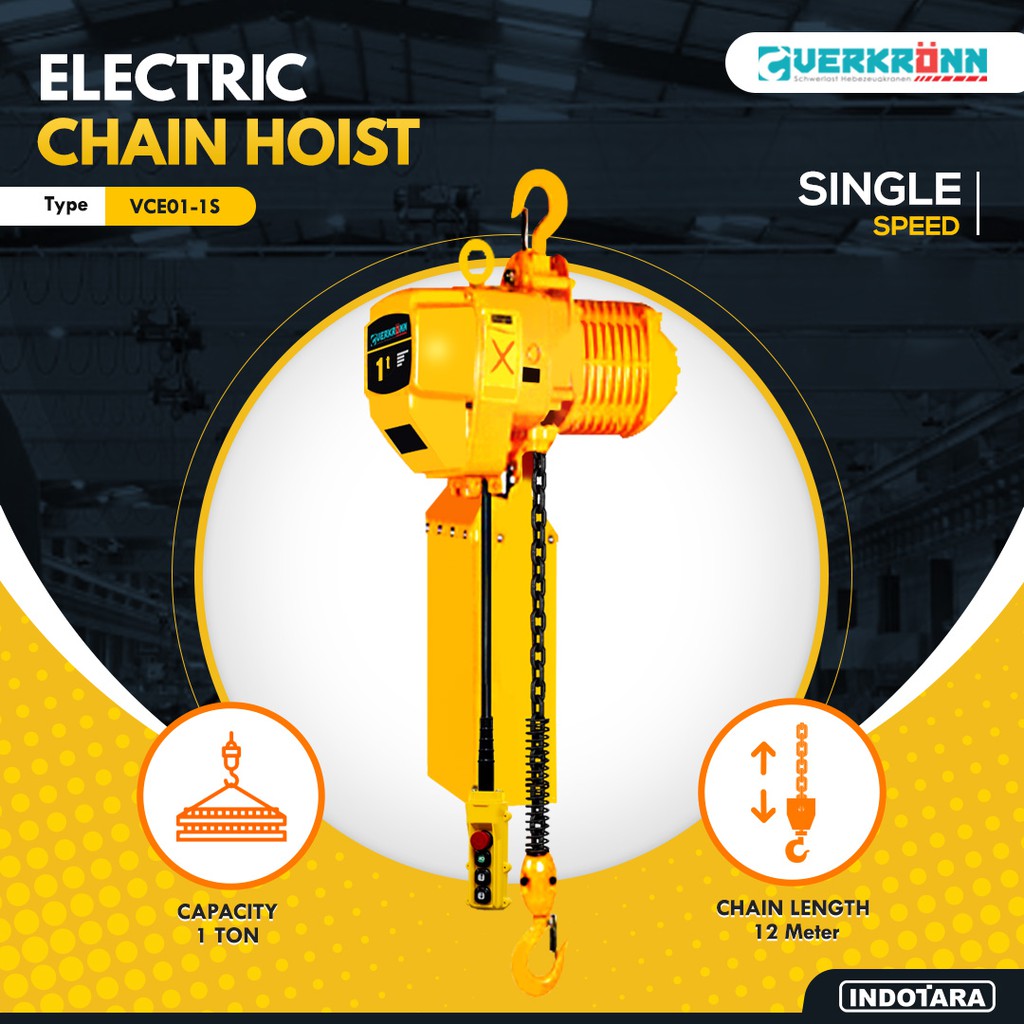

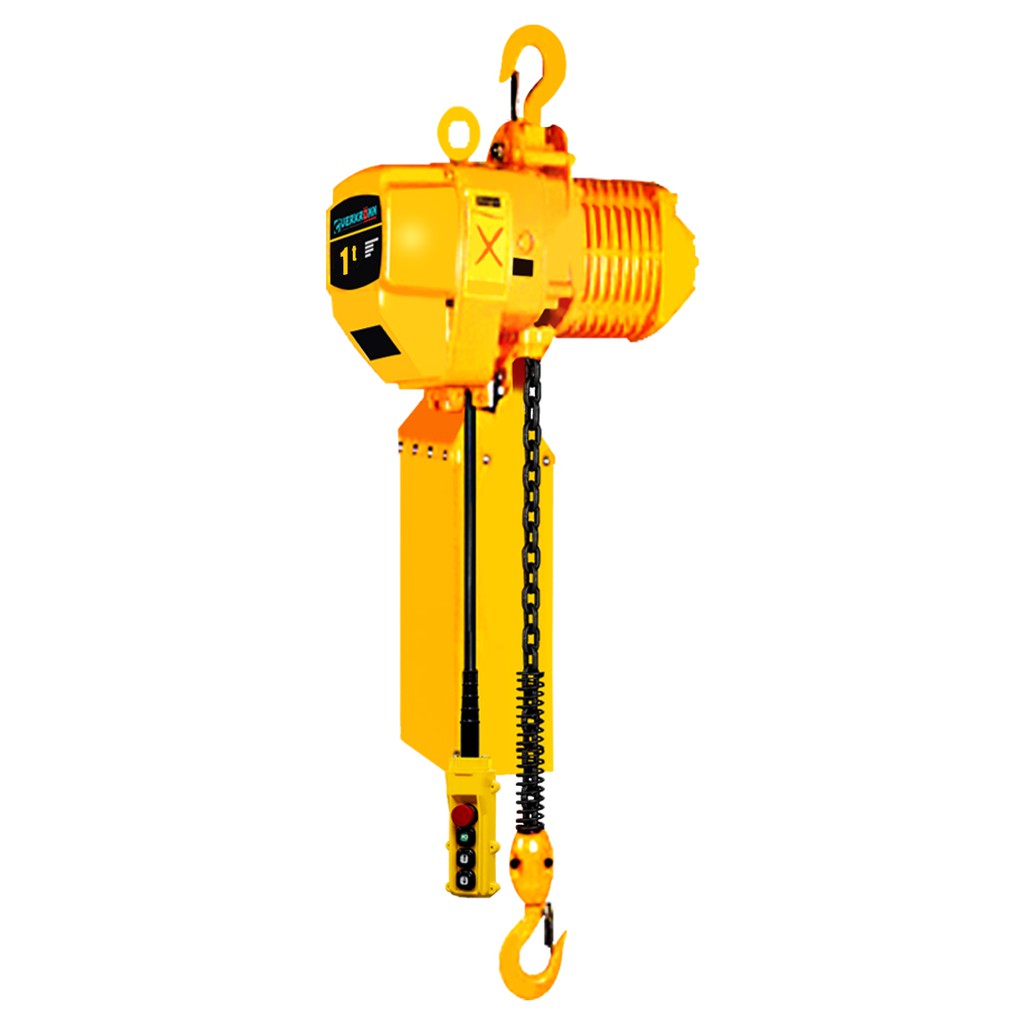

Electric Chain Hoist Verkronn VCE01-1S

Detail Electric Chain Hoist Verkronn VCE01-1S

Buka setiap hari termasuk hari minggu/libur, silahkan di pesan barang nya dan kami akan mengirimkan barang pesanan anda secepat mungkin.


VERKRONN Heavy Duty Electric Chain Hoist, Taiwan.

Type : VCE01-01S
Capacity : 1 Ton (Pure Capacity)
Lifting Height : 6 Meter, 8 Meter, dan 12 Meter
Hoisting Speed : 6.6 (m/min)
Hoist Motor : 1.5 kW
Rotation Speed (r/min) : 1440
Insulation Grade : F
Control Voltage : 48Vac (Safe for Human)
Power Supply : 380V/50Hz
No. of Chain Falls : 1
Load Chain Size : Ø7.1mm
Net Weight : 61Kg
Pendant : 2 point (U;D)
Emergency Stop : Including on P/B

Features :

+ SCHNEIDER Electrification.
+ Chain Container operation fabricated available for long lift applications.
+ Heavy Duty Hoist Motor with Cooling Fin
+ Safe Brake System
+ Upper and Lower Limit Switch
+ Inverse Phase Sequence Protecting Device
+ Load Sheave / Reduce Vibration
+ Load Chain FEC Ultra head-treatable alloy steel chain, Made in Japan.
+ Load hook carbon steel with heavy-duty hook latch.
+ Push Button Control Compact Design, Rated IP55 protection.
+ Wireless remote control can be assembled.
+ Warranty : Mechanical 3 Years + Electrical 1 Year
+ 20 Years Warranty of Original Component Availability"

#Harga diatas sudah termasuk PPn
#Kami akan menerbitkan faktur pajak setelah transaksi

Gambar produk
