(Ele) Splitter Poe Usb 48v Ke 5v Power Over Ethernet 802.3af Warna Putih Untuk Raspberry

Detail (Ele) Splitter Poe Usb 48v Ke 5v Power Over Ethernet 802.3af Warna Putih Untuk Raspberry

Welcome to whitebright🎉🎉🎉

Note:
The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation.

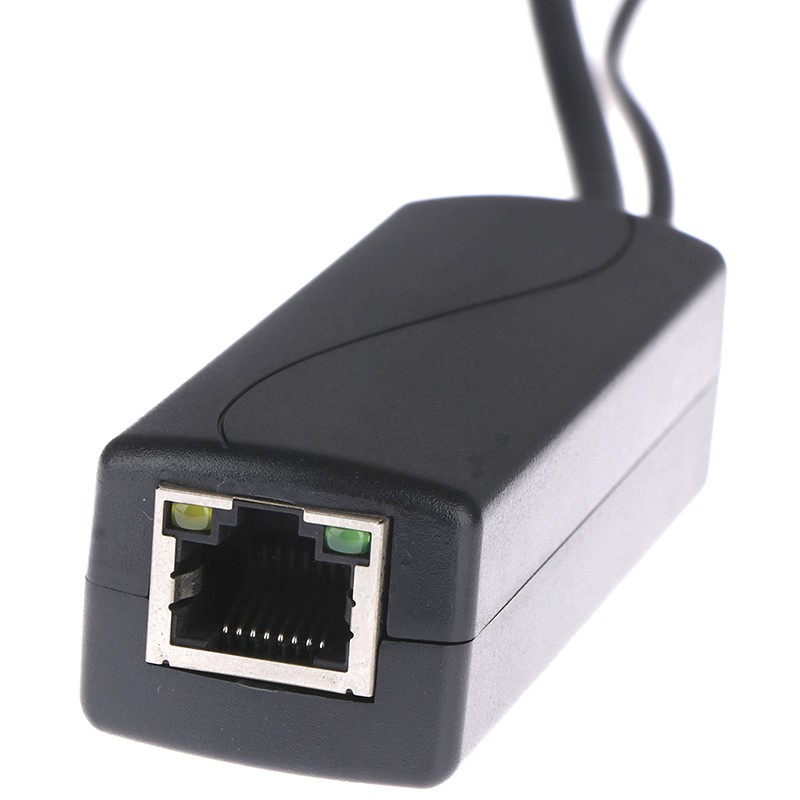

RJ45 female INPUT Port:
Support the IEEE 802.3af/at the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter

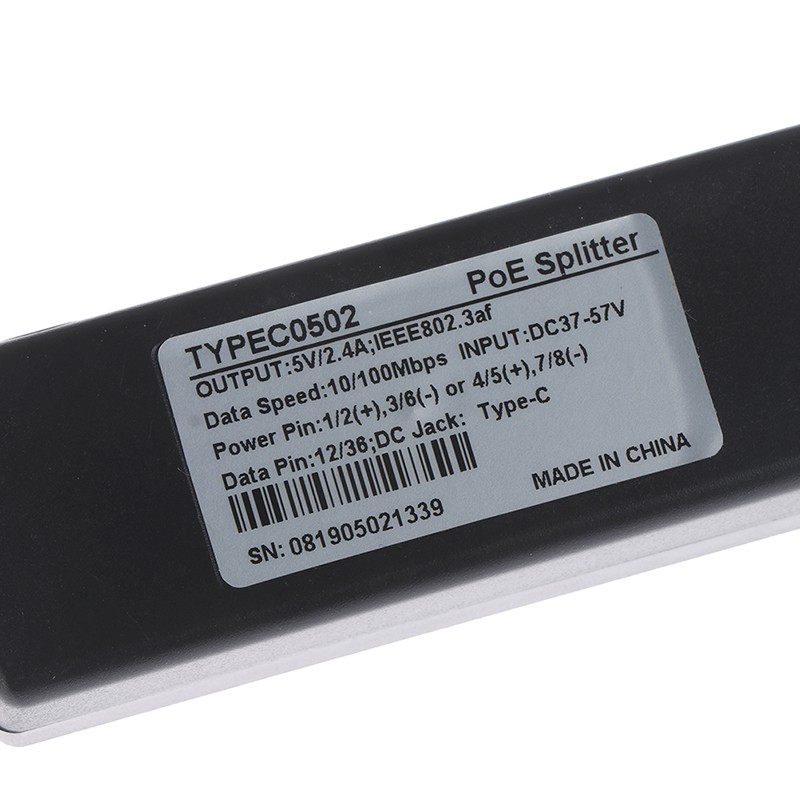

Specification:
Compliant with IEEE802.3af/at
Isolation: 2.5kV
Power Input: DC44~57V
Power Output: DC5V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male

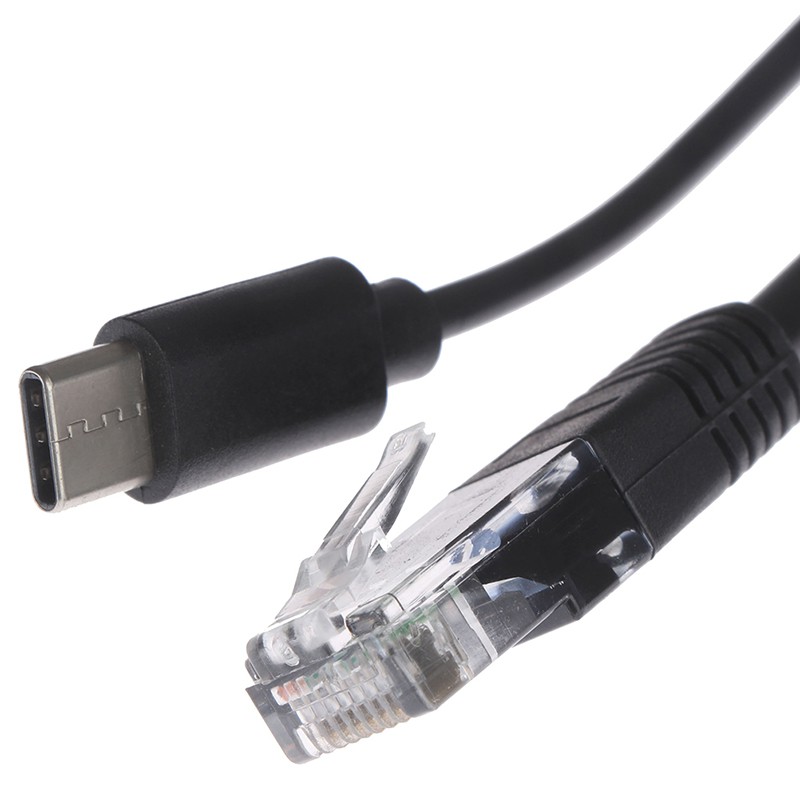

Power Output Port: USB TYPE-C Power Plug
Data Transfer Rate: 10/100Mbps
Data Pin: RJ45 pin 1236
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length：165mm
RJ45 Modular Plug cable length：155mm
Weight : 55g
Operation Temperatue:-20℃ ~ 45℃
Storage Temperature:-30℃ ~ 70℃
Item Included:
10/100Mbps Active PoE Splitter(USB type-C Power Plug) x1

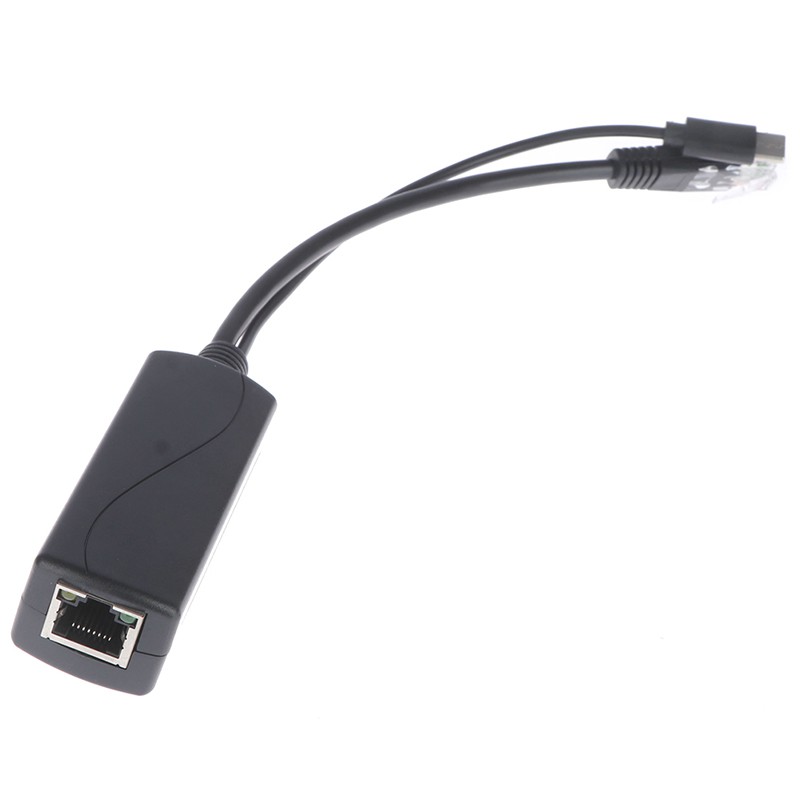

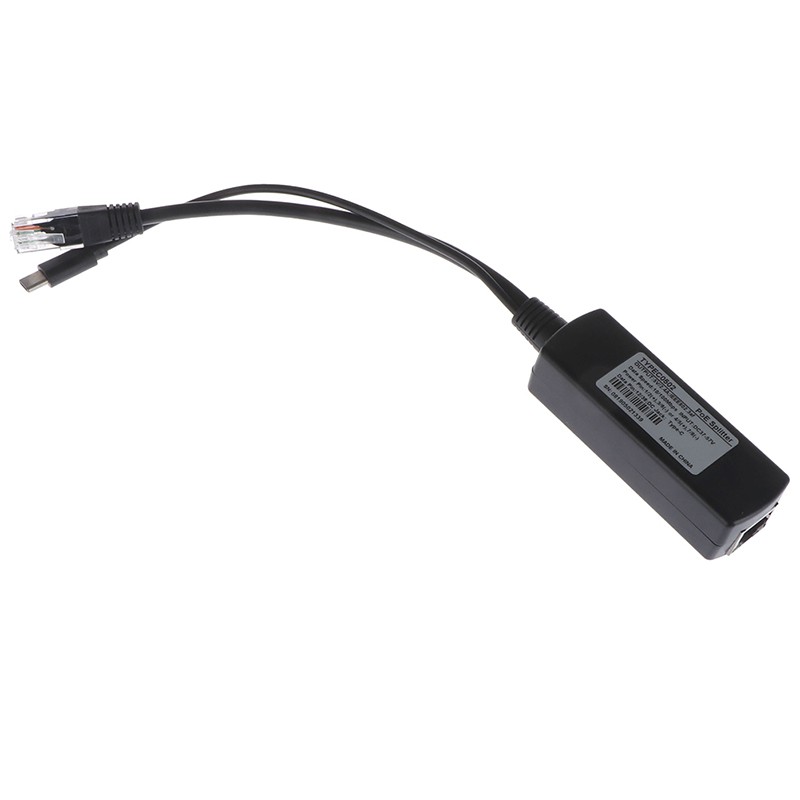

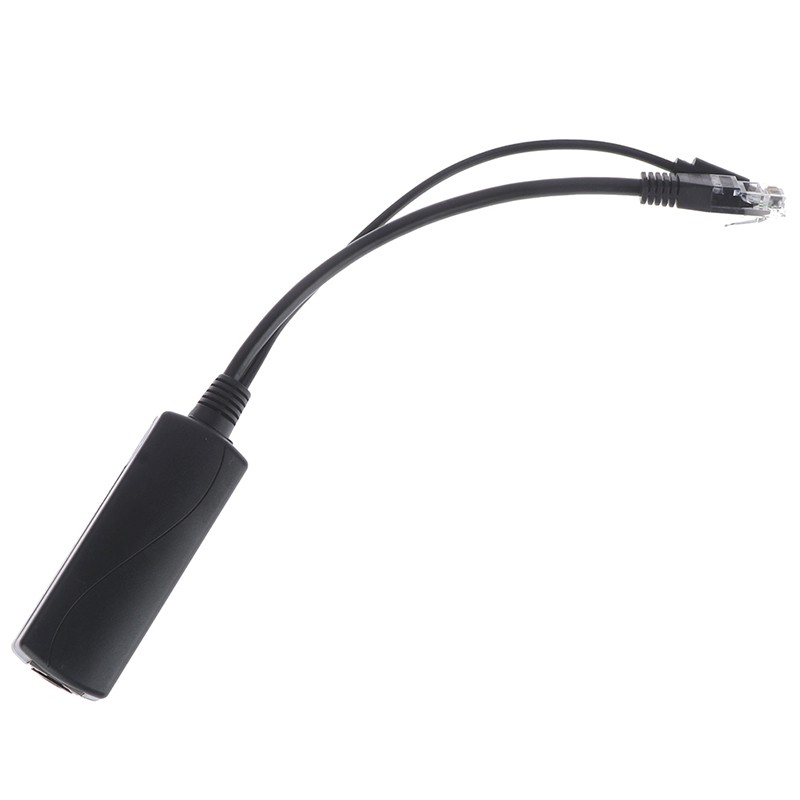

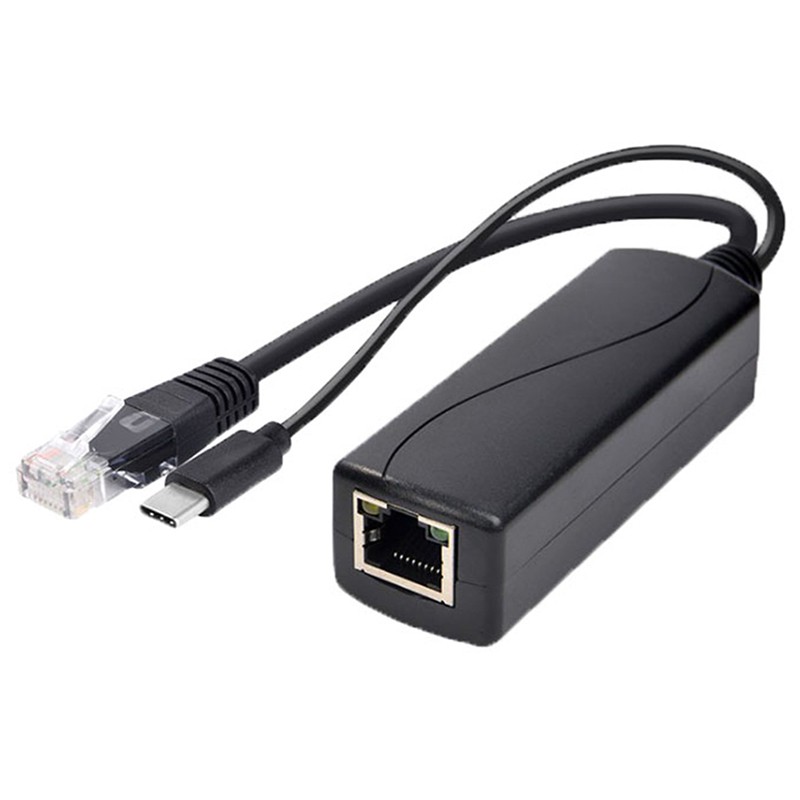

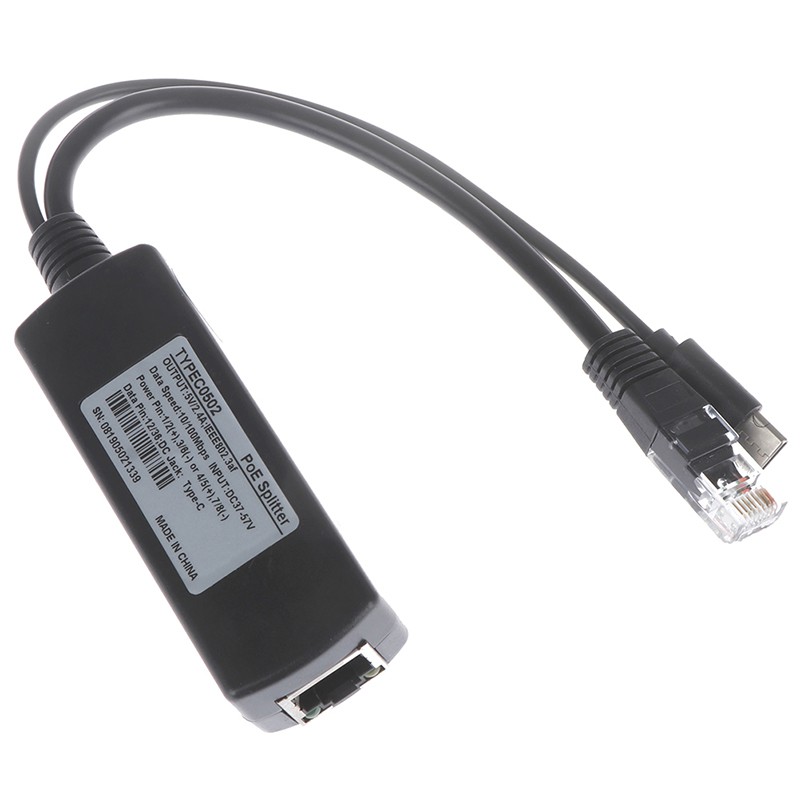

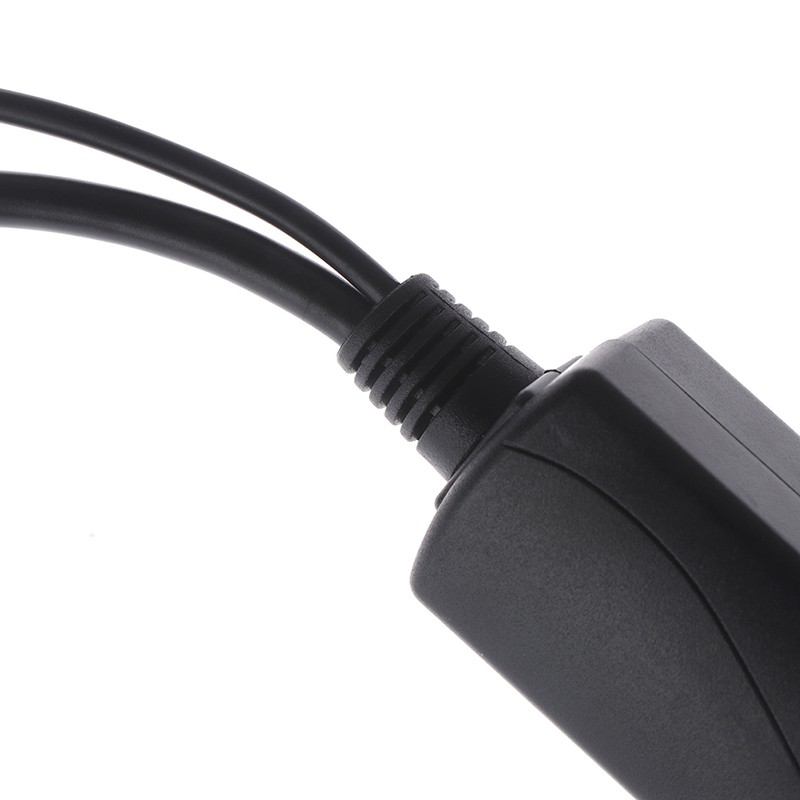

Gambar produk
