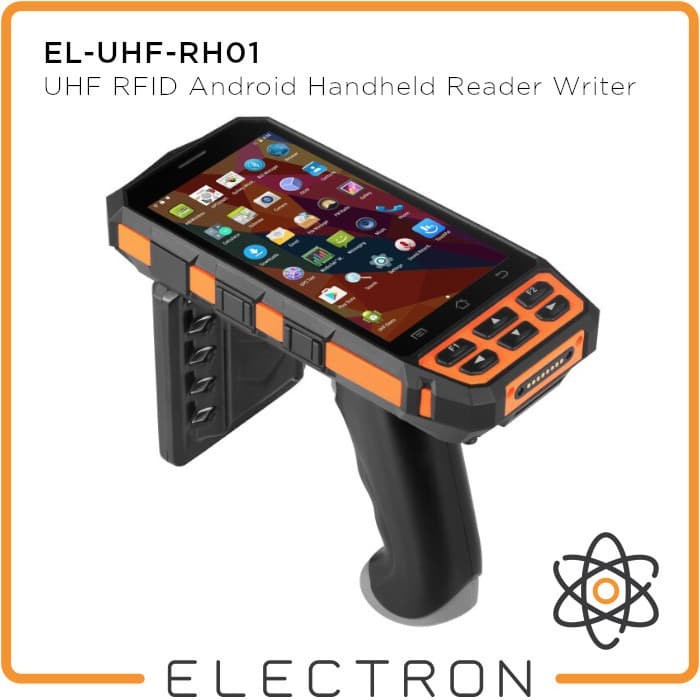

EL-UHF-RH01 UHF RFID Android Handheld Reader Writer Long Range 4G 3G

Detail EL-UHF-RH01 UHF RFID Android Handheld Reader Writer Long Range 4G 3G

Electron EL-UHF-RH01
--
Dimensi: 173 x 150 x 85 mm
Berat unit + baterai: 660 gram
Display: Gorilla 5.0 inch TFT-LCD (720x1280) Touch Screen
Keypad: 3 TP Keys, 6 function Keys, 4 side buttons
Baterai: Li-ion Polymer 3.7V 8100mAh

CPU: Quad A53 1.3GHz Quad-core
OS: Android 7.0
Storage: 16GB ROM, MicroSD Slot
Ram: 2GB

Temperatur Kerja: -20˚C hingga +50˚C
Temperatur Peyimpanan: -20˚C hingga +70˚C
Kelembaban: 5% RH hingga 95% RH (non-condensing)
Drop Specification: 1.5m drop to concrete
Sealing: IP65, IEC Compliance

Development Environment
Language: Java
Environment: Android Studio / Eclipse

Data Communication
WWAN:
- TDD-LTE Band 38, 39, 40
- FDD-LTE
- WCDMA (850/1900/2100MHz)
- GSM/GPRS/Edge 850/1800/1900MHz
WLAN 2.45GH / 5GHz Dual Frequency, IEEE 802.11 a/b/g/n
GPS: A-GPS, accuracy of 5m

Camera: 8.0 Megapixel
Lens: Auto-focus with LED Flash

RFID Reader:
Frequency: UHF 902-928MHz
Protocol: ISO18000-6C (EPC Gen 2)
Antenna Gain: 3dBi Circular
R/W Range: 5-7m

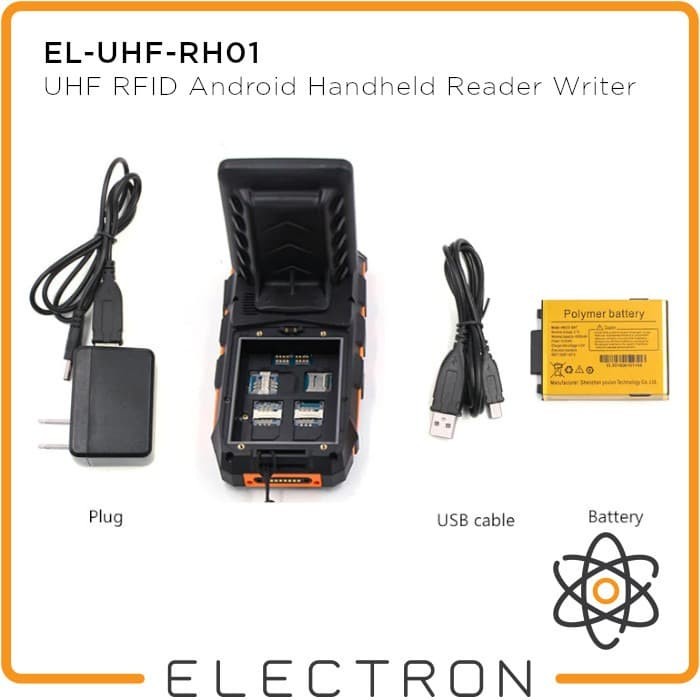

Accessories:
1 x Power Supply
1 x Li-Po Battery
1 x DC Charging Cable
1 x Mini USB Data Cable

Gambar produk
