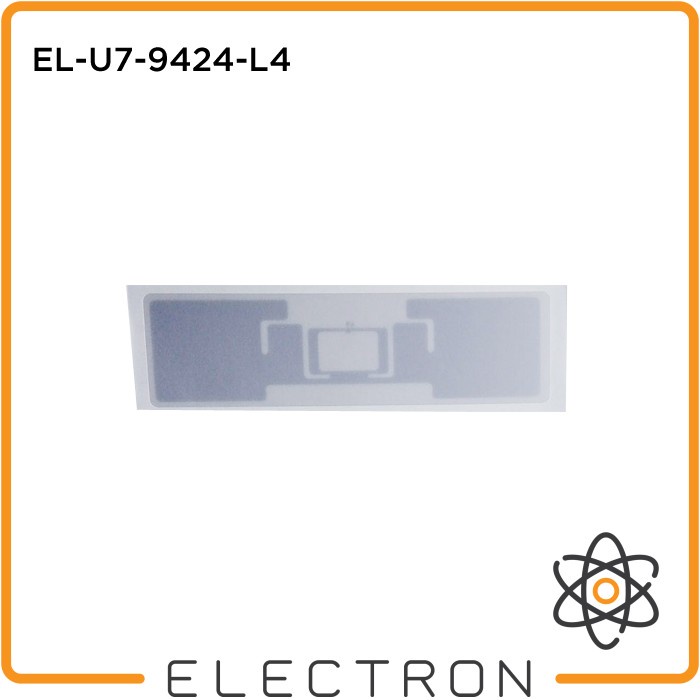

9424 Sticker UHF RFID Tag EPC Gen2 Wet Inlay Windshield Paper Label
Deskripsi singkat
Komputer & Aksesoris > Peralatan Kantor > Peralatan Kantor Lainnya > EL-U7-9424-L4 UHF RFID Paper Label Sticker EPC Gen2 v2.0 ISO18000-6C
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail 9424 Sticker UHF RFID Tag EPC Gen2 Wet Inlay Windshield Paper Label
Electron EL-U7-9424-L4--
Harga untuk 1 pcs. Tidak ada minimum order.

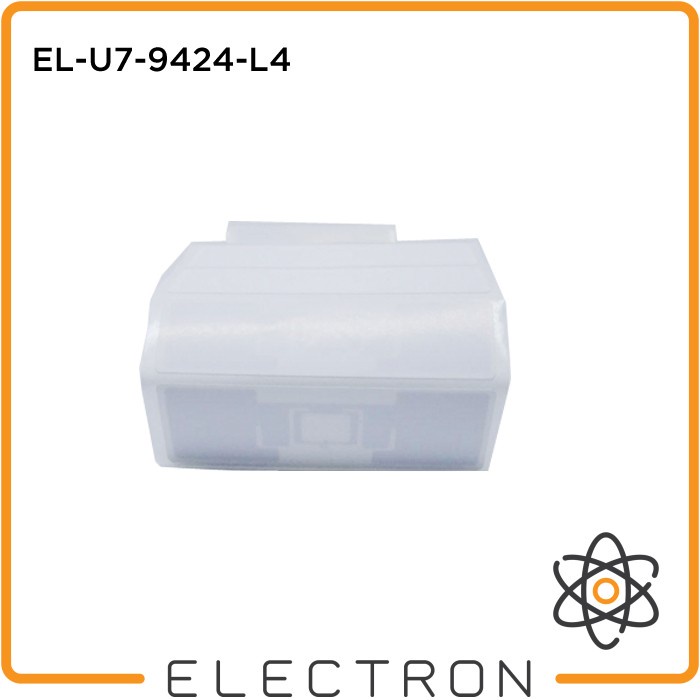

Isi 1 roll bisa disesuaikan dengan kebutuhan.
Chip: NXP UCODE 7 (U7)
Antenna: 9424
Protocol: ISO / IEC 18000-6C (EPC Class 1 Gen 2)
Frekuensi: 860 – 960 MHz
Material Sticker: Paper Label
Material Antenna: Etched Aluminum
Ukuran sticker: 98 mm x 27 mm +- 0.5mm
## Features
- Read sensitivity -21 dBm
- Write sensitivity -16 dBm
- Parallel encoding mode: 100 items in 60 ms
- Encoding speed: 16 bits per millisecond
- Innovative functionalities
- Tag Power Indicator
- Pre-serialization for 96-bit EPC
- Integrated Product Status Flag (PSF)
- Compatible with single-slit antenna
- Up to 128-bit EPC
- 96-bit Unique Tag Identifier (TID) factory locked, including 48-bit unique serial number
- EPC Gen2 v2.0 ready
Memory
- Up to 128-bit of EPC memory
- Supports pre-serialization for 96-bit EPC
- 96-bit Tag IDentifier (TID) factory locked
- 48-bit unique serial number factory-encoded into TID
- No User Memory
- 32-bit kill password to permanently disable the tag
- 32-bit access password
- Wide operating temperature range: -40 °C up to +85 °C
- Minimum 100.000 write cycle endurance
Gambar produk
