EL-SAM-R01-D8 USB NFC Reader 4 SAM Card Slot PSAM Payment 13.56 MHz RFID

Detail EL-SAM-R01-D8 USB NFC Reader 4 SAM Card Slot PSAM Payment 13.56 MHz RFID

Electron EL-SAM-R01-D8
--
NFC Reader yang memiliki 4 buah SAM Card Slot. Cocok untuk integrasi dengan sistem smart card, E-KTP, dll yang membutuhkan integrasi dengan SAM.

Reader ini support kartu ISO 14443 Type A dan Type B, Mifare, FeliCa, ISO 18092, dll.

Hubungi kami untuk SDK dan dokumentasi produk ini.

# Spesifikasi

Supported OS: Windows, Linux, MacOS, Android

## Fisik

Dimensi: 128mm (L) x 88mm (W) x 18mm (H)
Warna: Hitam
Berat: 260g
Suhu operasional: 0°C -- 50°C
Kelembaban operasional: 5% -- 93% RH Non Condensing

## Power

Sumber: Kabel USB
Tegangan: 5V
Arus: maks 300 mA

## USB Interface

Protokol: USB CCID
Pin: +5V, GND, D+, D-
Connector Type: Standard Type A
Speed: USB Full Speed (12 Mbps)
Panjang kabel: 1.5 meter
API: PC/SCBuilt-in Peripherals
Buzzer: Monotone

## Contactless Smart Card Interface

Standard: ISO-14443 A & B part 1-4, ISO-18092
Protocol: Mifare® Classic Protocols, MiFare Ultralight EV 1, T=CL, FeliCa
Operating Distance: <= 50 mm
Operating Frequency: 13.56 MHz

## NFC Interface

Standard: ISO-I8092, LLCP, ISO14443
Protocol: Active Mode, LLCP, SNEP, ISO 14443 T=CL Type A, Card Emulation
Operating Distance: <= 30 mm
Operating Frequency: 13.56 MHz

## SAM Card Interface

Number of Slots: 4 Slots
Standard: ISO/IEC 7816 Class B (3V)
Protocol: T=0; T=1
R/W Speed: 9,600-420,000 bps

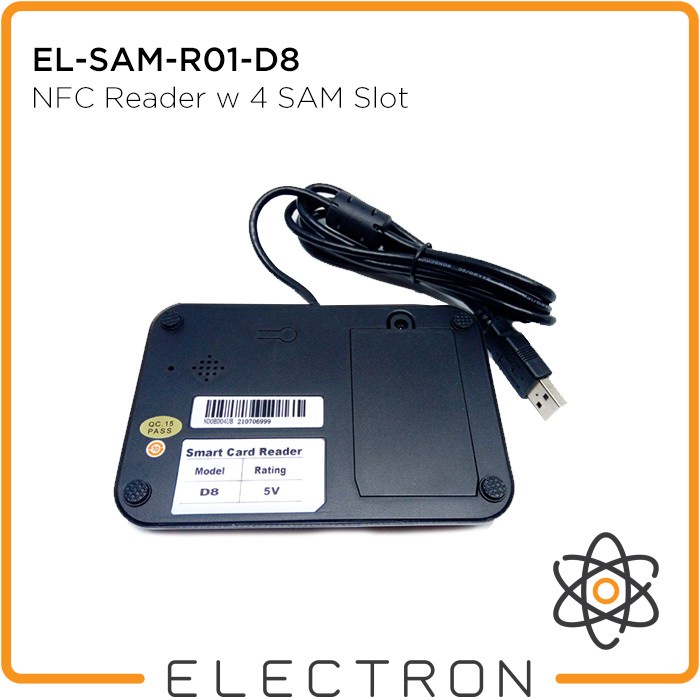

Gambar produk
