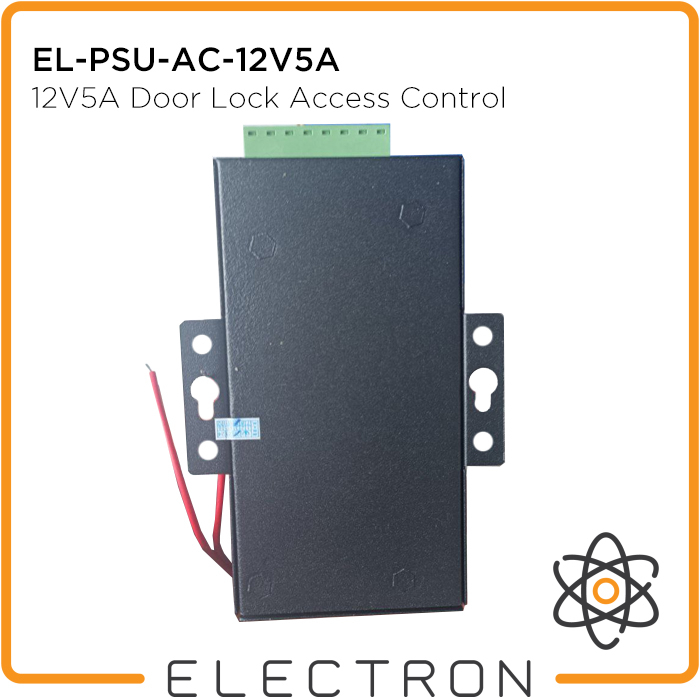

EL-PSU-AC-12V5A Power Supply Door Lock Access Control Kunci Pintu 60W

Detail EL-PSU-AC-12V5A Power Supply Door Lock Access Control Kunci Pintu 60W

Power supply untuk access control.

Features:
It controls electric lock directly
Can reduce the load of access controller, save wiring to reduce the hidden trouble
Based delay control circuit, lock time can be in 0-15 seconds
Automatic protection function, unexpected situations such as when the power supply short-circuits occurs, the power may be temporarily disconnected or the fuse auto insurance line off

Specifications:
Input Voltage: 90 -- 260 V, 50 -- 60 Hz
Input Frequency: 50- 60Hz
Output Voltage: DC 12V
Output Current: 5A
Power: 60W
Door Remote Control Range: 50 - 100M / 164 - 328ft
Output voltage trim range: ±10%~ ±15%
Delay adjustment range: 0 - 15 s
Pin out: 12V, NO, NC
Insulation voltage: Junior/sub-polar inter-1500v ac, primary/shell between 1500V AC, subpolar/shell between 500V AC
Hold time: full load typically 20ms
Overload protection: All output in a short circuit, overload is protected; Power output of 0-15 seconds delay locks.
Dimensi: 132 x 70 x 39 mm
Warna : Hitam

Gambar produk
