EL-PCB-RC522-MINI Module Kit Card Reader Writer 13.56 MHz Mifare

Komputer & Aksesoris > Aksesoris Desktop & Laptop > USB HUB & Card Reader > EL-PCB-RC522-MINI Module Kit Card Reader Writer 13.56 MHz Mifare
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:toko.electronLihat semua produk Komputer & Aksesoris oleh toko.electron
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

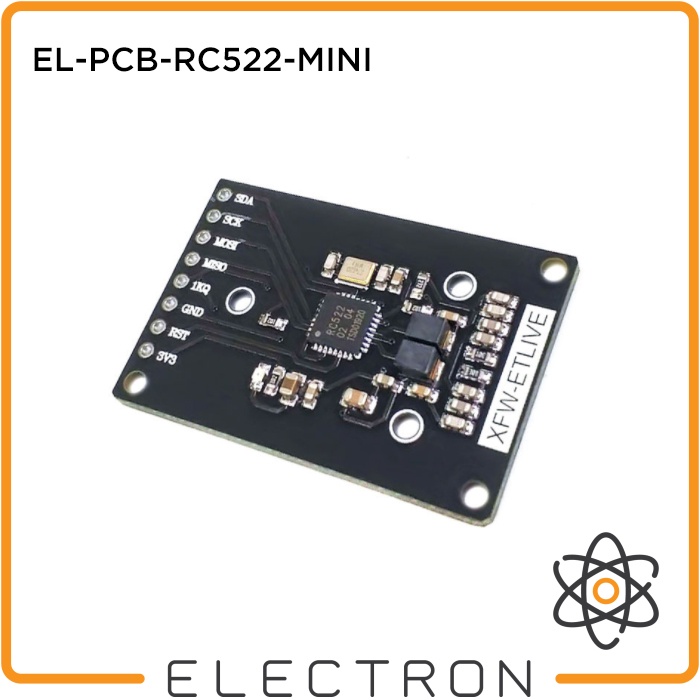

Detail EL-PCB-RC522-MINI Module Kit Card Reader Writer 13.56 MHz Mifare

Spesifikasi:
Tegangan Kerja : 3.3V DC
Interface : SPI Serial
Working Current : 13-26mA
Iddle Current : 10-13mA
Sleep Current : 80uA
Peak Current : 30mA
Frekuensi Kerja : 13.56Mhz
Ukuran Module : 37.5 x 35mm
Suhu Kerja : -20 ~ 80°C
Suhu Penyimpanan Sekitar : -40-85 ° C
Ambient kelembaban relatif: kelembaban relatif 5%-95%

Jenis kartu yang didukung:
Mifare1 S50
Mifare1 S70
Mifare UltraLight
Mifare Pro
Mifare Desfire

Support Arduino, ESP8266, ESP32, STM32, Raspberry dll.

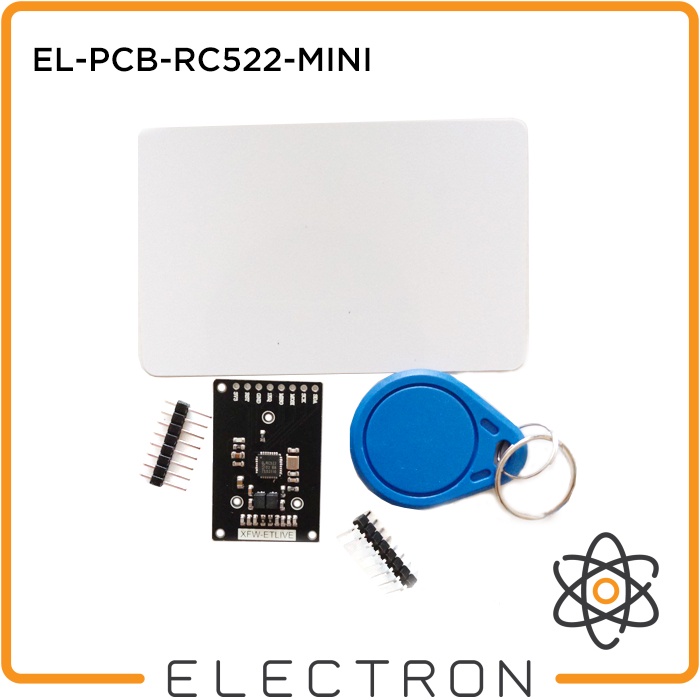

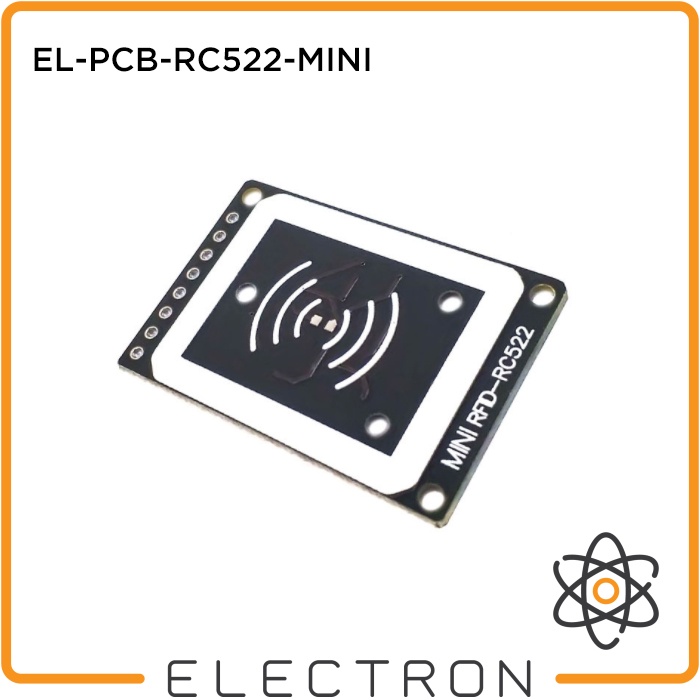

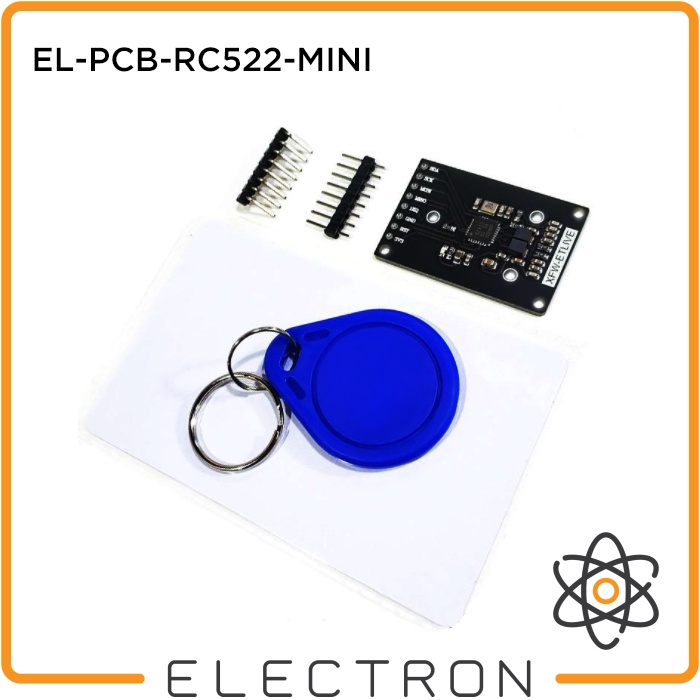

Gambar produk

EL-PCB-RC522-MINI Module Kit Card Reader Writer 13.56 MHz Mifare
EL-PCB-RC522-MINI Module Kit Card Reader Writer 13.56 MHz Mifare
EL-PCB-RC522-MINI Module Kit Card Reader Writer 13.56 MHz Mifare
EL-PCB-RC522-MINI Module Kit Card Reader Writer 13.56 MHz Mifare
EL-PCB-RC522-MINI Module Kit Card Reader Writer 13.56 MHz Mifare
EL-PCB-RC522-MINI Module Kit Card Reader Writer 13.56 MHz Mifare
EL-PCB-RC522-MINI Module Kit Card Reader Writer 13.56 MHz Mifare
EL-PCB-RC522-MINI Module Kit Card Reader Writer 13.56 MHz Mifare
Lihat lebih banyak informasi produk
