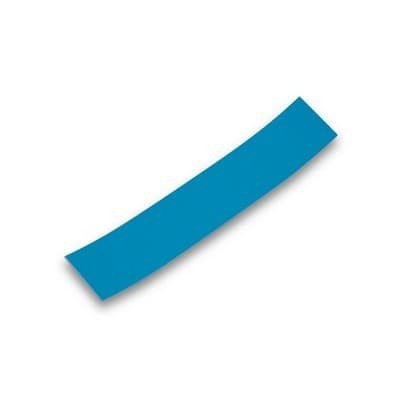

EKWB EK Thermal PAD G - (120x24mm)

Detail EKWB EK Thermal PAD G - (120x24mm)

SIlahkan Konfirmasi Stook Barang Sebelum Membeli

Replacement thermal conductive pad for use with EK water blocks. Along with thermal conductivity, it provides great elasticity and elongation with natural tack on one side. Can be used multiple times, thus offering great reworkability and electrical insulation.

Thermal pads are used to fill air gaps caused by imperfectly flat or smooth surfaces which should be in thermal contact. Please consult your installation manual prior purchasing to see what size and thickness is correct for your EK water block.



Thermal conductivity: 3.5 W/mK (+/-0.35)
General dimensions: Type G (120 x 24 mm)
Thickness (4 varians): 0,5mm - 1mm - 1,5mm - 2mm
Working Temperature: -55 ~ +200°C
Hardness: 5 (Shore A)
Elongation: 100%
Specific Gravity: 2.6 g/cm3 (+/- 0.2)
Flame Rating: V-0
Dielectric Breakdown Voltage: >4kV
Volume Resistance: > 10^11 Ohm-m
Main ingredient: Aluminum oxide (Al2O3) 85-95%

Gambar produk
