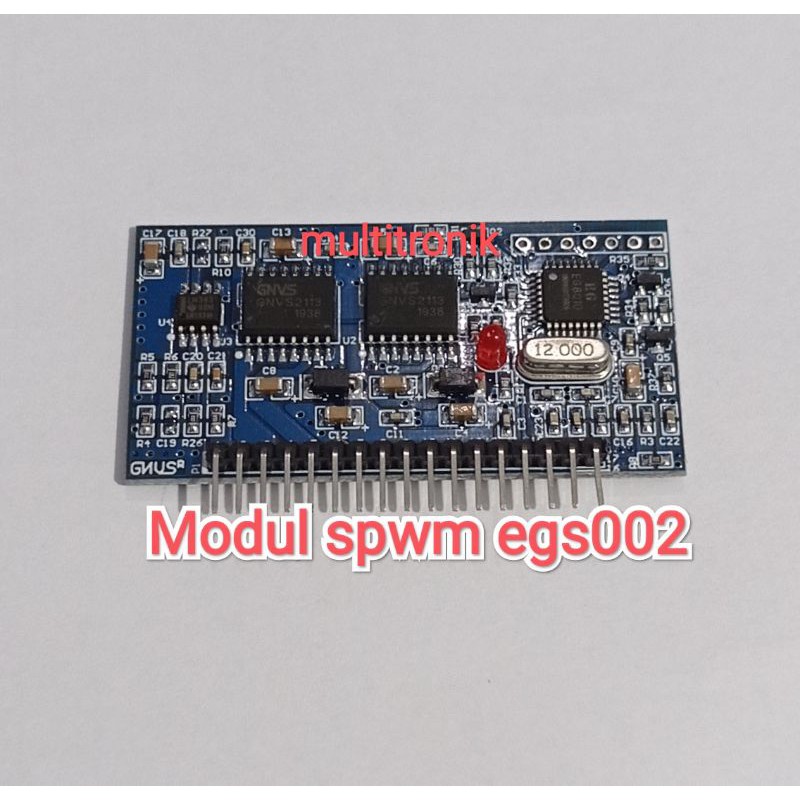

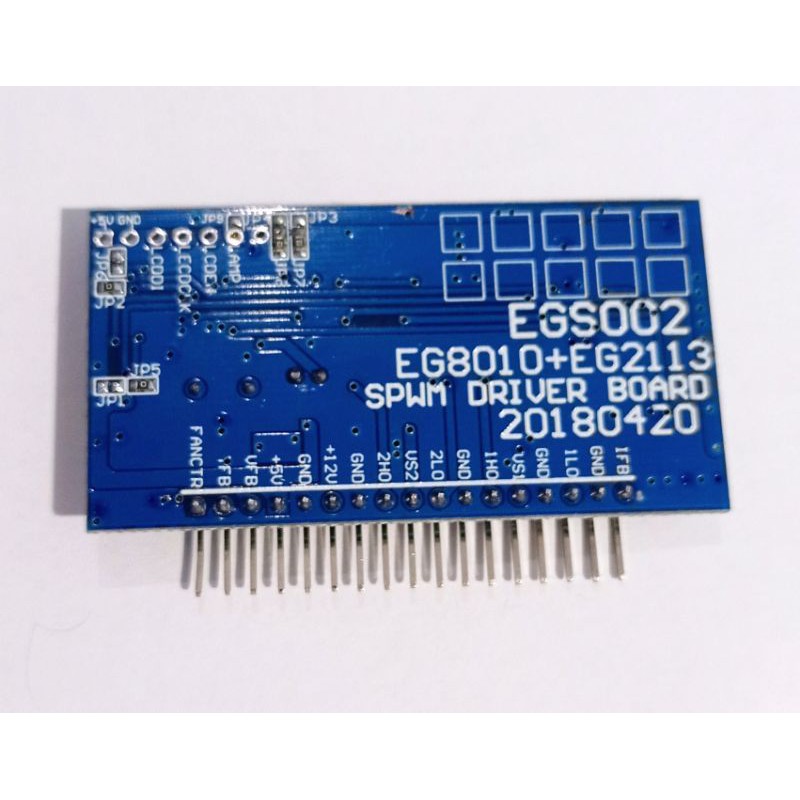

EGS002 PURE SINE WAVE MODULE SPWM EGD-002 PURESINEWAVE EG8010+IR2113

Detail EGS002 PURE SINE WAVE MODULE SPWM EGD-002 PURESINEWAVE EG8010+IR2113

Ready stok silahkan diorder :-)
Harga dijamin murah
Harga diskon

modul kit puresinewave egs002 barang impor

EG8010 is a digital pure sine wave inverter ASIC (Application Specific Integrated Circuit) with complete function of built-in dead time control. It applies to DC-DC-AC two stage power converter system or DC-AC single stage low power frequency transformer system for boosting. EG8010 can achieve 50/60Hz pure sine wave with high accuracy, low harmonic and distortion by external 12MHz crystal oscillator. EG8010 is a CMOS IC that integrates SPWM sinusoid generator, dead time control circuit, range dividersoft start circuit, circuit protection, RS232 serial communication, 12832 serial LCD unit, and etc.

Features:

+5V single power supply
4 settingsofoutput frequency can set by 2 pins
50Hz constant frequency sine-wave
60Hz constant frequency sine-wave
0-100Hzadjustable frequency sine-wave
0-400Hz adjustable frequency sine-wave
2 modulation modes can set by1 pin
Unipolar modulation
Bipolar modulation
4 settings of dead time can set by 2 pinsExternal 12MHz crystal oscillator
300nS
500nS
1.0uS
1.5uS
23.4KHz Modulation frequency
Output Voltage \ Current \ Temperature detect and handle
3 seconds soft start can select by 1 pin
USART communication support
Voltage \ Current \ Temperature \ Frequency Display support by external LCD
Parameters and functions customize support

Application

Single-Phase sinusoid inverter
Solar power generation inverter
Wind power generation inverter
UPS(Uninterruptible power supply)
Digital Generator
Medium frequency power supply
Single-phase motor speed controller

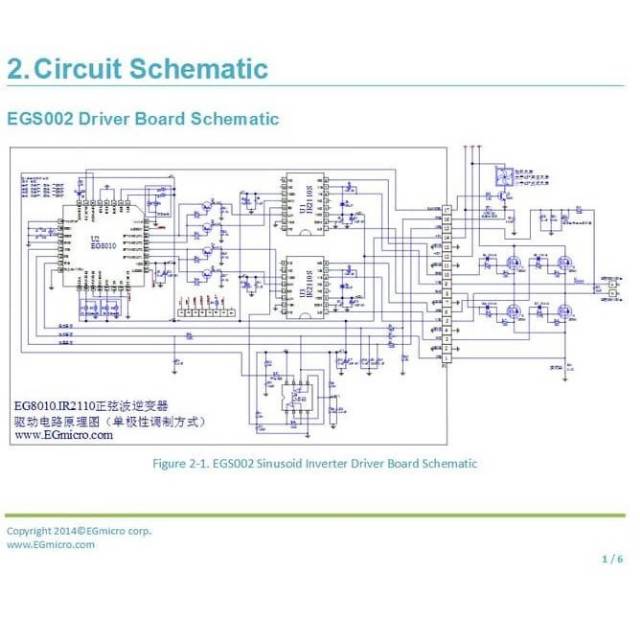

Gambar produk
