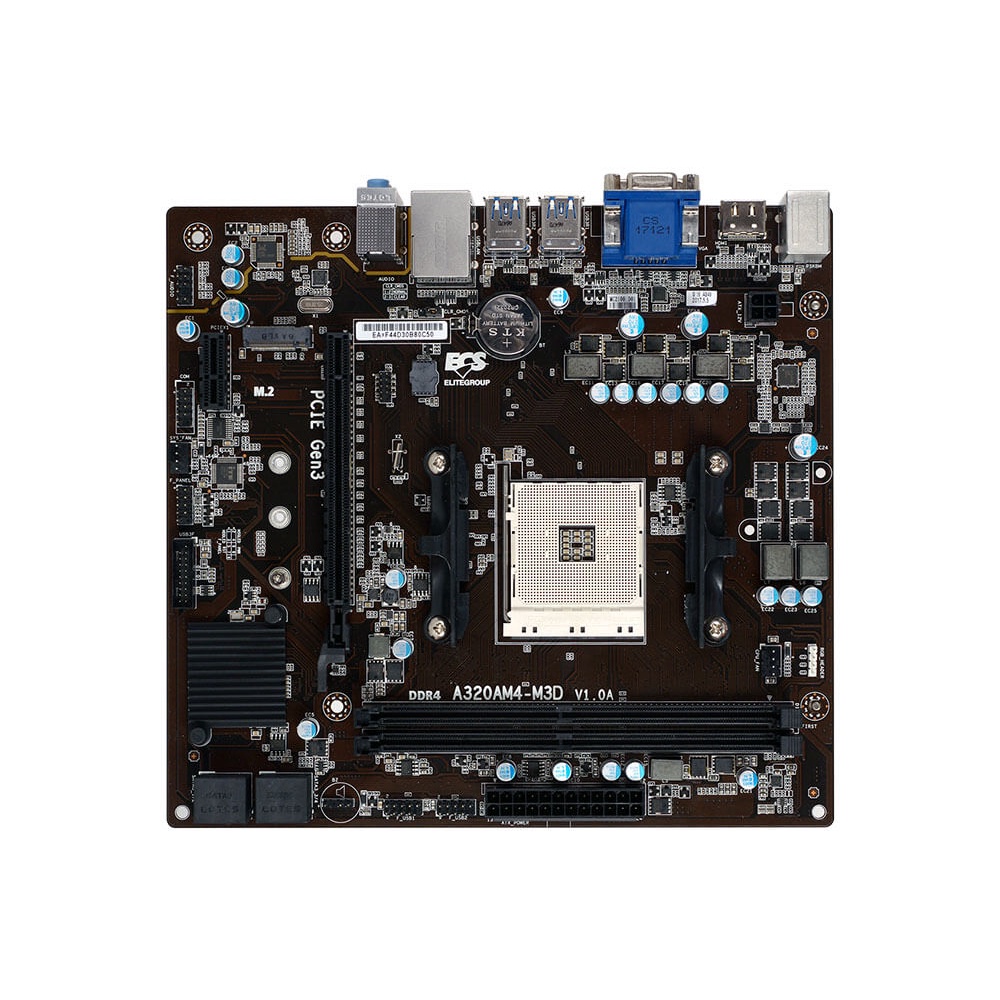

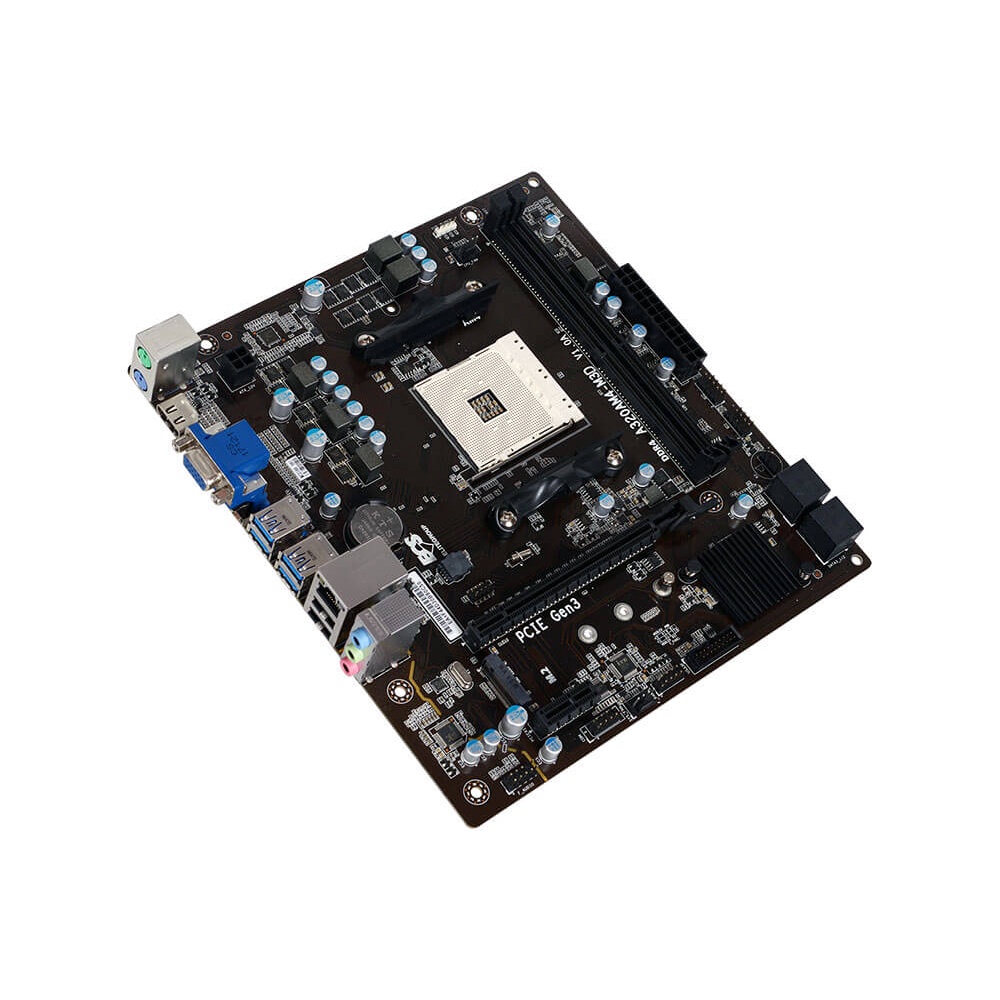

Ecs Motherboard A320 A320AM4-M3D AM4

Detail Ecs Motherboard A320 A320AM4-M3D AM4

kami menjual barang original bergaransi resmi
Harga dan stok bisa berubah setiap saat tanpa pemberitahuan sebelumnya
Silahkan chat dahulu untuk cek Stok Barang

setiap Konsumen yang membeli produk ditoko kami
apabila ada garansi, klaim garansi bisa dibantu lewat toko juga
apabila daerah agan tidak ada service center/distributornya

yang mau nambah bubble wrap silahkan klik link ini
https://shopee.co.id/bubble-wrap-i.225428636.5255998882?position=0

CPU
Supports AMD AM4 socket for AMD Ryzen™ processors and 7th Gen A-series / Athlon™ Processors
3+2 Phase Thermal Design Power
100% Solid capacitor design
Please refer to CPU support list for details
CHIPSET
AMD® A320
GRAPHICS
Supports HDMI 1.4a & Premium Audio
Supports AMD Dual Graphics
MEMORY
Dual-channel DDR4 Memory architecture
Supports DDR4 2667 / 2400 / 2133 non-ECC, Un-buffered SDRAM Memory
2 X 288-pin DDR4 DIMM socket
∟ Support up to 32 GB*
* Due to AMD CPU spec limitation, please refer to Memory QVL for more information.
EXPANSION SLOT
1 X PCI Express X16 Gen 3.0 slot(s)
X PCI Express X 1 Gen 2.0 slot(s)
1 X M.2 slot for SSD
∟ For 2242/2260/2280 PCIE X2 SSD
Storage
Support by AMD A320 Express Chipset
4 X Serial ATAIII 6Gb/s
RAID0, RAID1,RAID10 configuration
Audio
6-Channel HD audio CODEC
Compliant with HD audio specification
Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC
‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
‧Emulation of 26 sound environments to enhance gaming experience
‧Voice Cancellation and Key Shifting in Karaoke mode
‧Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN
RTL 8111H Gigabit Fast Ethernet Controller
Wake-On-LAN
USB
Support by A320 Express Chipset
6 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s
---- Back Panel 4 port(s)
---- Onboard 2 port(s)
6 X USB2.0 port(s) Up to 480 Mb/s
---- Back Panel 2 port(s)
---- Onboard 4 port(s)

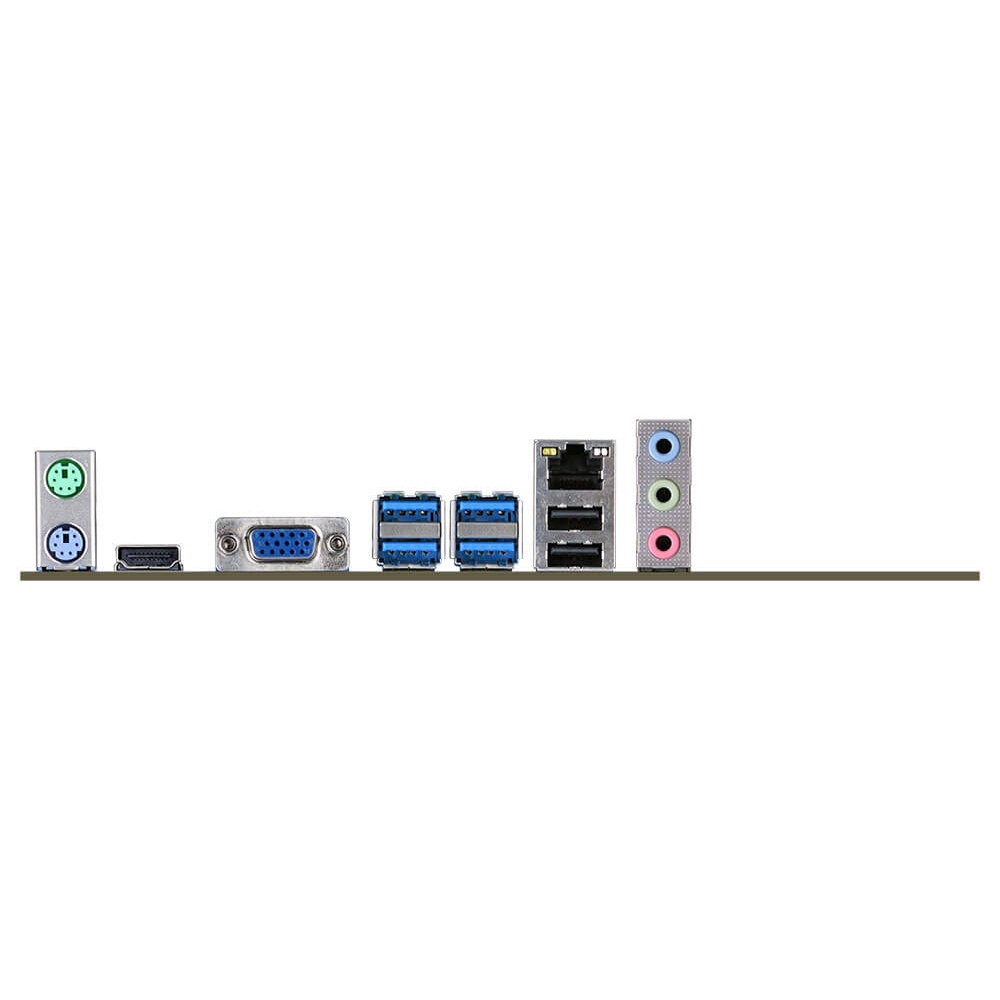

REAR PANEL I/O
1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X D-Sub (VGA) port(s)
6 X USB 3.2 Gen 1x1 Type A port(s)
2 X USB2.0 port(s)
CONNECTORS & HEADERS
1 X 24-pin ATX Power Supply connector
1 X 4-pin Power Connector for Graphics
1 X 4-pin CPU_FAN connector with smart fan
1 X 4-pin SYS_FAN connector with smart fan
1 X Front Panel switch/LED header
1 X Front panel audio header
1 X Speaker header
1 X USB 3.2 Gen 1x1 header
∟ Support additional 2 USB ports
2 X USB 2.0 header
∟ Support additional 4 USB ports
4 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
1 X Serial port header (COM)
SYSTEM BIOS
AMI BIOS with 128 MB SPI Flash ROM
F7 hot key for boot up devices option
Dual Display
Support ECS EZ BIOS
Support GUI UEFI BIOS
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Audio, LAN, can be disabled in BIOS
Supports PgUp clear CMOS Hotkey

Gambar produk
