Detail E18-D80NK Adjustable Infrared Proximity Distance Sensor Switch

E18-D80NK Adjustable Infrared Proximity Distance Sensor Switch

Koneksi Kabel :
Coklat : +5V
Biru : 0V
Hitam : Output Signal

Spesifikasi :
Power Supply: 5 VDC
supply current DC 25mA
maximum load current 200mA
effective from 3-80CM Adjustable
detection of objects: transparent or opaque
working environment temperature: -25+55

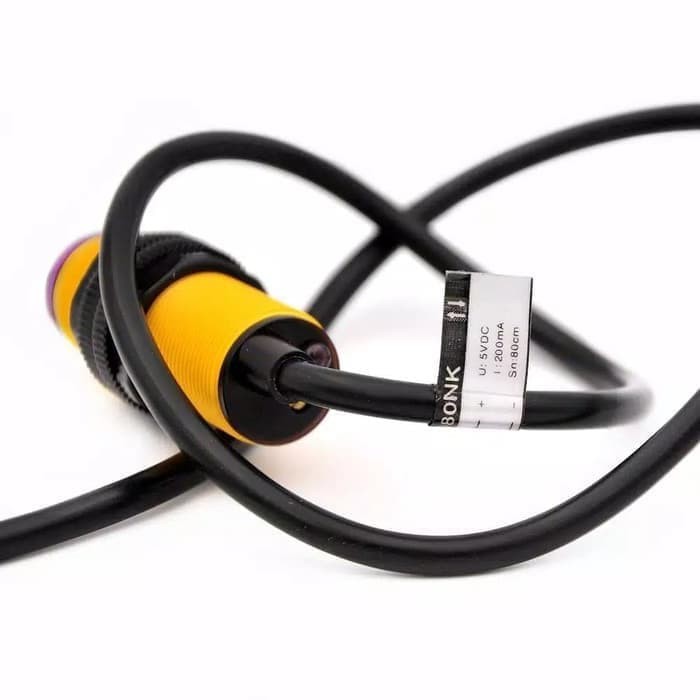

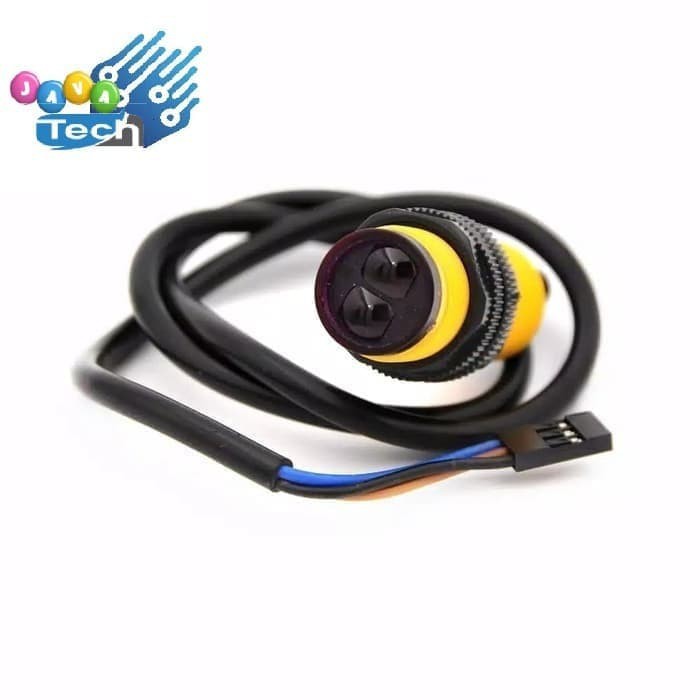

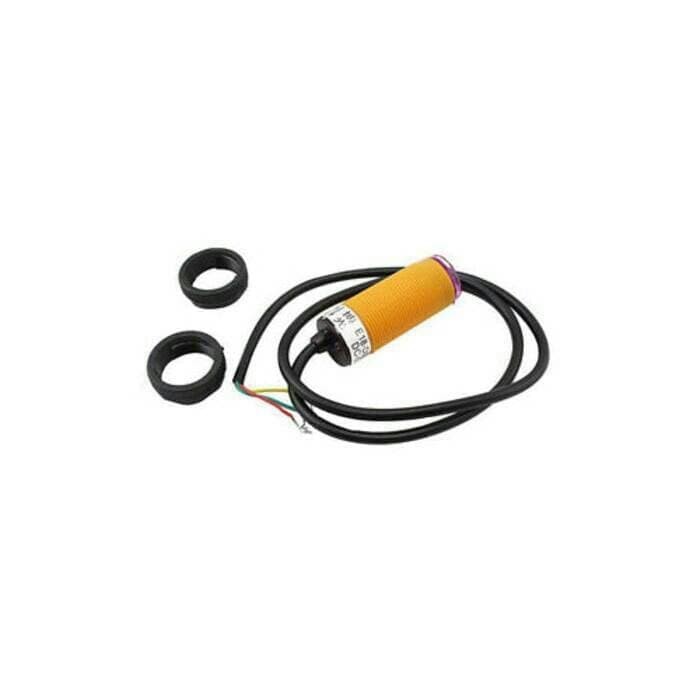

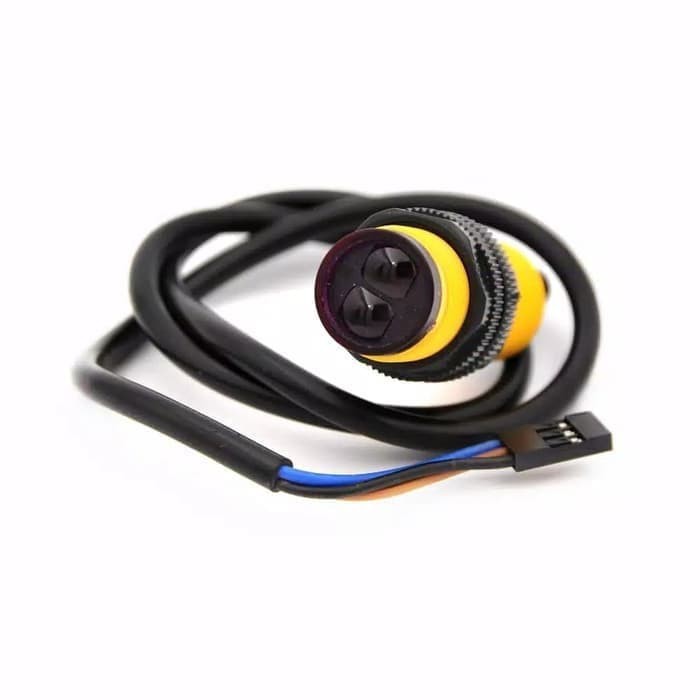

Gambar produk
