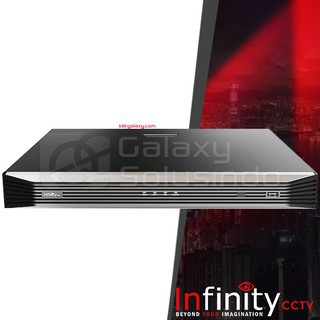

DVR Infinity EDV-8N216-PFL Blue Series - 2 Slot HDD Sata

Detail DVR Infinity EDV-8N216-PFL Blue Series - 2 Slot HDD Sata

SPECIFICATION :

Model


EDV-8N216-PFL


Video/Audio Input


Analog Video Input


16-ch, BNC




IP Video Input


8-ch(only IP up to 24ch), each channel up to 4K





Support AHD input:





8MP@15fps(channel1-channel4)








5MP@20fps








4MP@30fps








3MP@30fps (channel1








-channel4)





1080P@30fps


Supported Analog

Camera Types


720P@60fps

Support TVI input:





8MP@15fps(channel1-channel4)





5MP@20fps 4MP@30fps

3MP@20fps (channel1 -





channel4)





1080P@30fps








720P@60fps


Support CVI input:


8MP@15fps(channel1-channel4)


4MP@30fps


1080P@30fps


720P@60fps


Support CVBS input


Audio Input


1-ch, RCA


Two-way Audio


1-ch, RCA


Channel Associated Audio


1-ch,RCA


Network


Incoming Bandwidth


72Mbps


Outgoing Bandwidth


80Mbps


Remote Users


128


Protocols


TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE


Video/Audio Output


CVBS Output


1-ch, BNC


VGA Output







1920x1080p/60Hz,

1920x1080p/50Hz,

1600x1200/60Hz,

1280x1024/60Hz,

1280x720/60Hz,

1024x768/60Hz








HDMI Output








Recording Resolution


Audio Output


Synchronous Playback


16-ch











Main stream:





8MP Lite@8fps

（channel1-channel4）





5MP Lite@12fps




Recording Frame Rate


4MP Lite@15fps

3MP@15fps(channel1 - channel 4)

2MP@15fps





720P@30fps





Sub stream:





D1@30fps(Max)





8MP Lite/5MP Lite/4MP Lite


Recording Resolution


/3MP/1080P/960P/720P/960H/4C

IF/CIF


Hard Disk


SATA


Capacity


External Interface




Network Interface


1RJ45 10M/100M/1000M

self adaptive Ethernet Interface




USB Interface


Rear panel ：1 x USB3.0, Front panel：1xUSB2.0


Serial Interface


1 x RS485


Alarm In


-


Alarm Out


-


General




Power Supply


12V DC

Power Consumption:

≤ 12 W( without HDD )
