DVR HIKVISION 8 CHANEL DS-HQHI7208-K1 / DVR TURBO HD HIKVISION

Detail DVR HIKVISION 8 CHANEL DS-HQHI7208-K1 / DVR TURBO HD HIKVISION

DVR Hikvision DS 7208 HQHI-F1/N
( 8 Channel )

Video Compression: H.264,H.264+
Analog and HD-TVI video input: 8-ch,BNC interface (1.0Vp-p, 75 )connection
Supported camera types: 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
IP Video Input: 2-ch Up to 2MP resolution
Video Input Interface: BNC (2.0 Vp-p, 1k)
Audio Compression: G.711u
Audio Input Interface: RCA (2.0 Vp-p, 1 k)
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 K) (using audio input)

Video/Audio Output
CVBS Output: 1-ch,BNC(1.0Vp-p,75),resolution:PAL:704x576,NTSC:704x480
HDMI/VGA Output: 1920 1080 / 60 Hz,1280 1024 / 60 Hz, 1280 720 / 60 Hz, 1024 768 / 60 Hz
Recording resolution: 1080P lite mode: Main stream:1080P(lite)(real-time)/720P(lite)(real-time)/WD1/VGA/4CIF/CIF Sub-stream:WD1(non-real-time)/4CIF(non-real-time)/CIF/QCIF/QVGA non 1080P lite mode:Main stream: 1080p(non-real-time)/720P(non-real-time)/720P/WD1/VGA/4CIF/CIF Sub-stream: WD1(non-real-time)/4CIF(non-real-time)/CIF/QCIF/QVGA
Frame Rate: Main stream: 1/16 fps ~ Real time frame rate
Sub-stream: WD1/4CIF@12fps,CIF/QVGA/QCIF@Real time frame rate
Video Bit Rate: 32 Kbps-6 Mbps
Stream Type: Video/Video&Audio
Audio Output: 1-ch RCA(Linear, 1k)
Audio Bit Rate: 64kbps
Dual Stream: Support
Playback Resolution: 1080P/1080P(lite)/ 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Synchronous Playback: 8-ch

Network management
Remote connections: 128
Network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS,ONVIF

Hard Disk Driver
Interface Type: 2 SATA Interfaces
Capacity: Up to 6 TB capacity for each disk

External Interface
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces
Serial Interface: 1; standard RS-485 serial interface, half-duplex
General
Power Supply: 12V DC
Consumption: 20W(without hard disks)

GARANSI RESMI 2 TAHUN

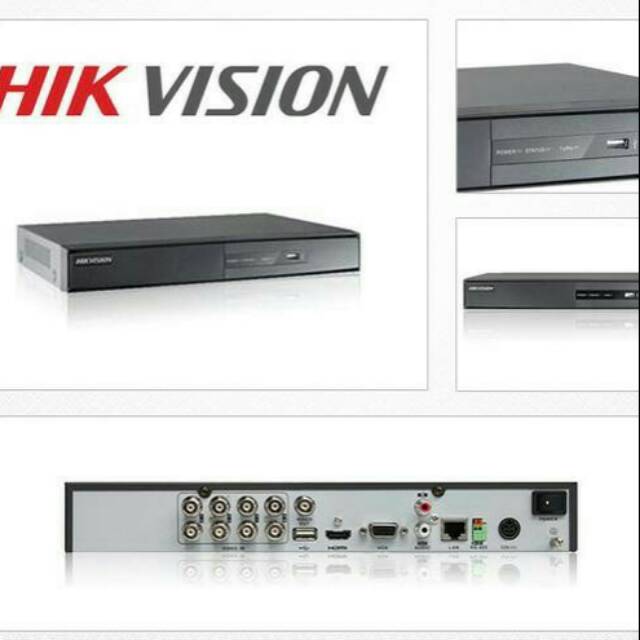

Gambar produk
