DVR HIKVISION 16 CH 5MP TVI DS-7216 HUHI K2

Detail DVR HIKVISION 16 CH 5MP TVI DS-7216 HUHI K2

Deskripsi DVR Hikvision DS-7216HUHI-K2 16 ch 5MP H265 (Turbo HD 4.0)

Video/Audio Input
Audio Input: 4-ch
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input: 16-ch,BNC interface (1.0Vp-p, 75 )connection
Supported camera types:
Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVBS input
Video Input Interface: BNC (1.0 Vp-p, 75)
Audio Compression: G.711u
Audio Input Interface: 4-ch, RCA (2.0 Vp-p, 1 K)
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 K), (using the 1st channel of audio input)

Video/Audio Output
Frame Rate:
Main stream:
8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps-10 Mbps
Stream Type: Video/Video&Audio
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 k) (using the audio input)
Audio Output: 1-ch RCA(Linear, 1k)
Audio Bit Rate: 64kbps
Dual Stream: Support
Synchronous Playback: 16-ch

Network management
Remote connections: 128
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF

Hard Disk Driver
Interface Type: 2 SATA Interfaces
Capacity: Up to 10 TB capacity for each disk

External Interface
Network Interface: 1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface: 1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface: 1; standard RS-485 serial interface, half-duplex
Alarm Input: 16-ch
Alarm Output: 4-ch

General
Power Supply: 12 VDC
Consumption: 25W(without hard disks)
Working Temperature: -10 oC to +55 oC (14 oF to 131 oF)
Working Humidity: 10% to 90%
Dimensions: 380 320 48 mm (15.0 12.6 1.9 inch)

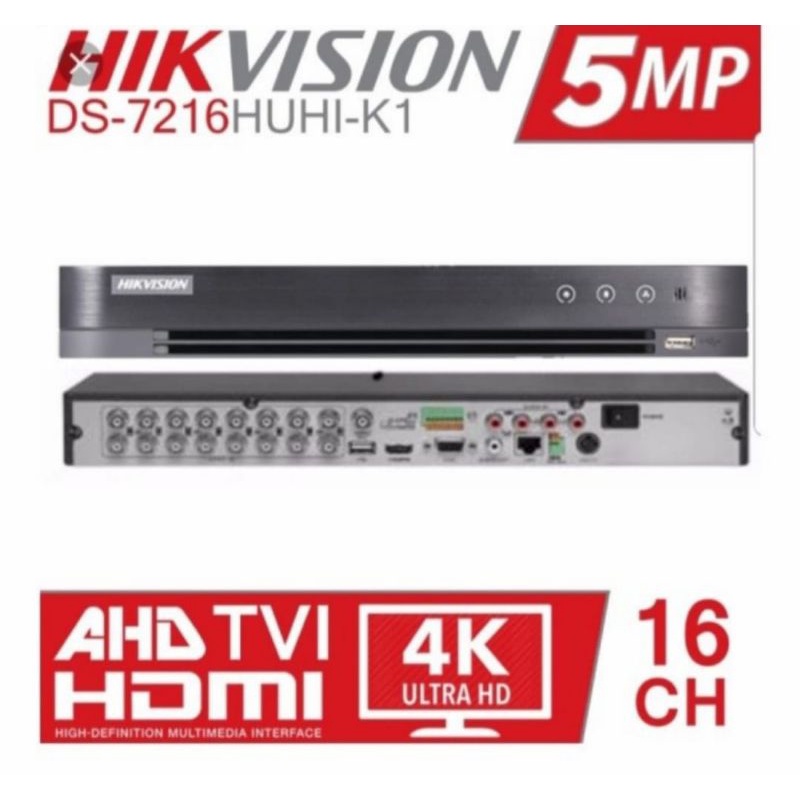

Gambar produk
