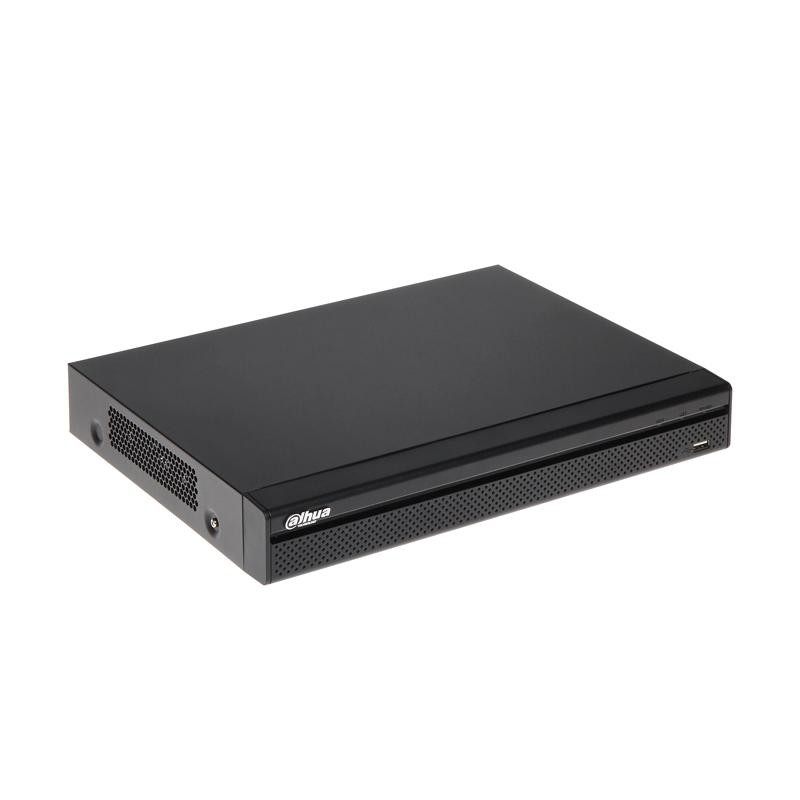

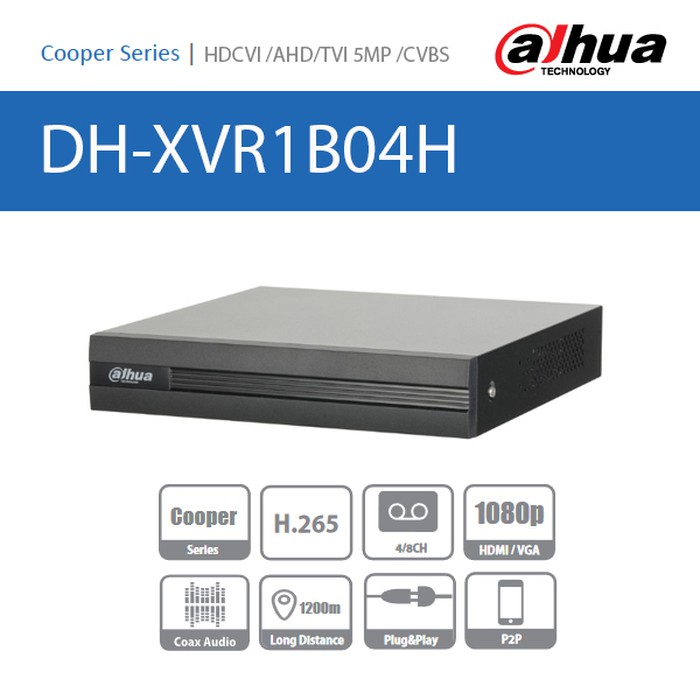

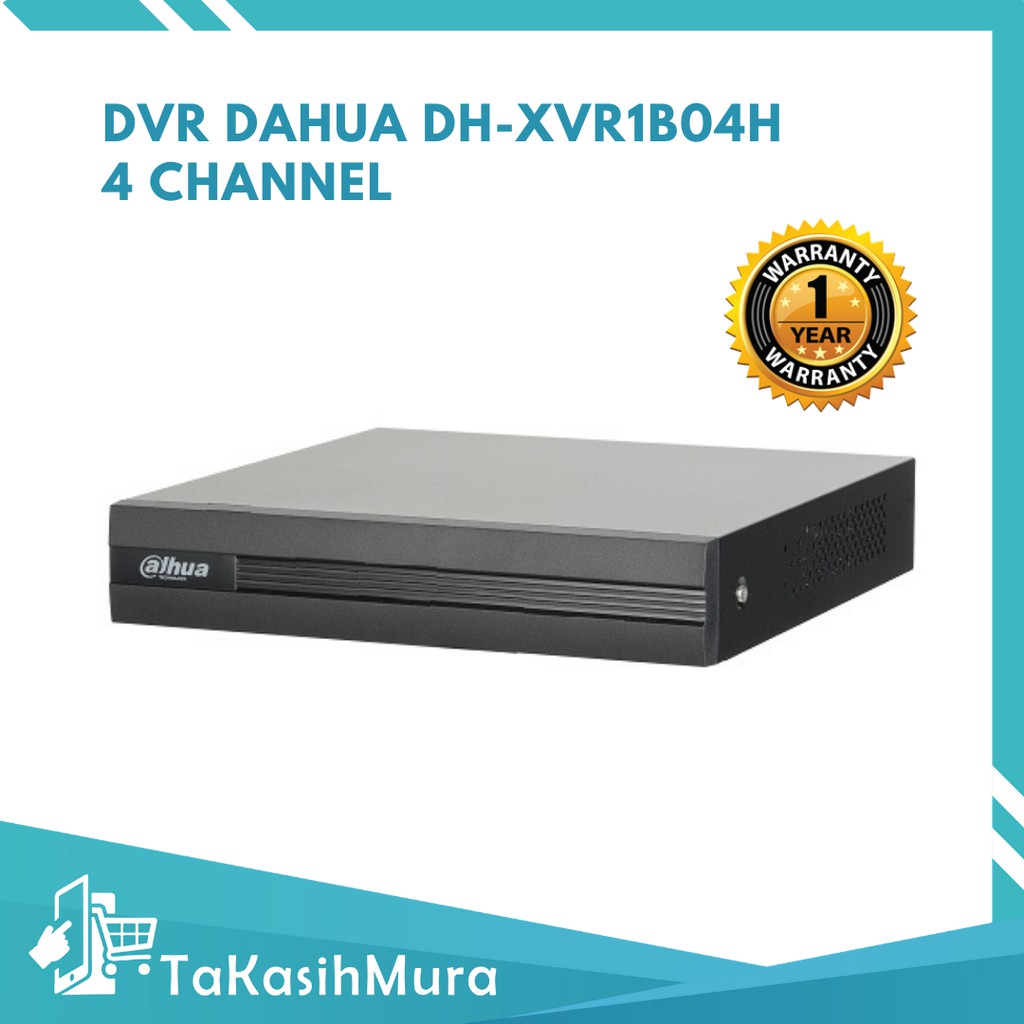

DVR DAHUA 4CH XVR1B04H 5MP XVR DAHUA 5MP ORIGINAL GARANSI RESMI

Detail DVR DAHUA 4CH XVR1B04H 5MP XVR DAHUA 5MP ORIGINAL GARANSI RESMI

DVR DAHUA 4CH XVR1B04H 5M-N XVR DAHUA 5MP N ORIGINAL GARANSI RESMI

DVR DAHUA 4 CHANNEL XVR1B04H :
H.265+/H.265 dual-stream video compression·
Video and Audio
Analog Camera Input 4 Channel, BNC
HDCVI Camera : 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera : 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera : 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera : PAL/NTSC
IP Camera Input 4+2CH, each channel up to 6MP
Audio In/Out :1/1, RCA
Two-way Talk : Reuse audio in/out, RCA

Recording
Video Compression H.265+/H.265/H.264+/H.264
Resolution : 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Record Rate
Main Stream:
4CH: the 1st channel 5M-N(1~10fps);
other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/
D1/CIF (1~25/30fps)

Sub stream:
CIF/QCIF (1~15fps)

Video Bit Rate 32Kbps ~ 6144Kbps Per Channel

Record Mode Manual, Schedule (General, Continuous), MD (Video detection:

Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec

Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate 8KHz, 16 bit Per Channel

Audio Bit Rate 64Kbps Per Channel

Display :Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720
Storage : Internal HDD 1 SATA Port, up to 6TB capacity

Gambar produk
