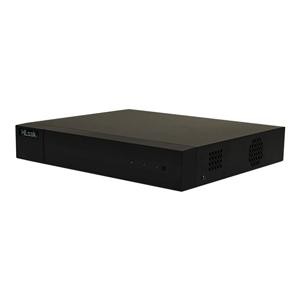

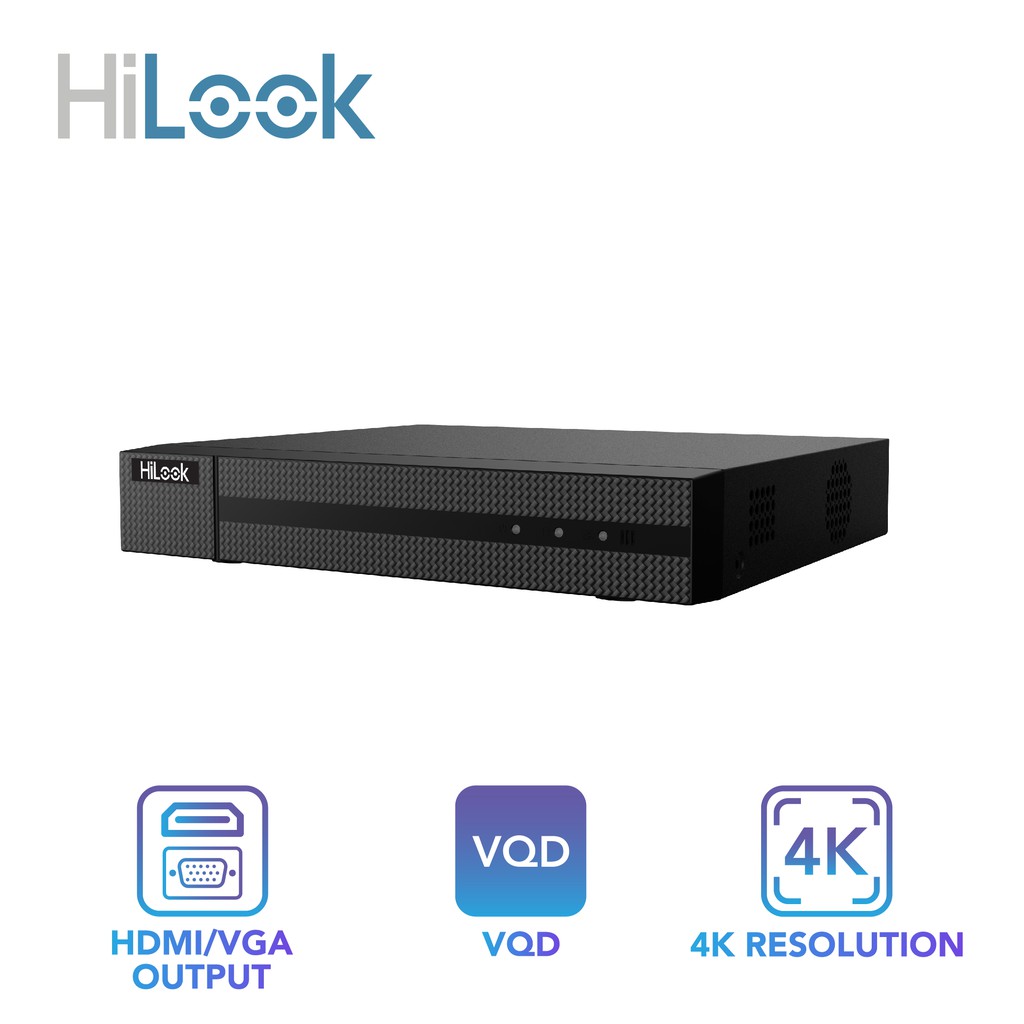

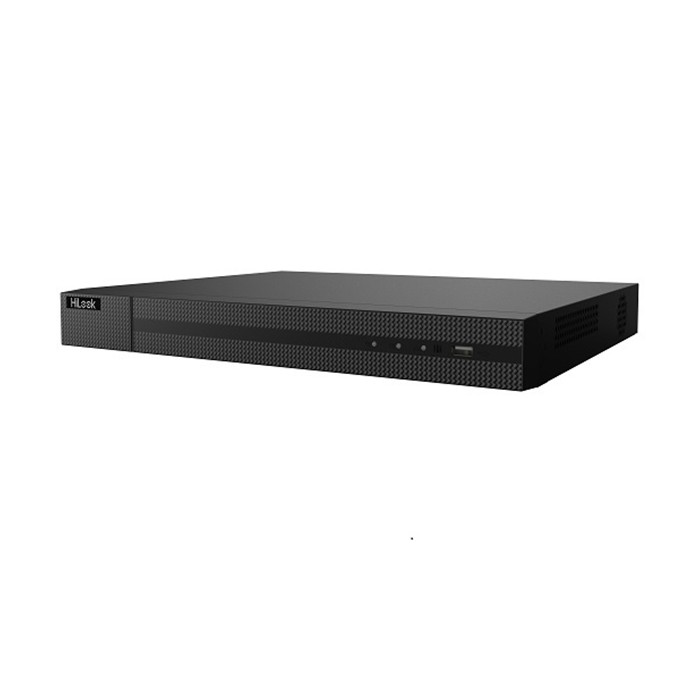

Dvr Camera Hilook 208Q-K1S 4Mp 5 In 1 4 Channel Turbo Hd Dvr

Detail Dvr Camera Hilook 208Q-K1S 4Mp 5 In 1 4 Channel Turbo Hd Dvr

Video compression：H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input：8-ch,BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Turbo HD input：4MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60. Note: The 3 MP signal input is only available for the first channel of DVR-204Q-K1, the first 2 channels of DVR-208Q-K1, and the first 4 channels of DVR-216Q-K1.
AHD input: 4MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input: 4MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input: PAL/NTSC
IP video input: 4-ch (up to 12-ch),Up to 6 MP resolution
Audio compression: G.711u
Audio input/Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI/VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution: When 1080p Lite mode not enabled: 4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF
Frame rate: Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p….@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/...@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA...@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps(N)
For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream: WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate: 32 Kbps to 6 Mbps
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate: 64 Kbps
Dual stream: Support
Stream type: Video, Video & Audio
Synchronous playback: 8-ch
Remote connections: 64
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
SATA: 1 SATA interface
Capacity: Up to 10 TB capacity for each disk
Network interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface: Real panel: 2 × USB 2.0
Power supply: 12 VDC
Consumption(without HDD): ≤ 8 W
Working temperature: -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity: 10% to 90%
Dimensions(W × D × H): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight(without HDD): ≤ 1 kg (2.2 lb)
