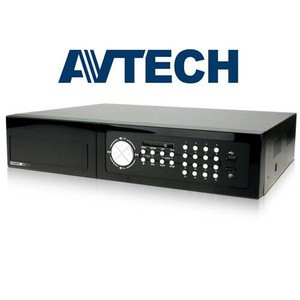

Video System NTSC / PAL (auto detection) Video Compression Format H.264 Video Input 16 channels (Composite video signal 1 Vp-p 75 BNC) Video Output BNC YES VGA YES HDMI YES
Record & Backup Maximum Recording Rate 1080P 1920 x 1080 pixels with 240 IPS 720P 1280 x 720 pixels with 480 IPS QHD 960 x 540 pixels with 480 IPS Frame 704480 pixels with 480 IPS NTSC / 704576 pixels with 400 IPS PAL Field 704x240 pixels with 480 IPS NTSC / 704288 pixels with 400 IPS PAL CIF 352240 pixels with 480 IPS NTSC / 352288 pixels with 400 IPS PAL Recording Mode Manual / Timer / Motion / Alarm / Remote Pre-alarm Recording YES Playback Channel 16CH Quick Search Time / Motion / Alarm search mode Backup Device USB 2.0 flash drive / Network
General Hard Disk Storage** Up to 3 SATA HDDs SATA Interface YES Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL USB Mouse Control YES Motion Detection Area 16 12 grids per channel Motion Detection Sensitivity 3 adjustable parameters for accurate detection Event Notification Push Status / FTP / E-Mail Picture Zoom 2X digital zoom PTZ Control YES Alarm I/O 4 inputs, 1 output RS485 YES IR Remote Control YES (IR receiver built-in) Key Lock (Password Protection) YES User Level 4 user levels for different access privilege Video Loss Detection YES Camera Title Supports up to 12 letters Video Adjustable Hue / Saturation / Contrast / Brightness Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY Daylight Saving YES Power Source (10%) DC19V / 3.42A Operating Temperature 10 ~ 40 (50~104) Dimensions (mm)*** 432(W) 90(H) 326(D)
Network Ethernet 10/100 Base-T. Supports remote control and live GARANSI 1THN RESMI AVTECH
