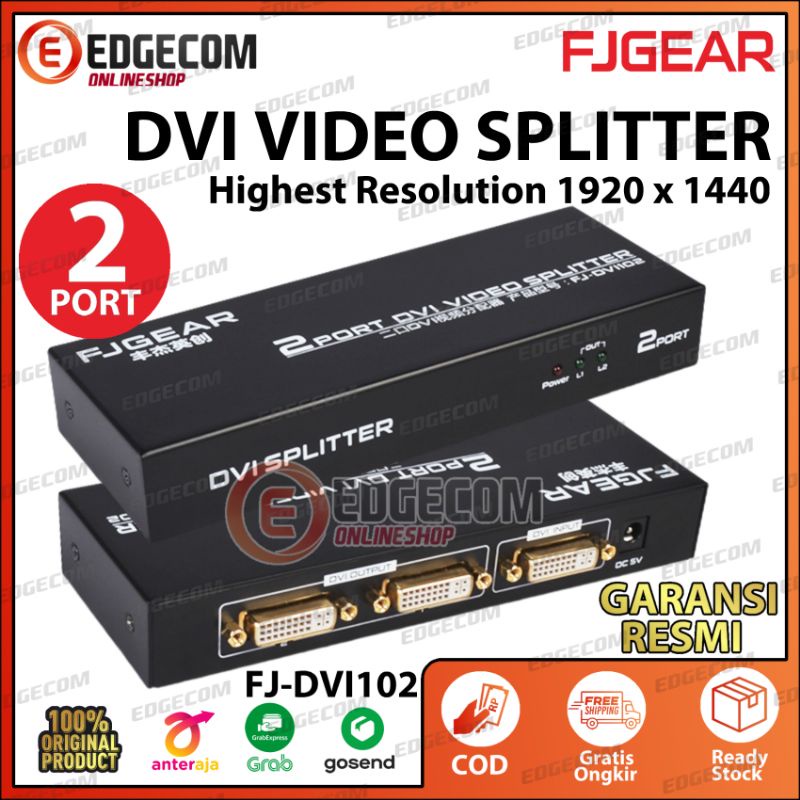

DVI Splitter 2 Port / DVI Splitter 1 in to 2 out FJGEAR

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > DVI Splitter 2 Port / DVI Splitter 1 in to 2 out FJGEAR
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail DVI Splitter 2 Port / DVI Splitter 1 in to 2 out FJGEAR

2 Port DVI Video Splitter Adalah alat booster sinyal DVI pin 24+5 yang berfungsi membagi 1 port menjadi 2 port sinyal DVI pin 24+5 dengan hasil gambar serupa.


Features:

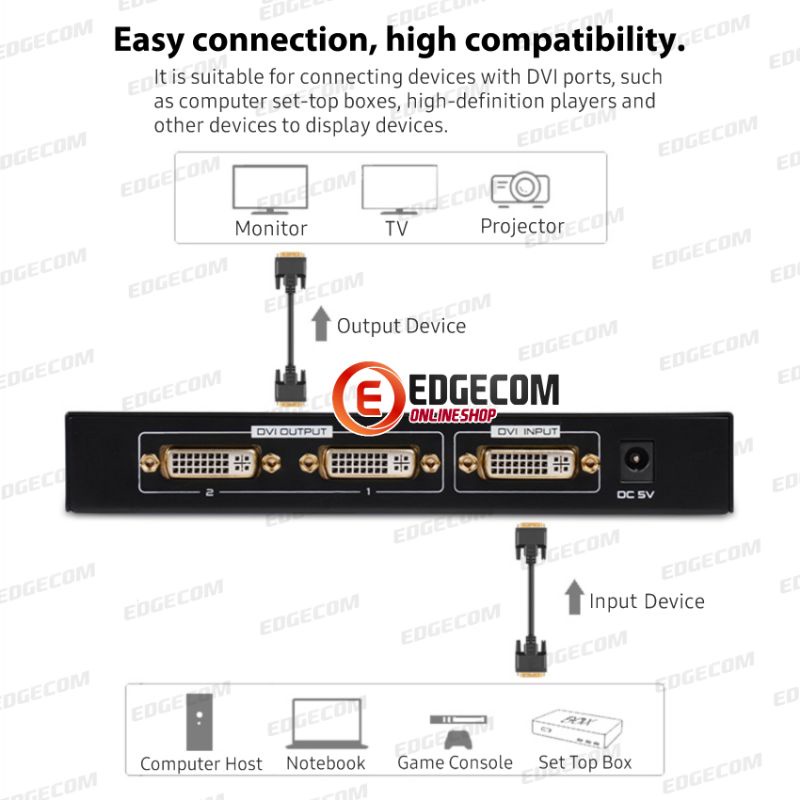

Distributes computer DVI graphic signal to 2 displays simultaneously.
Accurate and reliable reproduction of digital video signal, with no signal attenuation or distortion.
Fully compliant with the DVI 1.0 standard
Provides high digital resolution up to 1920 x 1440 @60Hz
DVI cables are used to connect the DVI input and the computers output.


Specifications:

Use Panel Link digital technology.
Supports high-resolution dislplay up to UXGA (25-165MHz).
Can be cascaded.
Compliant with the specification of DVI 1.0 & 1.3
Simultaneous monitor display.
Plug-and-play, No extra software needed.

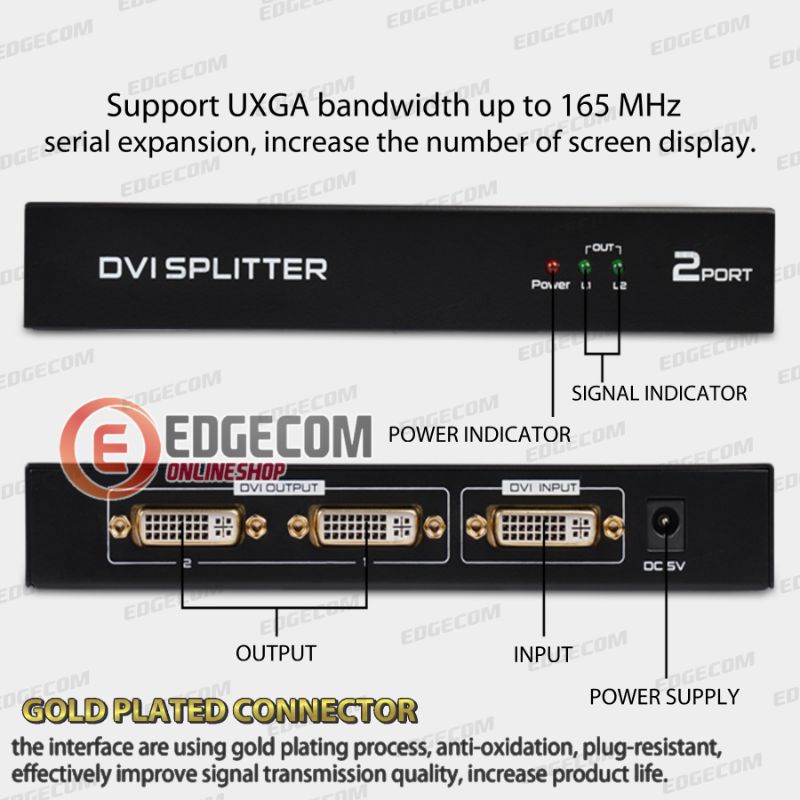

LED Indicators
All lower resolutions operate up to 75 Hz
Video Amplifier Bandwidth : 1.65GMHz (-3db)
Dual Link Ranger : 1920x1440
DVI Input/Output Connector Type : DVI-I
Cable DistDnce (Device to monitor) max : 20 meters
Video in Ports : 1 x DVI pin 24+5(Female)
Video out ports : 2 x DVI pin 24+5(Female)
Power DC 5V 1A
size : 178 mm x 71 mm x 27 mm
Weight (splitter) : 510 grams
Casing : Metal black

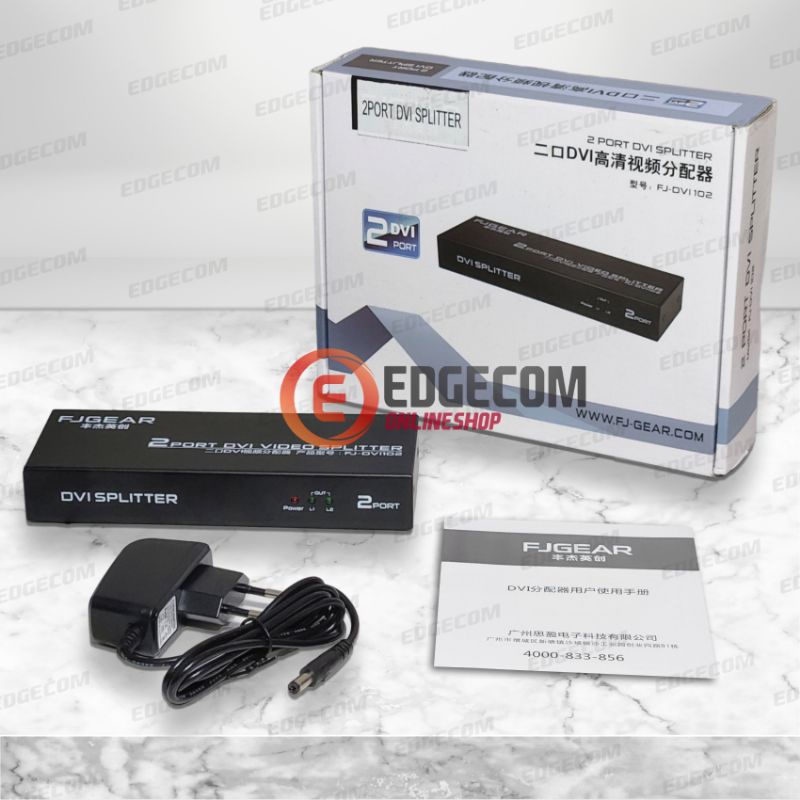

Isi Paket :

1 x 2 Port DVI-I SPLITTER 102
1 x Adaptor Power
1 x Manual Book
