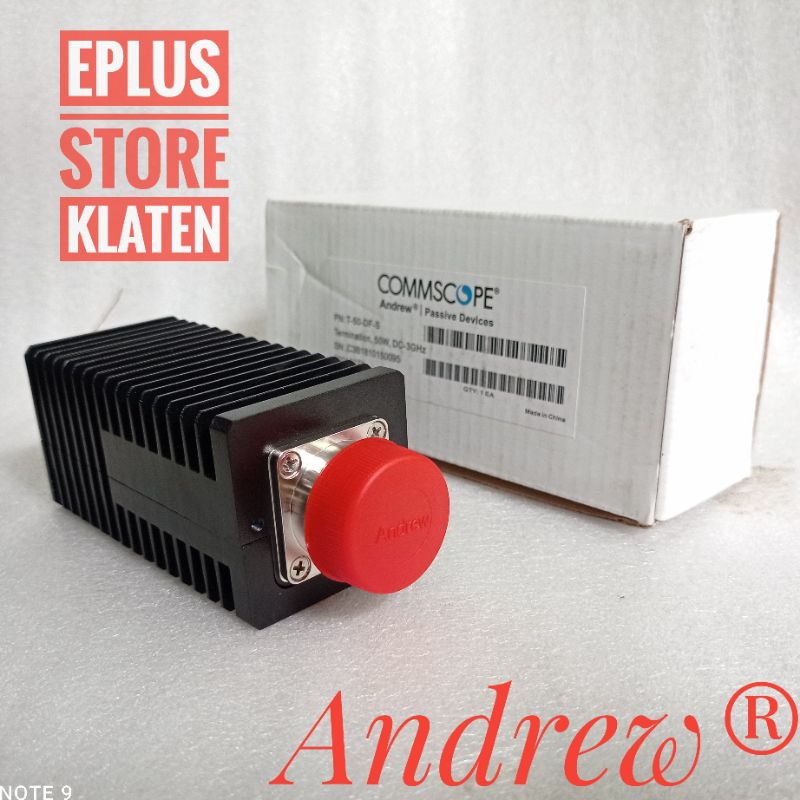

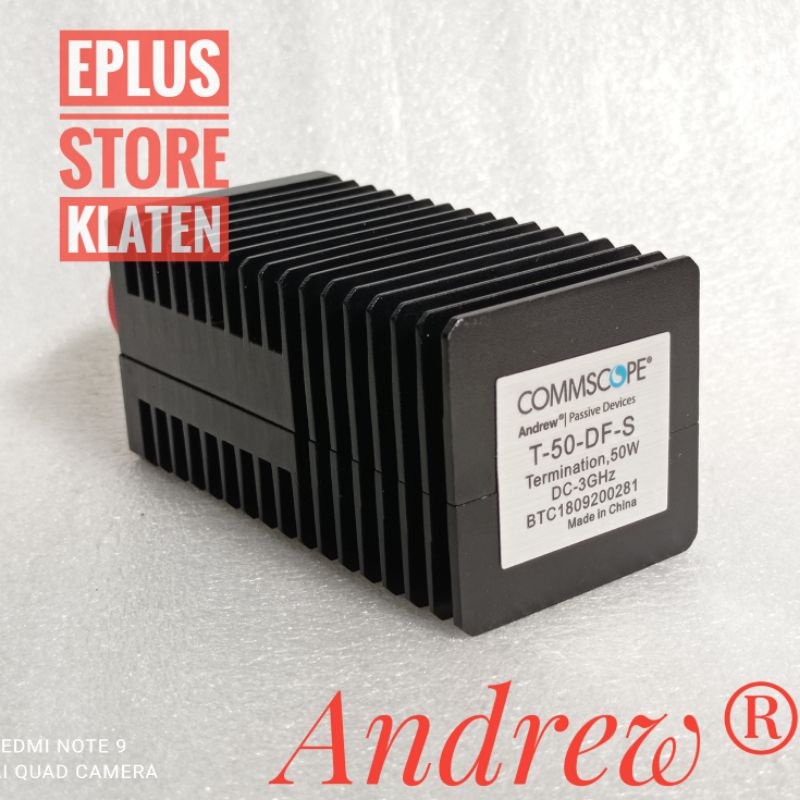

Detail Dummyload Andrew T-50-DF-S Termination Load 0-3000 Mhz COMMSCOPE DM-101
Dummyload Andrew T-50-DF-S Termination Load 0-3000 Mhz COMMSCOPE DM-101
Product Classification
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Termination Load
General Specifications
Device Type Termination Load
Application Indoor/Outdoor
Color Black
Inner Contact Plating Silver
Interface 7-16 DIN Female
Outer Contact Plating Trimetal
Dimensions
Height 50 mm | 1.969 in
Width 50 mm | 1.969 in
Length 129 mm | 5.079 in
Electrical Specifications
Return Loss, minimum 23 dB
Average Power, maximum 50 W
Impedance 50 ohm
Operating Frequency Band 0 – 3000 MHz
