Dual Voltmeter include Shunt 100A 100V Ammeter 100A Digital Volt Ammeter

Detail Dual Voltmeter include Shunt 100A 100V Ammeter 100A Digital Volt Ammeter

Spesifikasi:
Operating voltage: DC 4.5 ~ 30V
Measuring Range: 0-100V
Measure current: 100A (use external shunt)
Operating Temperature: -10 degrees~65 degrees
Accuracy Class: 1% ( 1 digit)
Display: three 0.28" LED digital tube
Display color: Red and Blue (double color display)
Measure accuracy: 1% ( 1 digit)
Operating Humidity: 10 to 80% (non-condensing)
Dimensions: 48 x 29 x 21 mm (L*W* H)
Mounting cutout: 45.5 x 26.5mm

Catatan:
- Ammeter ini wajib menggunakan Shunt Resistor 100A/75mV
- Paket sudah termasuk Shunt.

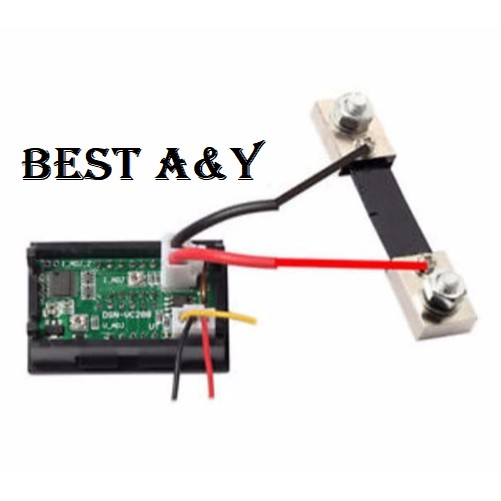

- Harap diperhatikan dalam pemasangan jangan sampai terbalik yang dapat berakibat rusaknya alat ini, lihat gambar atau ikuti panduan cara pasang kabelnya.
- Tegangan kerja tidak boleh melebihi 100V

Paket:
1x Dual Volt Ammeter 10A
1x Shunt 100A/75mV

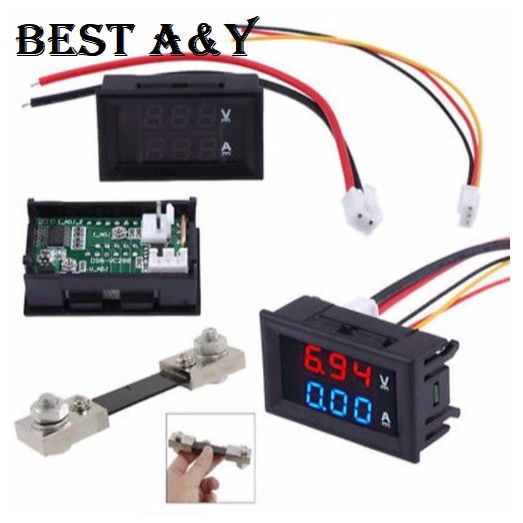

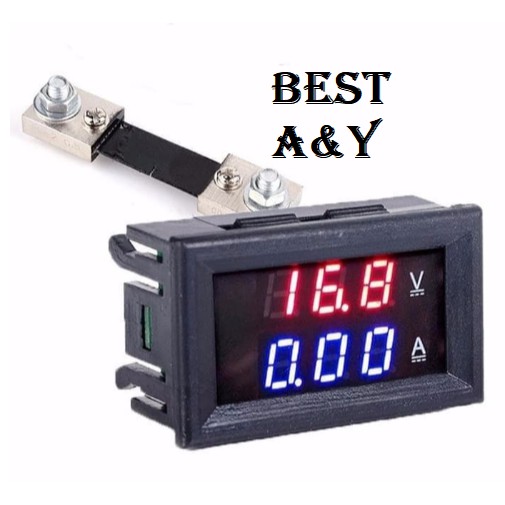

Gambar produk
