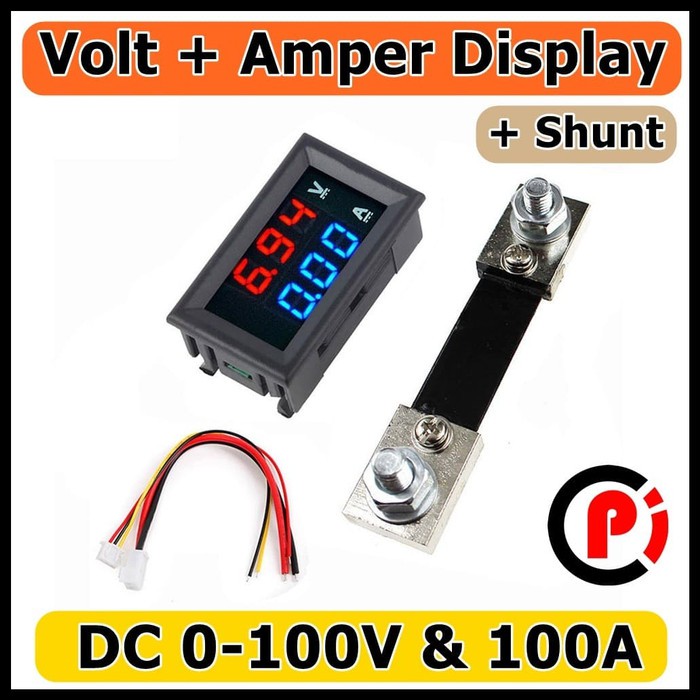

Dual Volt Amper Meter Display Tegangan 0-100V Arus 100A Plus Shunt

Detail Dual Volt Amper Meter Display Tegangan 0-100V Arus 100A Plus Shunt

harga 1pcs

DC0-100V 100A Digital Voltmeter Ammeter 2 in1 Multimeter DC4-30V Voltage Ampere Meter Volt Amp Gauge Panel Dual Display

Precautions:
1. The 50A / 100A voltage and current meter is equipped with an external shunt.
2. A meter with a range of 50A or 100A must be connected to a shunt to power up, otherwise it will burn out.

Technical Parameters:
Voltage measurement range: 0.0V-100V
Current test range:0-100A
Power supply range: DC4-30.0V (Note: If the voltage exceeds 30V, an external independent power supply is required)
Voltage error: ± 0.1%
Current error: ± 1%
External shunt specifications: 75 mOhm
Working current: <20mA
Refresh rate: about 300mS once
Display mode: double three-digit 0.28 "LED digital tube
Display color: red + blue.
Lead length: 15cm
Dimensions: 48 x 29 x 22 mm, length X width X thickness;
Mounting hole: 46 x 27 mm
Working temperature: -10 ℃ ~ 65 ℃
