Detail Dso150 15001k Set Oscilloscope Digital Elektronik Diy
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please click and give me five-star✧✧✧✧✧thanks. My product is very good quality, my price is also very Cost-effective, my friends, just enjoying your shopping here, come on baby!】
Note: This is a DIY kit, need to have some basic electronic activity and ability. SMD soldered version, operation is more easier.

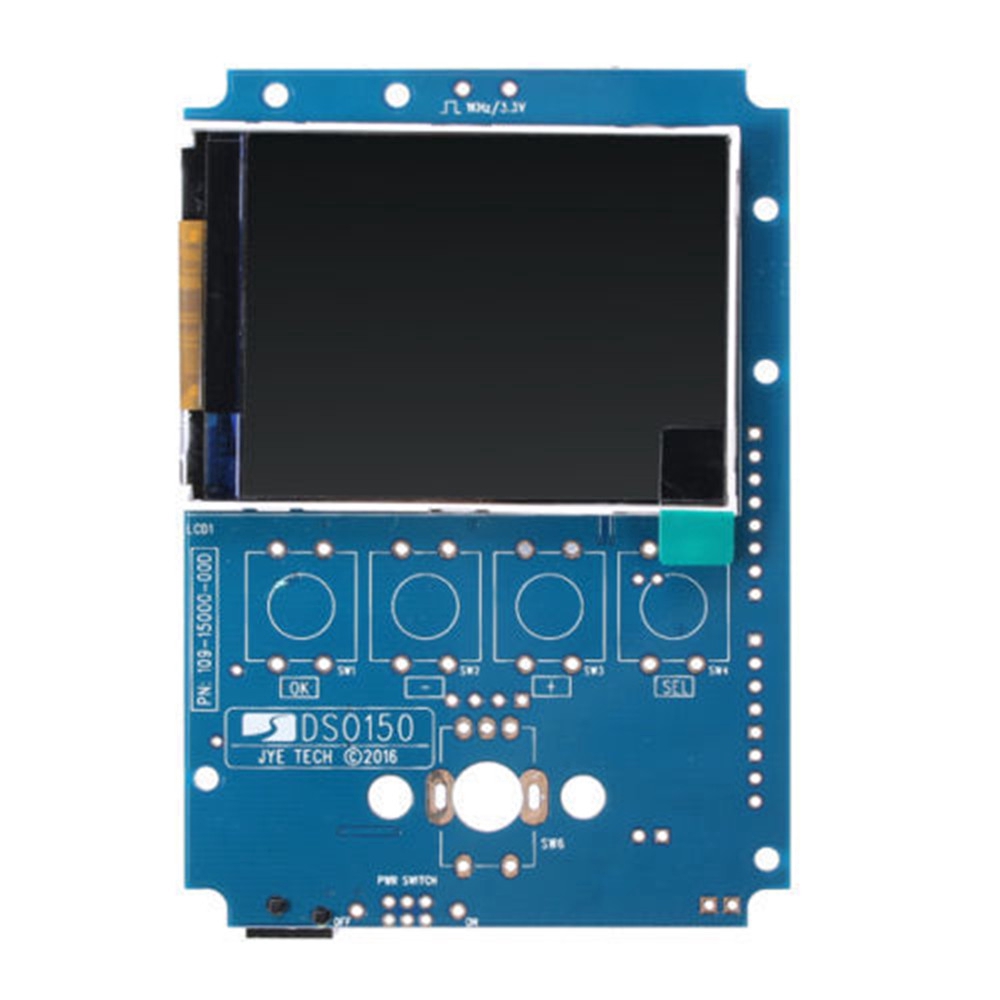

Features: Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display can be used as ARM test development board. Circuit is simple and the kit is inexpensive Characteristics of indicators: Supply voltage: DC 9V Maximum real-time sampling rate: 1Msps Accuracy: 12Bit Sampling buffer depth: 1024 bytes Analog bandwidth: 0 - 200KHz Vertical Sensitivity: 5mV / Div - 20V / Div Adjustable vertical displacement, and with instructions Input impedance: 1MΩ Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe) Coupling modes: DC / AC / GND The horizontal time base range: 10μs / Div - 50s / Div (1-2-5 progressive manner) With automatic, regular and one-shot mode, easy to capture the moment waveform Available rising or falling edge trigger Adjustable trigger level position, and with instructions Observable previous trigger waveform (negative delay) Can freeze at any time waveform display (HOLD function) Comes 1Hz /3.3V square wave test signal source

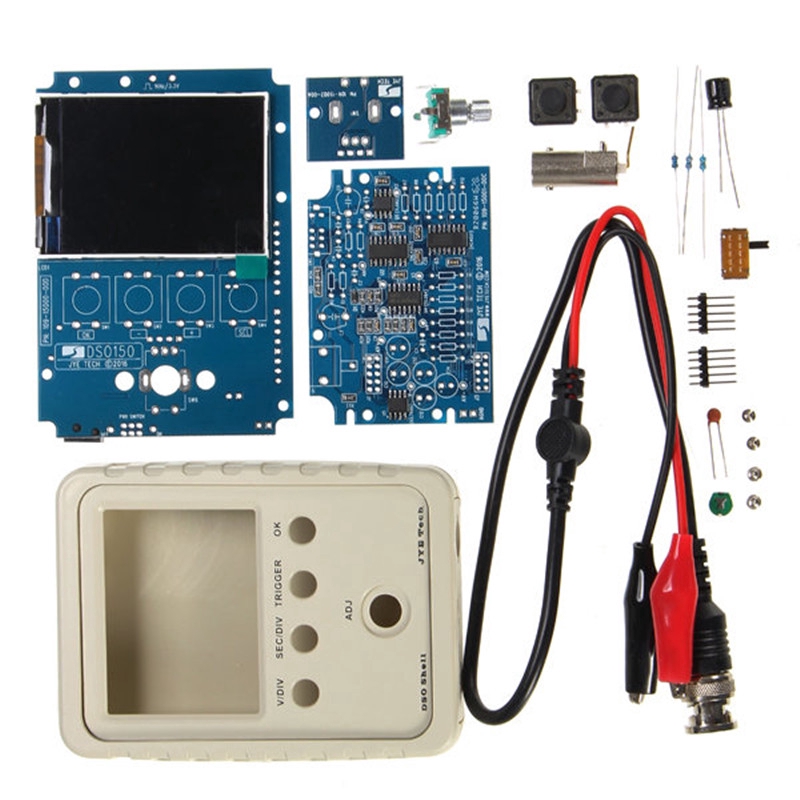

Package included: 1 x DIY DS0150 Digital Oscilloscope Kit
