DS3231 RTC DS3231SN Module tanpa baterai

Detail DS3231 RTC DS3231SN Module tanpa baterai

Hi #RekanEasyWare ...
- EasyWare Part# [DS3231SN]: EP000559
- EasyWare Part# [DS3231M]: EP000669

Catatan:
- Ada 2 varian dalam link produk ini.
- Stok produk saat ini adalah HW-084, tapi sebagian (hanya tersisa beberapa pcs) ada yang bukan HW-084 tetapi tetap chip DS3231SN. Untuk pengiriman akan kami kirim random.

DS3231 RTC is a Precise Real-Time Clock Module with 32Kbit EEPROM and a built-in 10-bit temperature sensor having a resolution of 0.25C.
The DS3231 RTC module Precise Real-Time Clock Module is a low-cost, extremely accurate I²C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted.
The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The ds3231 Arduino is available in commercial and industrial temperature ranges and is offered in a 16-pin, 300-mil SO package.

Features :
- Two Time-of-Day Alarms.
- Digital Temp Sensor Output.
- Register for Aging Trim.
- DS 3231 RTC with 2032 Battery Holder.
- Highly Accurate RTC Completely Manages All Timekeeping Functions.
- Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year, with Leap-Year Compensation Valid Up to 2100.

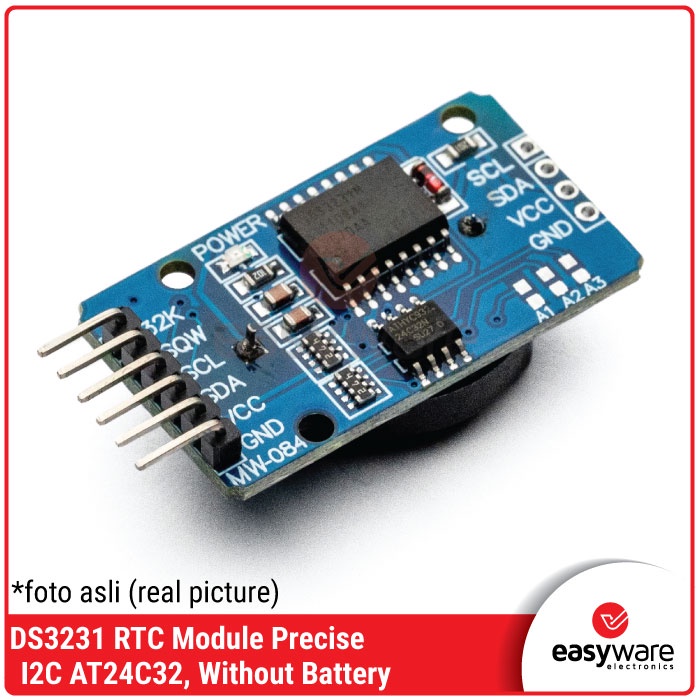

- Configurable I2C device Address for AT24C32 using SMD jumpers on PCB (A0, A1, A2).
- Programmable Square-Wave Output Signal.
- Battery-Backup Input for Continuous Timekeeping.
- Low Power Operation Extends Battery-Backup Run Time.

Spesifications :
- Operating Voltage (VDC): 2.7 ~ 5.5
- Voltage Supply for RTC: 2.2 V ~ 5.5 V
- Battery Holder: 2032 Coin Battery
- I2C interface: Fast (400kHz) I2C Interface
- EEPROM: AT24C32 32Kbit Serial I2C
- Time and Date Format: Time: HH: MM: SS (12/24 hr). Date Format: YY-MM-DD-dd
- Operating Temperature Range (°C): -40 to 85
- Digital Temp Sensor Output: 10 bit, ±3°C Accuracy and 0.25C resolution

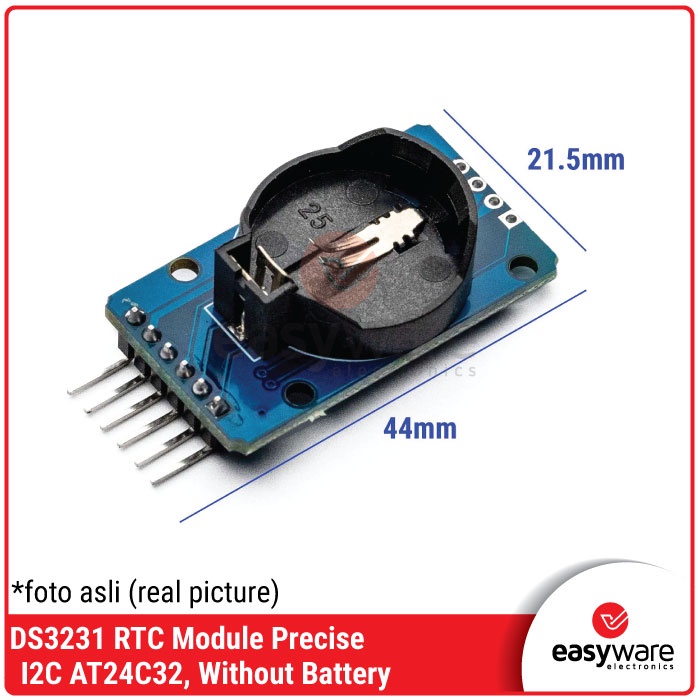

- Dimensions in mm (LxWxH): 38 x 22 x 14
- Weight: 8 gram

Package :
- 1x RTC DS3231 Module ATC02 without battery

Gambar produk
