DS18B20 TO-92 Digital Temperature sensor ic ds18b20

Elektronik > Elektronik Lainnya > DS18B20 TO-92 Digital Temperature sensor ic ds18b20
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:EasyWare ElectronicsLihat semua produk Elektronik oleh EasyWare Electronics
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail DS18B20 TO-92 Digital Temperature sensor ic ds18b20

Hi #RekanEasyWare ...
EasyWare Part#: EP000296

Desciption :
- 1-Wire interface requires only one of your controller's I/O pins for communication
- Unique 64-bit serial code stored in an on-board ROM
- Thermometer resolution is selectable from 9 to 12 Bits
- Converts temperature to 12-Bit digital word in less than 750ms

Spesifications :
- Supply Voltage VDD 3.0 to 5.5 V
- Input Logic Level VIH 3.3 to 5 V
- Standby Current IDDS 750 to 1000 nA
- Active Current IDD 1 to 1.5 mA
- Temperature Measure Range -55°C to +125°C (-67°F to +257°F)
- Temperature Accuracy ±0.5°C from -10°C to +85°C
- Package TO-92

Kelengkapan:
- 1x DS18B20 TO-92, not original

Gambar produk

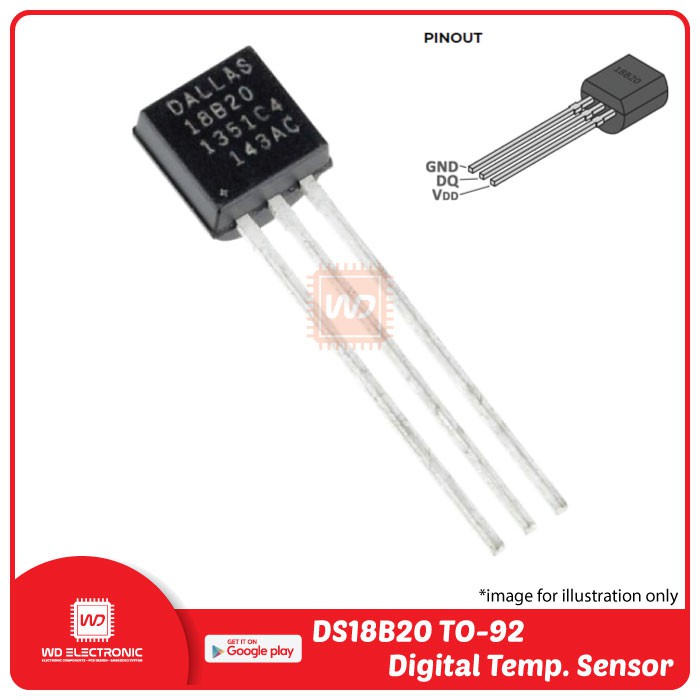

DS18B20 TO-92 Digital Temperature sensor ic ds18b20
DS18B20 TO-92 Digital Temperature sensor ic ds18b20
Lihat lebih banyak informasi produk
