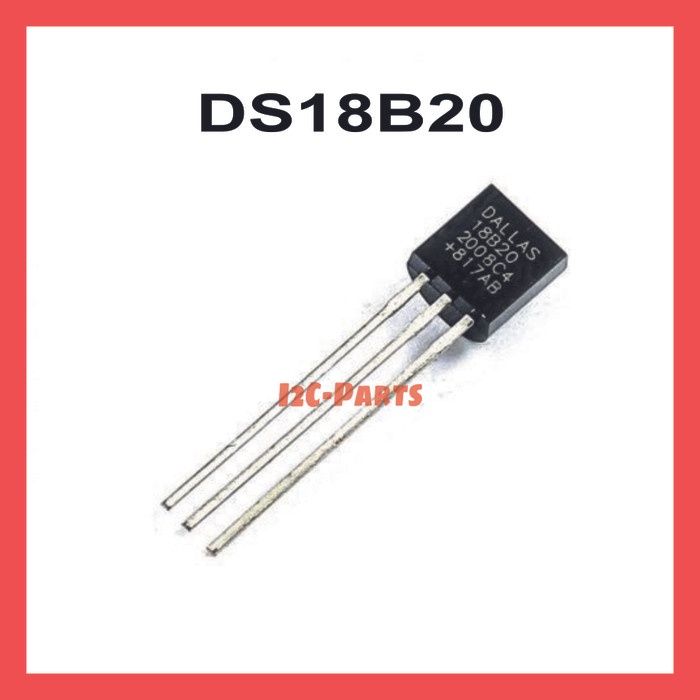

Detail DS18B20 TO-92 Digital Temperature Sensor IC ds18b20 Sensor Suhu

Desciption :
- 1-Wire interface requires only one of your controller's I/O pins for communication
- Unique 64-bit serial code stored in an on-board ROM
- Thermometer resolution is selectable from 9 to 12 Bits
- Converts temperature to 12-Bit digital word in less than 750ms

Spesifications :
- Supply Voltage VDD 3.0 to 5.5 V
- Input Logic Level VIH 3.3 to 5 V
- Standby Current IDDS 750 to 1000 nA
- Active Current IDD 1 to 1.5 mA
- Temperature Measure Range -55°C to +125°C (-67°F to +257°F)
- Temperature Accuracy ±0.5°C from -10°C to +85°C
- Package TO-92
