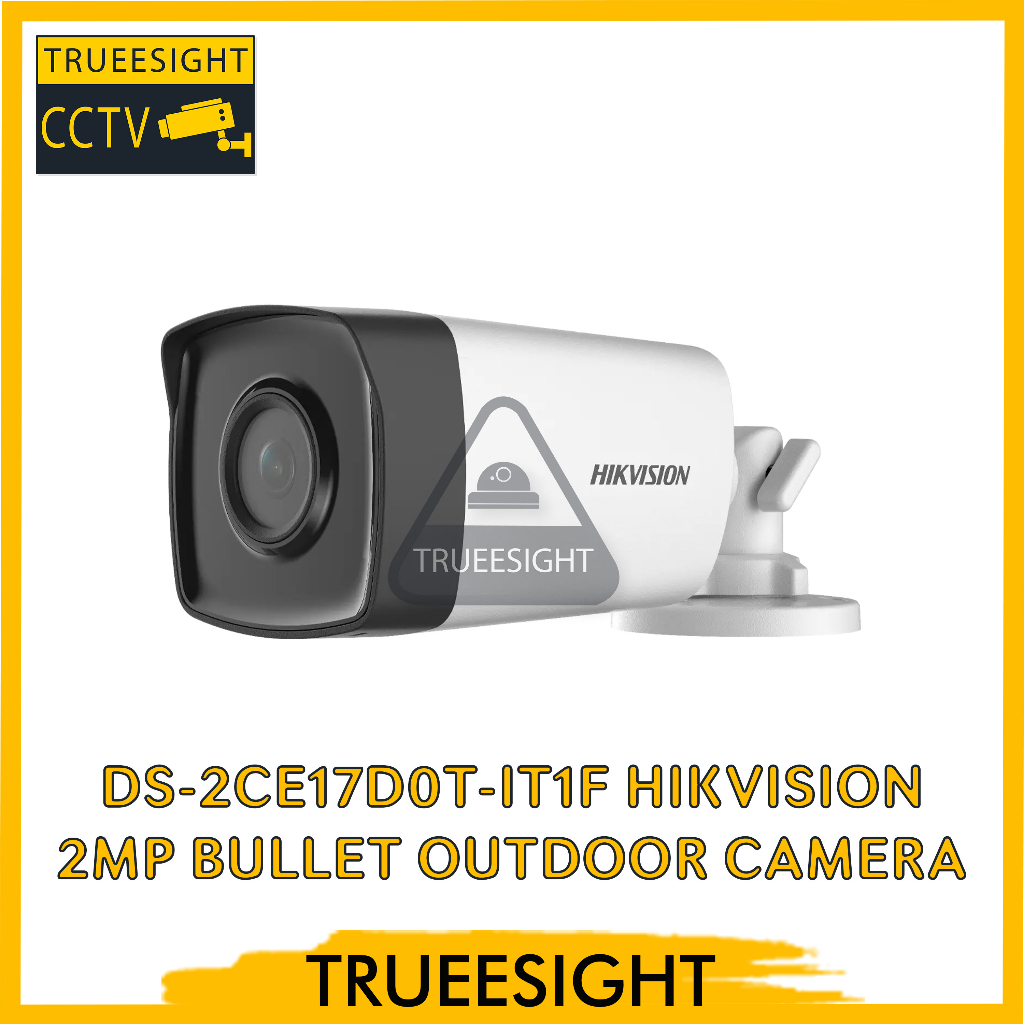

Detail DS-2CE17D0T-IT1F Hikvision 2mp Bullet Outdoor Camera
2 MP Fixed Bullet Camera
- High quality imaging with 2 MP, 1920 × 1080 resolution - 2.8 mm, 3.6 mm, 6 mm fixed focal lens - Up to 30 m IR distance for bright night imaging - One port for four switchable signals (TVI/AHD/CVI/CVBS) - Water and dust resistant (IP67)
Camera Image Sensor 2 MP CMOS Max. Resolution 1920 (H) × 1080 (V) Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night ICR Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° Signal System PAL/NTSC Lens Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens Focal Length & FOV 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
Lens Mount M12 Image Image Parameters Switch STD/HIGH-SAT Image Settings Brightness, Sharpness, Smart IR Frame Rate TVI: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC
Day/Night Mode Auto/Color/BW (Black and White) Wide Dynamic Range (WDR) Digital WDR Image Enhancement DWDR/BLC/HLC/Global Noise Reduction Yes White Balance Auto/Manual AGC Yes Interface Video Output Switchable TVI/AHD/CVI/CVBS General Material Front Cover: Metal
Main Body: Plastic
Dimension 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53") Approx. 320 g (0.71 lb.) Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) Communication HIKVISION-C Language English Power Supply 12 VDC ± 25% Consumption Max. 2.2 W IR Range Up to 30 m Approval Protection IP67
