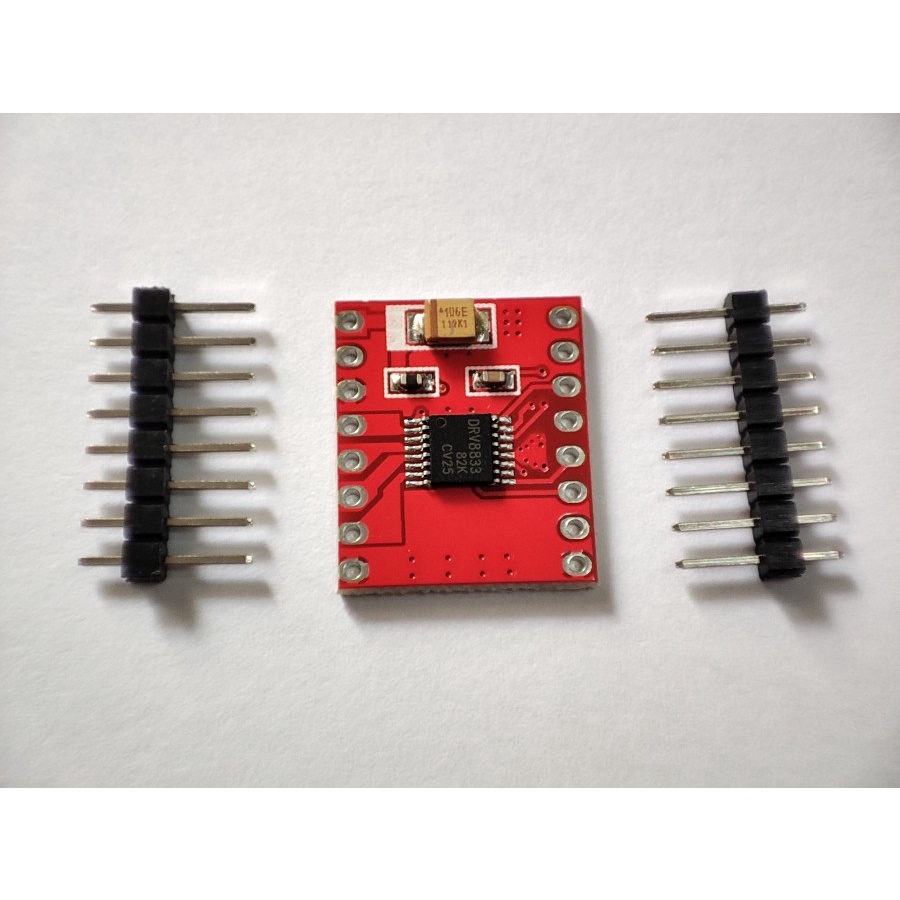

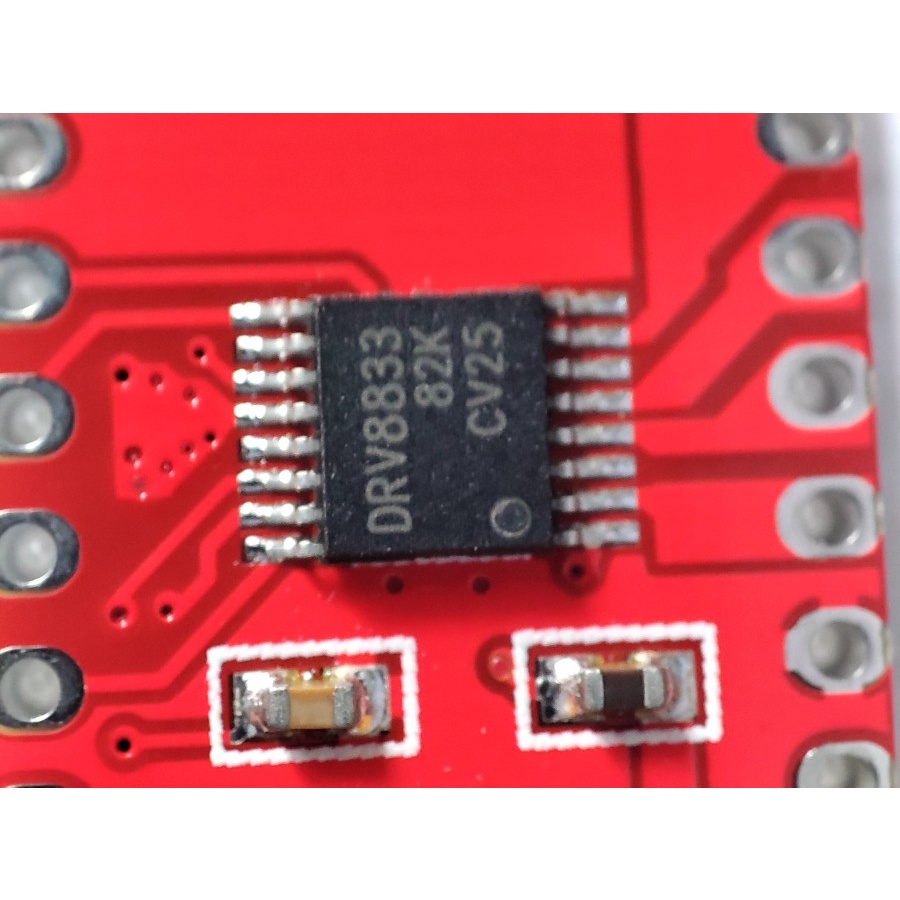

Detail DRV8833 Dual DC Stepper Motor Driver Controller Board Module arduino
DRV8833 DC motor drive module driver drive board replaces TB6612FNG description The DRV8833 motor drive module can directly replace the TB6612 drive module, and its pins are basically fully compatible.
Features introduction: Size: 18* 21mm Input voltage: 2.7 V – 10.8 V Single H-bridge output current: 1.5A, can drive 2 DC geared motors. Built-in overcurrent protection, short circuit protection, undervoltage lockout and overheat protection. With low-power sleep mode. Uses: It can drive DC motor below 1.5A and 4-wire stepper motor.

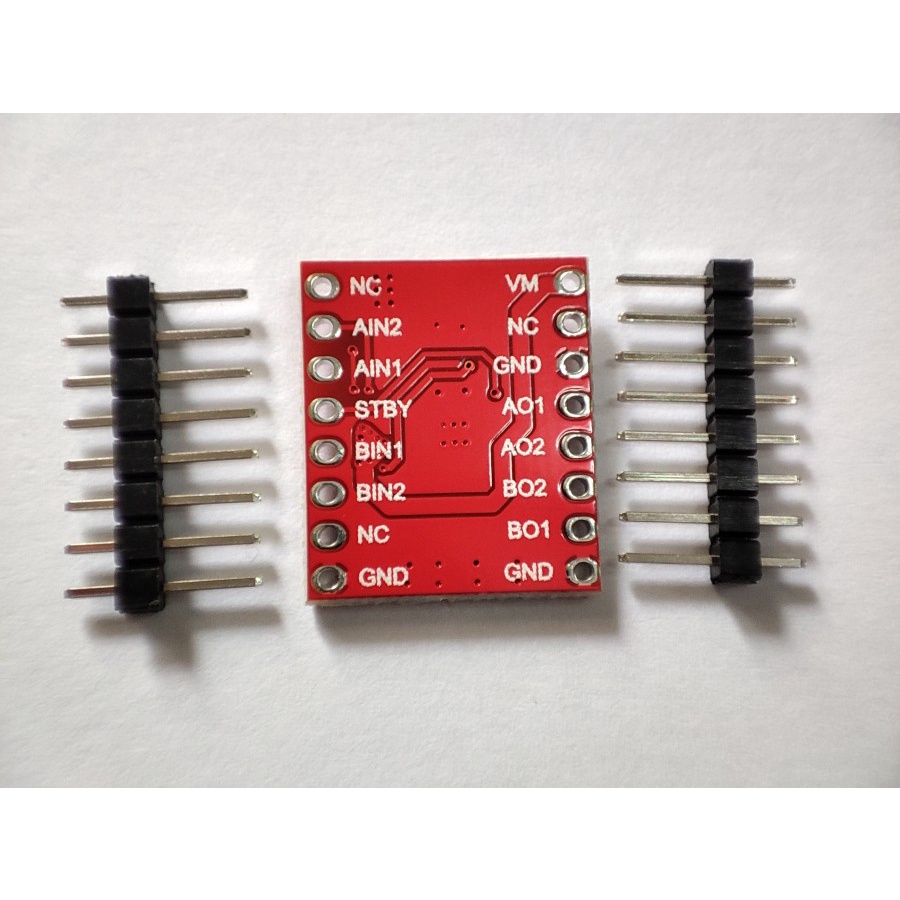

Pin description: ANI1: AO1 logic input control port, level 0-5V. AIN2: AO2 logic input control port, level 0-5V. BNI1: The logic input control port of BO1, level 0-5V. BIN2: Logic input control port of BO2, level 0-5V. AO1 and AO2 are 1-channel H-bridge output ports, which are connected to the two feet of a DC motor. BO1 and BO2 are 2-way H-bridge output ports, which are connected to the two feet of another direct motor. GND: ground.
VM: chip and motor power supply pin, voltage range 2.7 V – 10.8 V.
STBY: The ground or floating chip does not work, no output, connect to 5V to work; level 0-5V.
NC: empty foot
H-bridge logic drive: xIN1 xIN2 xO1 xO2 Features 0 0 Z Z Inertia running/fast decay 0 1 L H Reverse 1 0 H L Forward 1 1 L L Braking/slow decay
PWM control motor speed: xIN1 xIN2 Features PWM 0 Forward PWM, fast decay 1 PWM Forward PWM, slow decay 0 PWM Reverse PWM, block speed attenuation PWM 1 Reverse PWM, slow decay
