DRV8833 2 Channel DC Motor Driver Module Board for Arduino

Detail DRV8833 2 Channel DC Motor Driver Module Board for Arduino

Hi #RekanEasyWare ...
EasyWare Part#: EP000834

Fitur:
- Single H bridge output maximun current 1.5A, can drive 2 DC geared motor
- ULT PIN: Mode set, Low level is sleep mode
- OUT1,OUT2: 1-channel H-bridge controlled by IN1/IN2
- OUT3,OUT4: 2-channel H-bridge controlled by IN3/IN4
- EEP PIN: Output protection. Default no need to connect
- VCC: 3-10V

Spesifikasi:
- Input Voltage: 3-10V
- Overcurrent Protection: Yes
- Short circuit protection: Yes
- Undervoltage lockout: Yes
- Overheating protection: Yes
- With a low-power sleep mode

Aplikasi:
- DC Motor which drive current is less than 1.5A
- 4-wire step motor

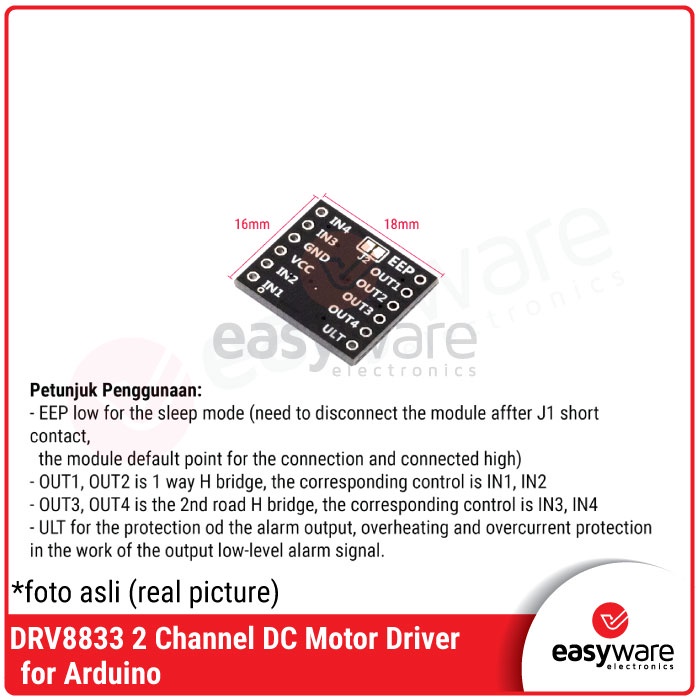

Petunjuk penggunaan:
- EEP low for the sleep mode (need to disconnect the module affter J1 short contact,
the module default point for the connection and connected high)
- OUT1, OUT2 is 1 way H bridge, the corresponding control is IN1, IN2
- OUT3, OUT4 is the 2nd road H bridge, the corresponding control is IN3, IN4
- ULT for the protection od the alarm output, overheating and overcurrent protection in the work of the output low-level alarm signal.

Kelengkapan:
- 1x DRV8833 2 Channel DC Motor Driver Module Board for Arduino
