drop cable fiber optic SC/UPC to SC/UPC Single Mod simplex Outdor 80 Meter

Detail drop cable fiber optic SC/UPC to SC/UPC Single Mod simplex Outdor 80 Meter

Deskripsi drop cable fiber optic SC/UPC to SC/UPC single mod simplex outdoor 80m
The fiber optic drop cable patch cord has two connectors in each end of the cable to make connection; pigtail cable is one cable with a connector. The connectors are with SC type, ceramic ferrule to be polished as UPC . A SM convertion patch cord is with two different connector.

FTTH Optical fiber patch cord is made up by optical communication unit, strengthen pieces and the sheath composition, that is put the optical communication unit in the middle, both sides parallel place two root non-metallic strengthen members or metal strengthening component phosphate steel wire, finally squeeze the black sheath into cable.

This type of drop cable is single fiber, three steel wire strengthen, 80 meters length,

Features:

Special bending resistance of optical fiber, offer more bandwidth and enhance network transmission characteristic, easily achieve 100 M per second, and realize the broadband, CATV and phone combination of three nets.

Two of the parallel strengthen pieces make cable has good compression performance, protection of optical fiber.

Cable simple structure, light weight, the function is strong.

The unique groove design, easy separating, convenient in, easy installation and maintenance

80 Meters FTTH Fiber Optic Drop Cable SC UPC Single Mode Simplex G657A Outdoor Optical Fibre Optic Cable Drop Cable Fibra Optica

Specification:

Insertion Loss: ≤0.3dB
Return Loss: PC≥45dB UPC≥50dB APC≥60dB
Mating Times: Over 1000
Temperature: -40°C~+60°C
Tensile Strength: 45kg
Vibration Test: <0.1dB(5-50Hz, 1.5SM amplitude)

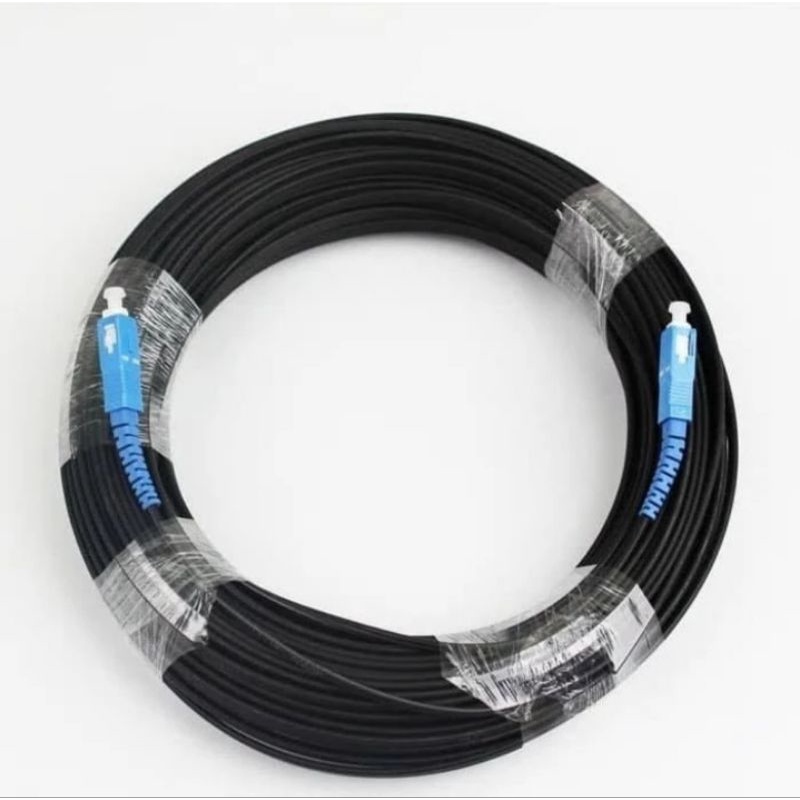

Gambar produk
