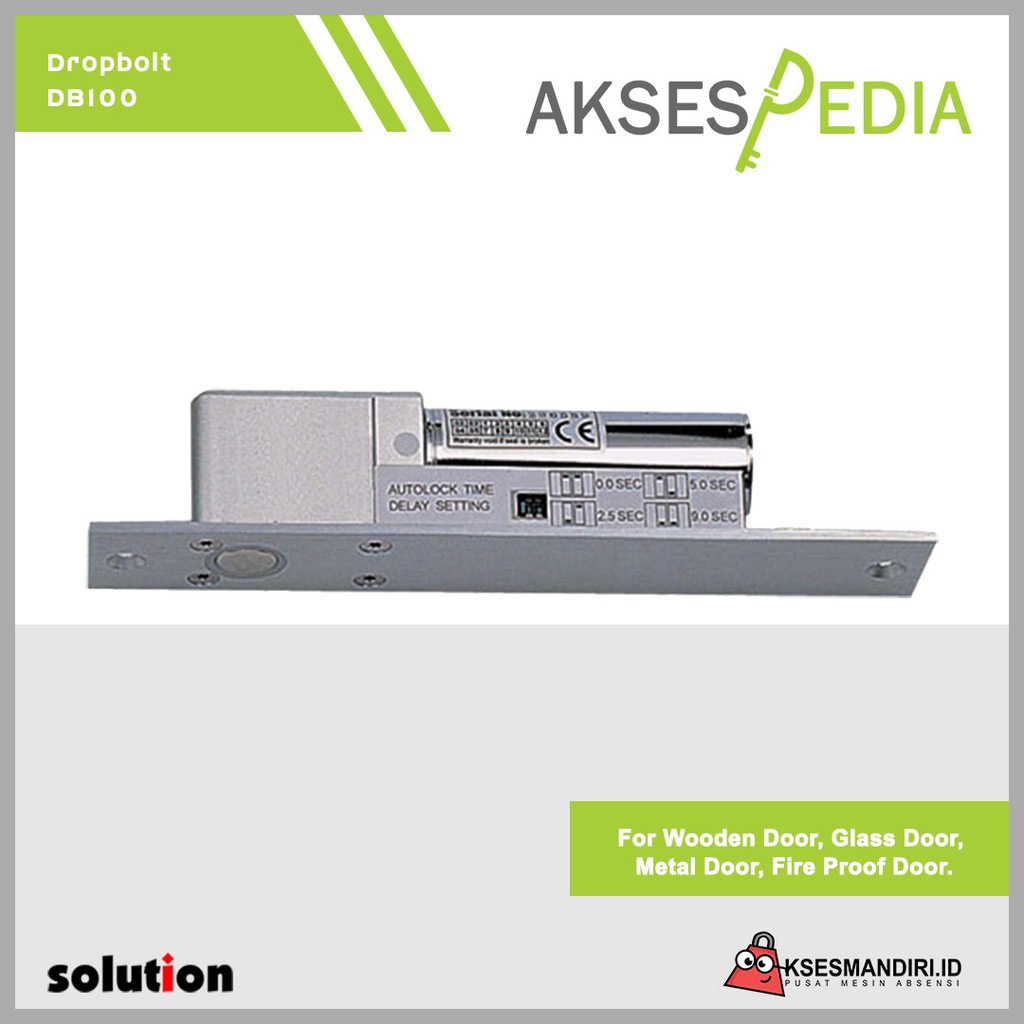

Detail Drop Bolt + Bracket Solution DB 100

Face plate : 205Lx35Wx40H(mm)
Strike Plate : 90L x 25W x2H(mm)
Cover Plate : 205Lx35Wx40H(mm)
Face plate :215L x 40W x 0.7H(mm)
Bolt : 16mmDIA,stainless 16mm throw
Quality : Aluminium panel with strongly style and Stainless steel
Dual Voltage : DC12V
Current Draw : Start 900Ma Standby 100mA
Time : 0/3/6/9sec.(optional)
Signal Output : Door status sensor
Fail Safe : Locked when energized
Safety function : Built-in voltage spike suppressor
Performance Testing :five hundred thousand times aging test
Patent Designed : Low temperature
Opening Mode : 180 degree swinging door
Suitable For :Wooden Door, Glass Door, Metal Door, Fire Proof Door.
Authority Certification : CE & MA approved
Net Weight : 0.7kg

Spesifikasi Bracket :
Suitable for model : DB-100
Standard Structure : Stainless steel panel
Suitable For : Fully Frameless Glass door
Opening Mode : 180 degree swing double door
Glass Thickness : 8~15mm
Size : 205L x 58M x 46H(mm)
Net Weight : 1.6kg
