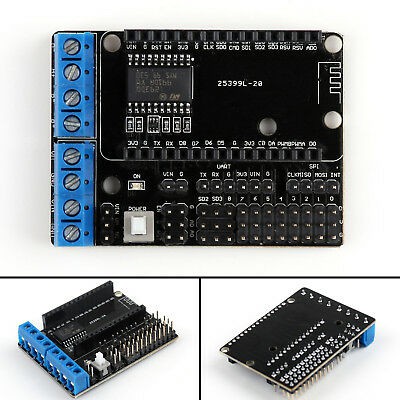

Detail Driver Motor Shield L293D Board ESP8266 ESP-12S NodeMCU LOLIN
Modul ini untuk versi amica gan, CP2102
Power input: Driver Motor Shield L293D Board ESP8266 ESP-12S NodeMCU
Motor power supply (VM): 4.5V ~ 36V, can be powered separately Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately Module provides short-circuit sub (short the VM and VIN), you can easily use one power (must 4.5V ~ 9V) while completing motor drive and control Logic Operating current Iss: 60mA (Vi = L), 22mA (Vi = H) Drive part of the work current Io: 1.2A Maximum power dissipation: 4W (T = 90 ) Control signal input level: High: 2.3VVIHVIN; Low: -0.3VVIL1.5V Working temperature: -25 ~ + 125 Drive Type: Dual high-power H-bridge driver ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor) Expand two-way motor-driven, two-way direct drive motor Onboard power switch Motor power, control power separation; In the experiment, by short-circuiting block the merger, the VIN and VM short, while power to the motor and the control board
