Driver LED 20W 30W 50W 100W DC Step Up Boost Converter 10A CV 150W

Detail Driver LED 20W 30W 50W 100W DC Step Up Boost Converter 10A CV 150W

Driver LED 20W 30W 50W 100W DC Step Up Boost Converter 10A CV 150W

Spesifikasi:
Module Properties : non-isolated step-up module (BOOST)
Input voltage : DC 10-32V
Output voltage : DC 12-35V (adjustable)
Output Current : 6A (MAX)
Input Current : 10A (MAX) (jika lebih dari 10A perlu tambahan heatsink)
Output power : normal cooling 100W (MAX), extra heatsink / fan 150W (MAX)
Conversion efficiency : 94% (measured at Input 16V, output 19V 2.5A)
Output Ripple : 2% (MAX) 20M-bandwidth
Operating Temperature : Industrial (-40c to +85c) (ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)
Full load temperature rise : 45c
No-load current : 25mA typical
Voltage regulation : 0.5%
Dynamic response speed : 5% 200uS
Short circuit protection : None (jika dibutuhkan pasang seri dioda arus besar pada inputnya)
Input Reverse Polarity Protection : None (Please Series diode at the input port.)
Dimensi : 65mm x 56.5mm x 23mm

Aplikasi:
Driver LED 20W 30W 50W 100W
Power supply laptop / notebook 65W - 90W
Dan perangkat elektronik lain-lain.

Catatan:
Tegangan output harus lebih besar dari tegangan input paling tidak 2V
Polarisasi Input tidak boleh terbalik, kecuali sudah dipasang Dioda di inputnya sebagai proteksinya.

Paket: 1x DC Boost Module

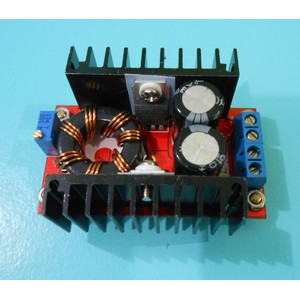

Gambar produk
