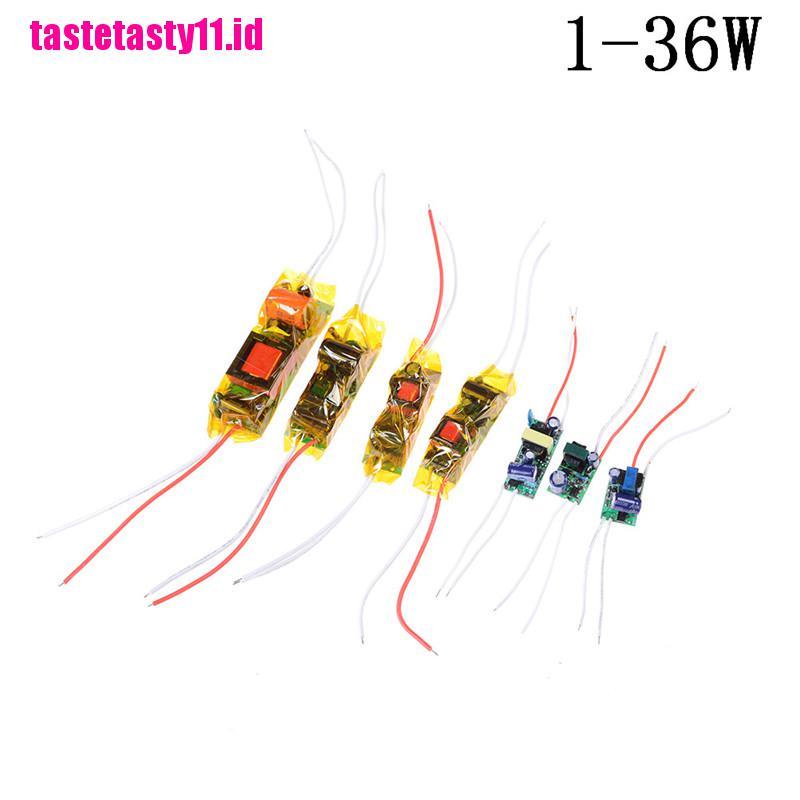

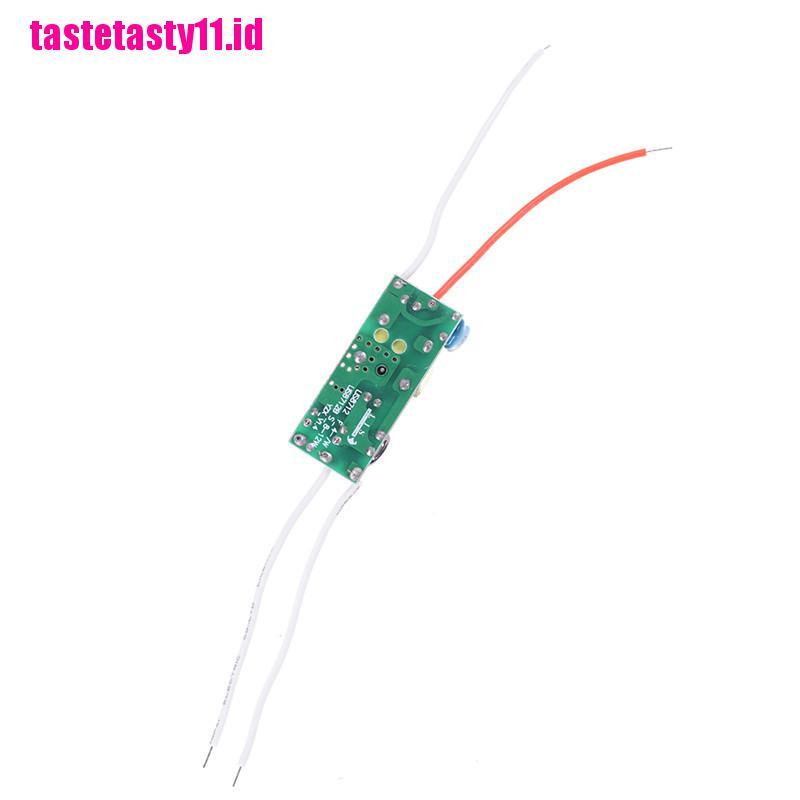

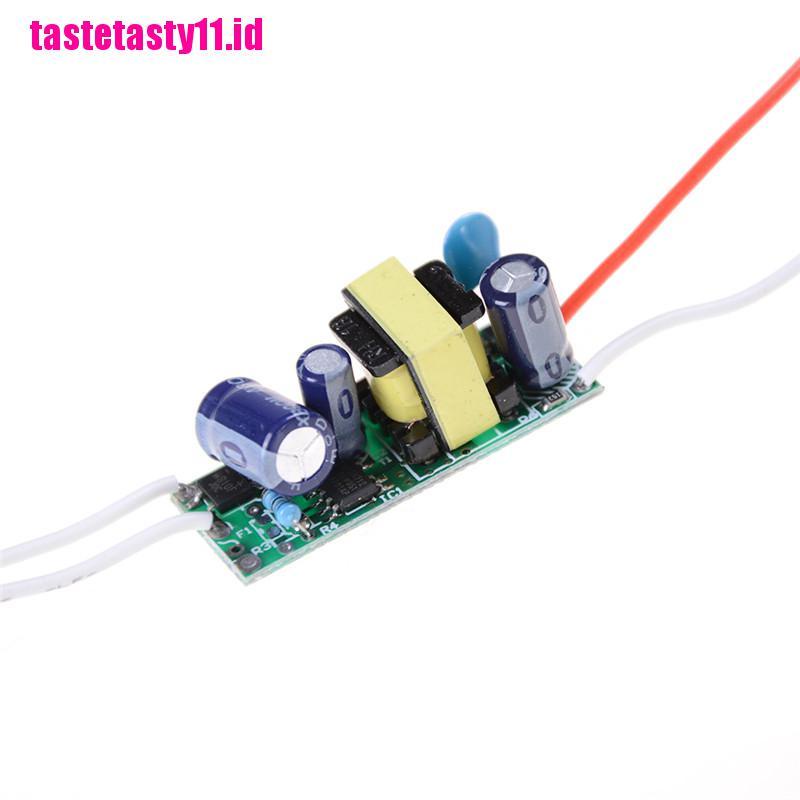

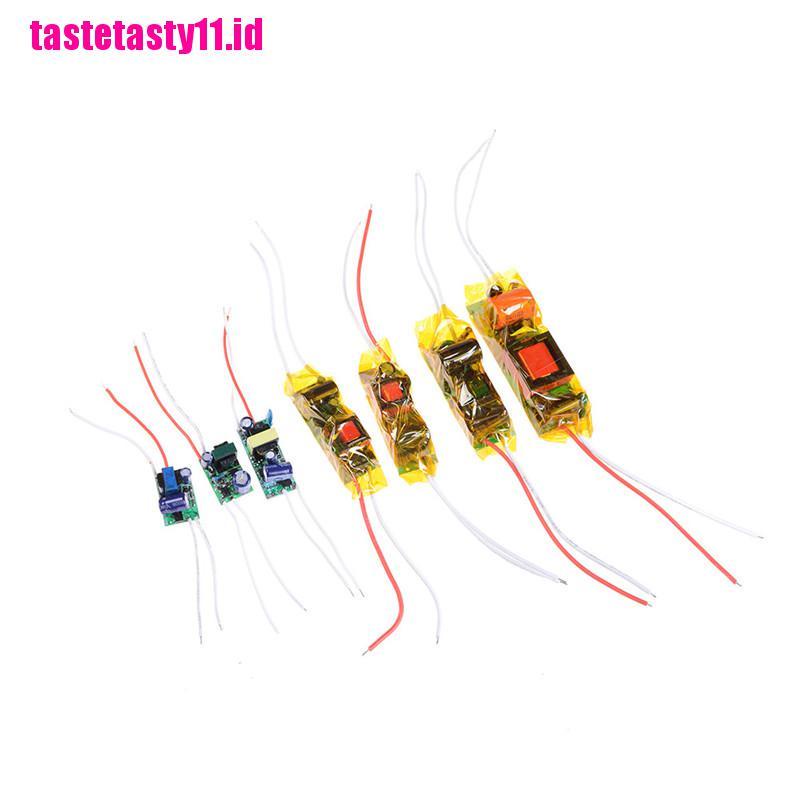

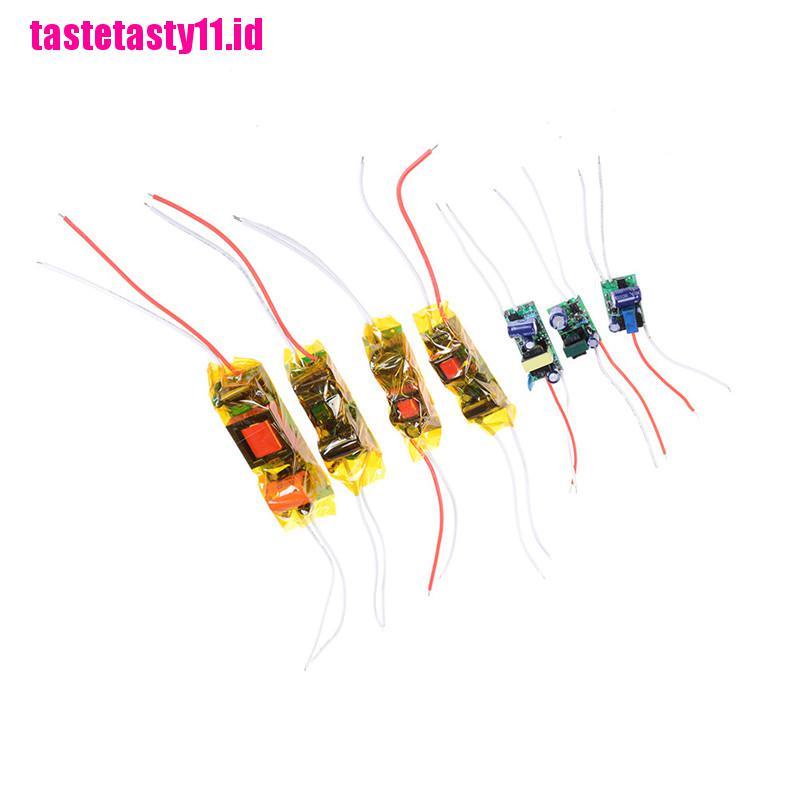

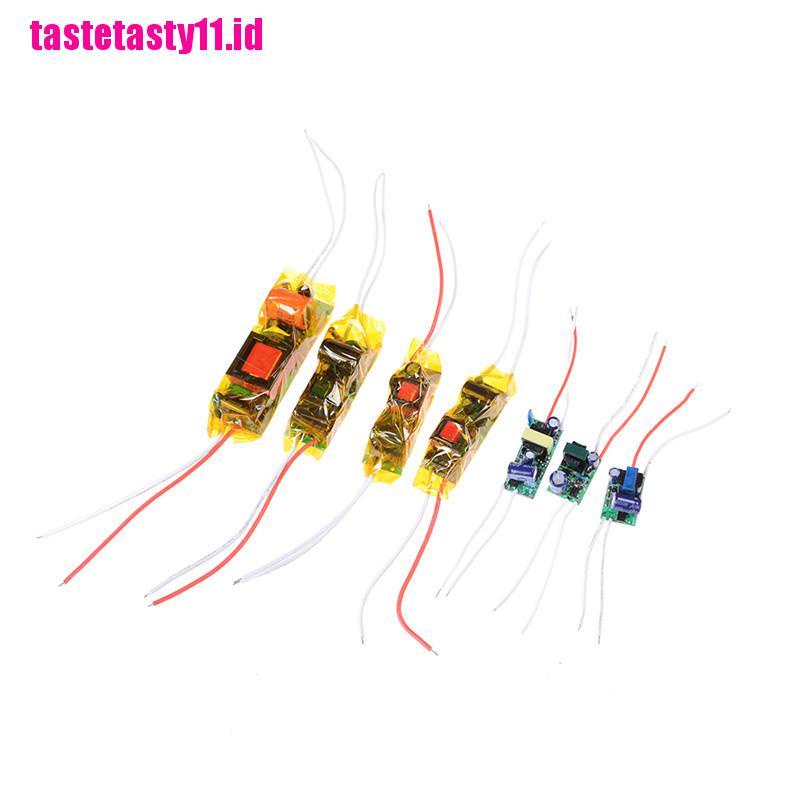

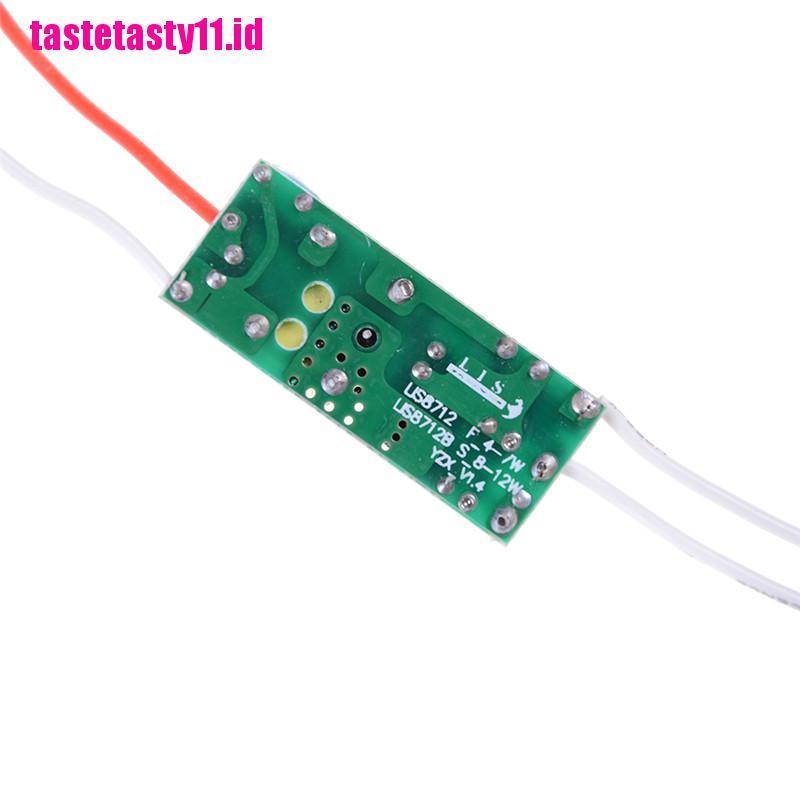

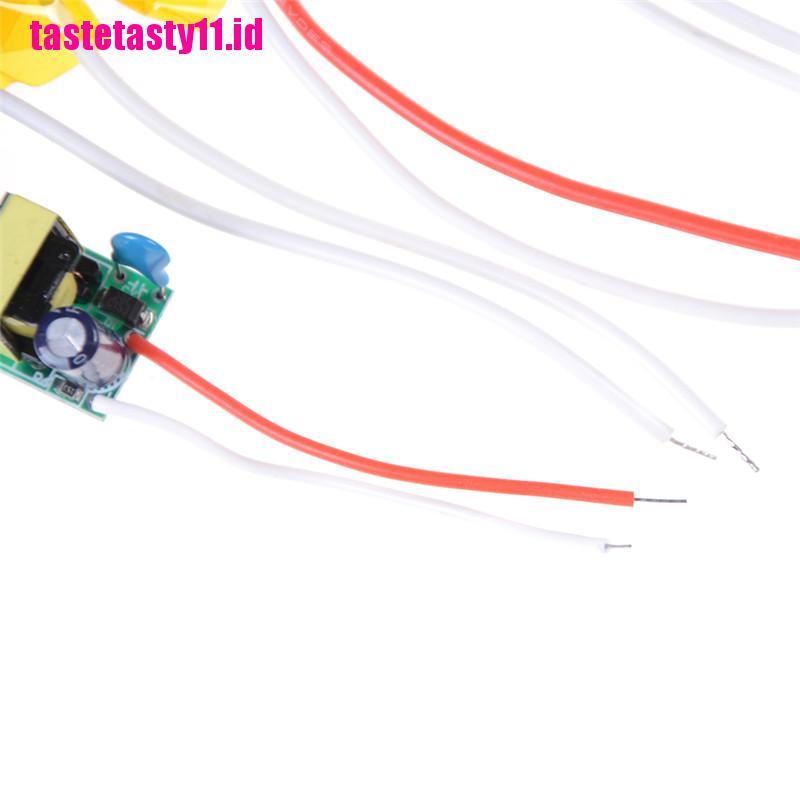

Driver Input Power Supply LED 1-36W AC100-265V Arus Konstan

Detail Driver Input Power Supply LED 1-36W AC100-265V Arus Konstan

Description
The product is constant current isolated, built-in LED drive power, with open circuit, short circuit, over-voltage, overload, isolation, IC constant current function, can better protect the LED light source, stable and durable.
Ouput Current: 260-280mA
Input Voltage:
1-3W AC 100~265V
3-5W AC 100~265V
4-7W AC 100~265V
8-12W AC 100~265V
12-18W AC 100~265V
18-24W AC 100~265V
25-36W AC 100~265V
Output Voltage:
1-3W DC 3~12V
3-5W DC 9~18V
4-7W DC 12~26V
8-12W DC 24~44V
12-18W DC 36~65V
18-24W DC 54~90V
25-36W DC 75~130V
Size:
1-3W ： Approx 25 * 16 * 14mm
3-5W ： Approx 25 * 16 * 15mm
4-7W ： Approx 38.5 * 15.5 * 16mm
8-12W ： Approx 52 * 20 * 16mm
12-18W ： Approx 59.5 * 24 * 16mm
18-24W ： Approx 62* 26 * 17mm
25-36W ： Approx 78 * 28.5 * 17mm

Gambar produk
