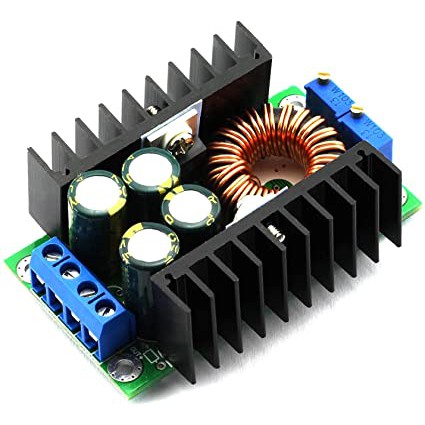

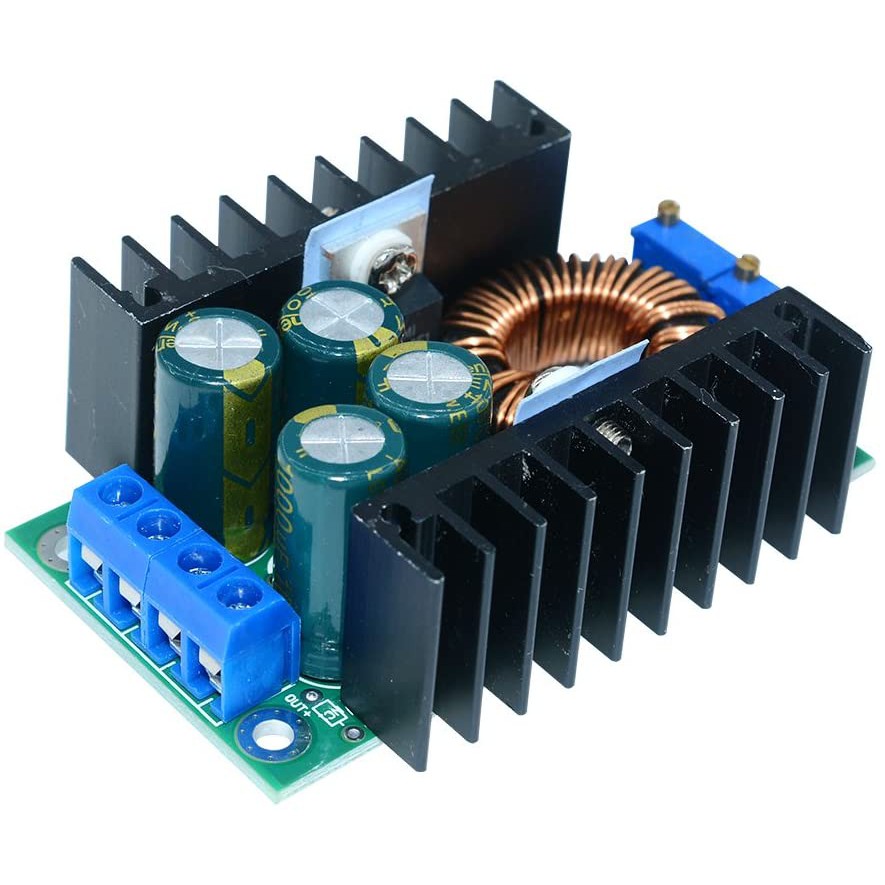

Driver DC-DC Converter Step Down 9A 300W G226

Detail Driver DC-DC Converter Step Down 9A 300W G226

-Input voltage: DC 7-32V
-Output voltage: (1) DC 0.8-28V continuously adjustable. (2) Fixed output:Choose between 0.8v-28v
-Output Current: 8A (when power tube's temperature exceeds 65 degrees, please add cooling fan)
-Constant current range: 0.2-8A ( adjustable )
-Turn lamp current: Constant current value * ( 0.1 ) , turn the lamp current and constant value linkage,
such as constant current value is 3A, turn the lamp current is set to a constant current is 0.1 times (0.1 * 3A = 0.3A).
-Lowest pressure: 1V
-Output Power: Maximum power is about 300W
-Conversion efficiency: Up to about 95%
-Operating frequency: 300KHZ
-Output ripple: 20M bandwidth
-Input 24V output 12V 5A ripple around 50mV (Excluding noise)
-Output short circuit protection : Yes, constant current
-Input reverse polarity protection: None
-Output prevent backflow: None
-Wiring: Terminal
-No-load current: Typical 20mA (24V switch 12V)
-Load regulation: ± 1% ( constant )
-Voltage regulation: ± 1%
-Dynamic response speed: 5% 200uS
-Potentiometer adjustment direction: clockwise (increase) , counterclockwise (decrease),
the potentiometer(CV) closed to the input voltage is used to regulate voltage, the potentiometer(CC)
closed to output voltage is used to regulate current (CC)
-Operating temperature: Industrial grade (-40 °C to +85 °C) ( please note the actual use
of the power tube temperature , high temperature heat strengthened)
-Indicator: dual color indicator, charging indicator light is red, the green light means
fully charged ( No load is green )
-Size(approx): 65 x 47 x 22mm (L x W x H)
-Precision of constant current and temperature: On the actual test, the module temperature from 25 degrees
to 60 degrees, the constant current value change is less than 5% (5A constant current value)
-Output short circuit protection: Yes,Constant current (the current setting constant current value)
-Input reverse connect protection: NO
-Output prevent reverse flow: NO
-Wiring Method: amphenol connector
