Downloader ESP32-CAM Programmer CH340 Board ESP32-CAM Downloader

Detail Downloader ESP32-CAM Programmer CH340 Board ESP32-CAM Downloader

Hi #RekanEasyWare ...
EasyWare Part#: EP000498

This module can work independently as the smallest system. A brand-new WiFi+Bluetooth dual-mode development board is based on the ESP32 design, uses PCB onboard antennas, is equipped with two high-performance 32-bit LX6CPUs, uses a 7-stage pipeline structure, and the main frequency adjustment range is 80MHz to 240Mhz. Ultra-low power consumption, deep sleep current as low as 6mA. It is an ultra-small 802.11b/g/n Wi-Fi+BT/BLE SoC module HK-ESP32-CAM-MB with a micro USB interface, convenient and reliable connection, and convenient for various IoT hardware terminal occasions.

HK-ESP32-CAM-MB adopts a micro USB interface, which is convenient and reliable in connection mode, which is convenient and suitable for various IoT hardware terminal occasions.

Fitur:
- Dual-core processor can be used as a low-power dual-core processor.
- The main frequency is up to 240MHz, and the computing capacity is up to 600dmips
- Built-in 520 KB SRAM, external 8MB PSRAM
- Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
- Support OV70 flash and OV2640
- Support picture WiFI upload
- Support TF card
- Support multiple sleep modes.
- Embedded Lwip and FreeRTOS
- Support STA/AP/STA+AP working mode
- Support smart configuration/AirKiss one-key network configuration
- Support secondary development

Kelengkapan:
- 1x Downloader ESP32-CAM Programmer CH340 Board

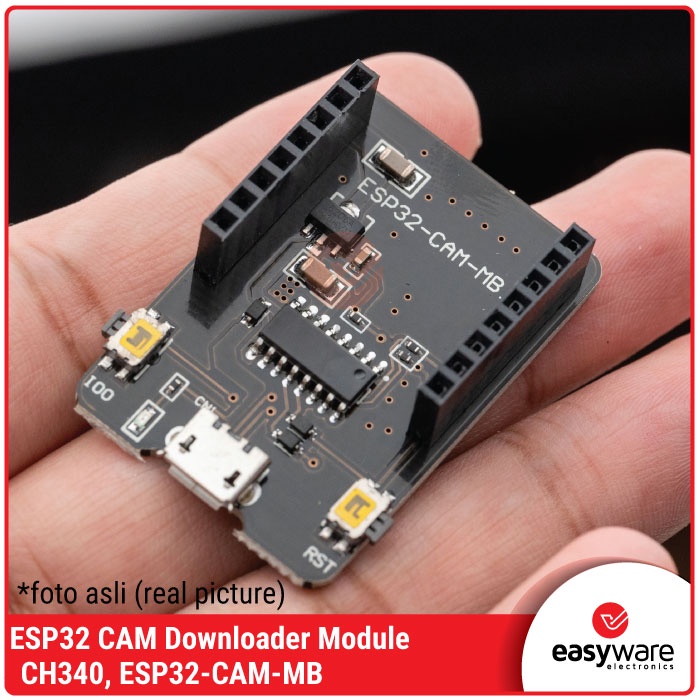

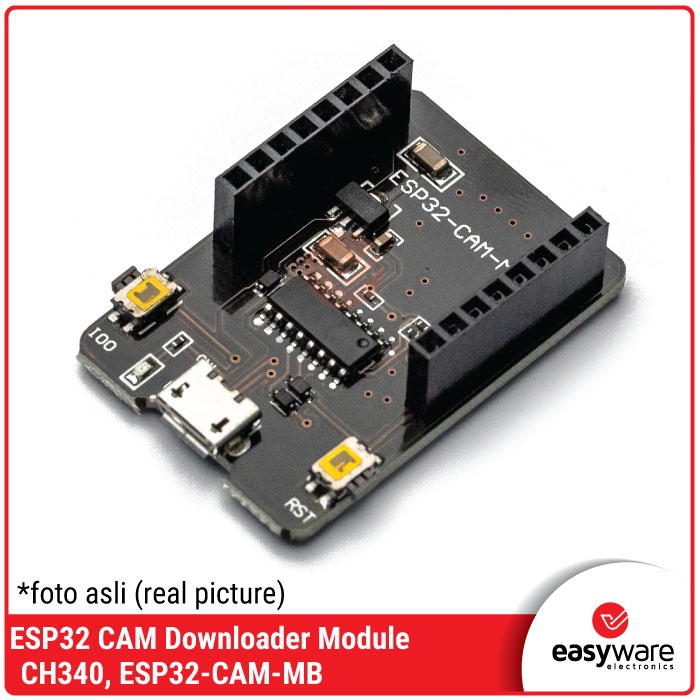

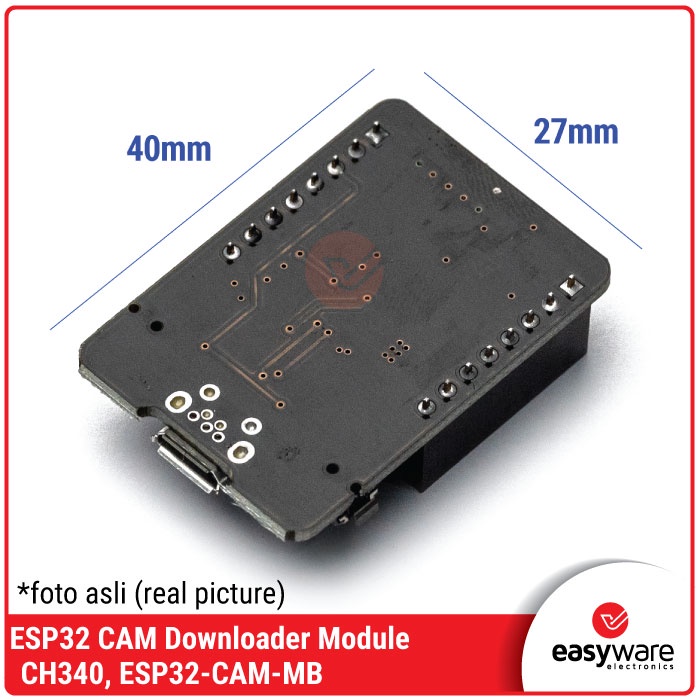

Gambar produk
