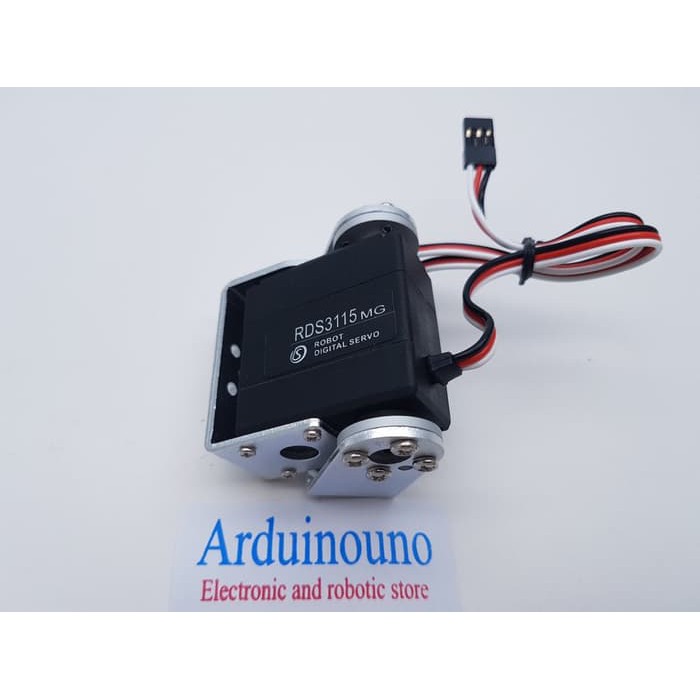

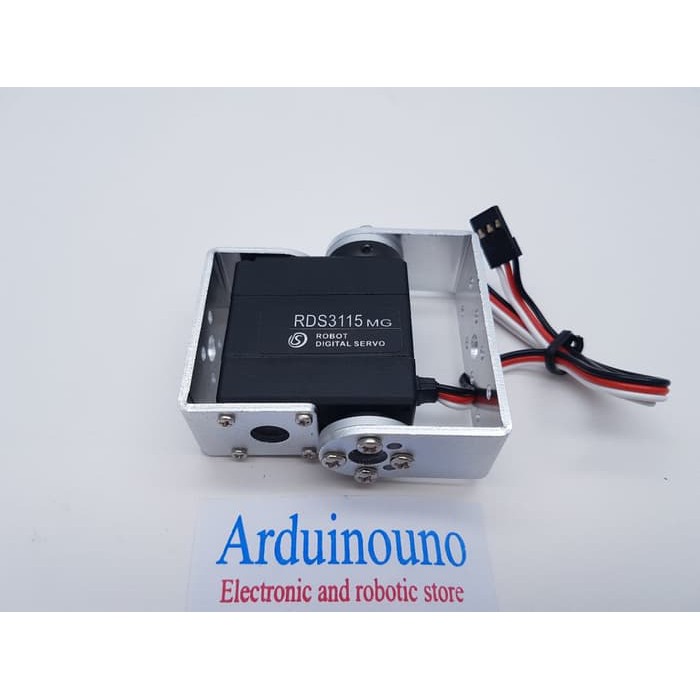

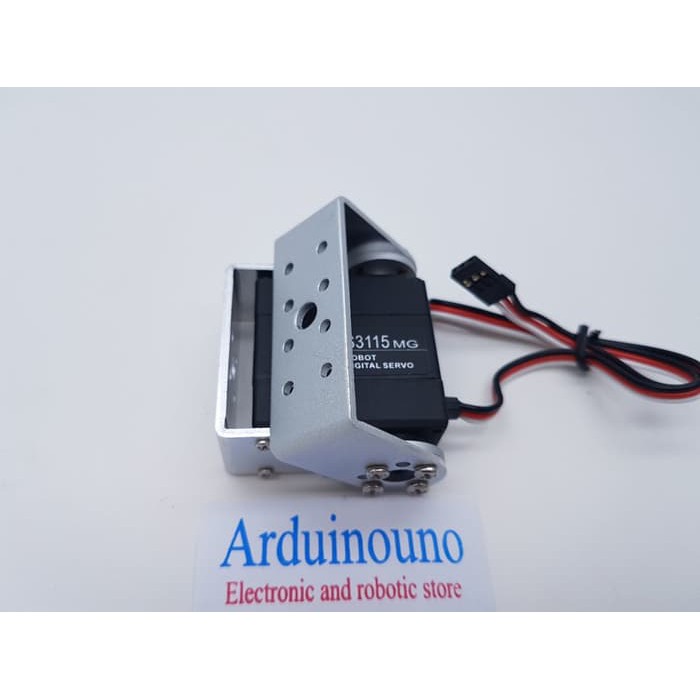

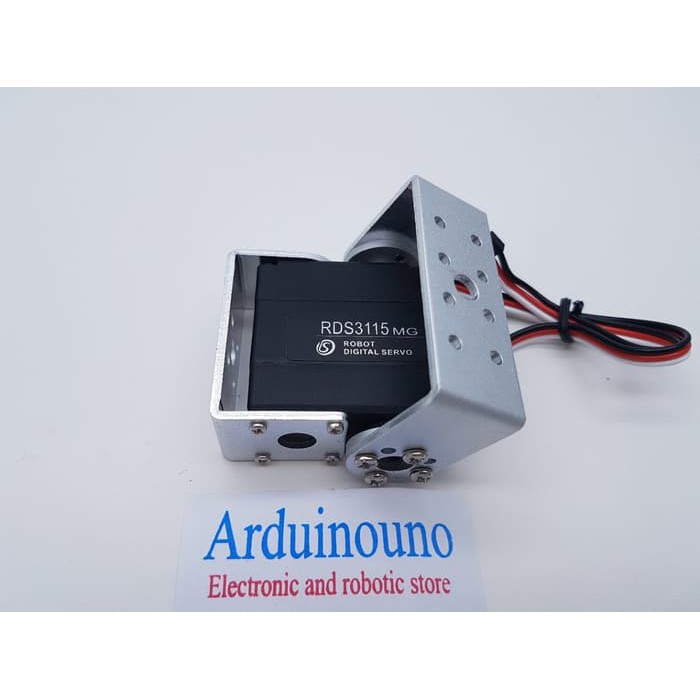

double head motor servo RDS3115mg 15kg 270 degree metal gear

Detail double head motor servo RDS3115mg 15kg 270 degree metal gear

Package contains:

1 pieces of RDS3115 Digital Metal Robotic Servo

1 pieces of long U metal brackets

1 pieces of short U metal brackets

1 pieces of metal servo arm 25T

1 pieces of metal servo arm driven

one set of screw(as the picture)



Size:40*20*40.5(servo)

64*55.6*20(Assembly the metal brackets size)

Weight:60g

Wire length:320mm

Speed: 0.16sec/60 degree at(6v)

0.14sec/60 degree at(7.2v)

Torque: 15kgcmat(6v)
17kgcmat(7.2v)

Voltage: 4.8v-8.4v

Dead Zoon setting:3 Microseconds
Features:

- Durable Metal Gear
- Dual Ball Bearing
- Programmable Digital Amplifier with Mosft Drive
- Bottom Side Axial Mount Hole
- Original factory product
- Less Noise
-Contains: Long Holder Aluminum & Short Holder Aluminum & Circle Holder-25T & Circle Holder -Orientation Angle:maximum 270 deg

-Mechanical Angle :360 deg

(Plug/Output wheel/Radio control system compatible with Futaba JR Hitec)
