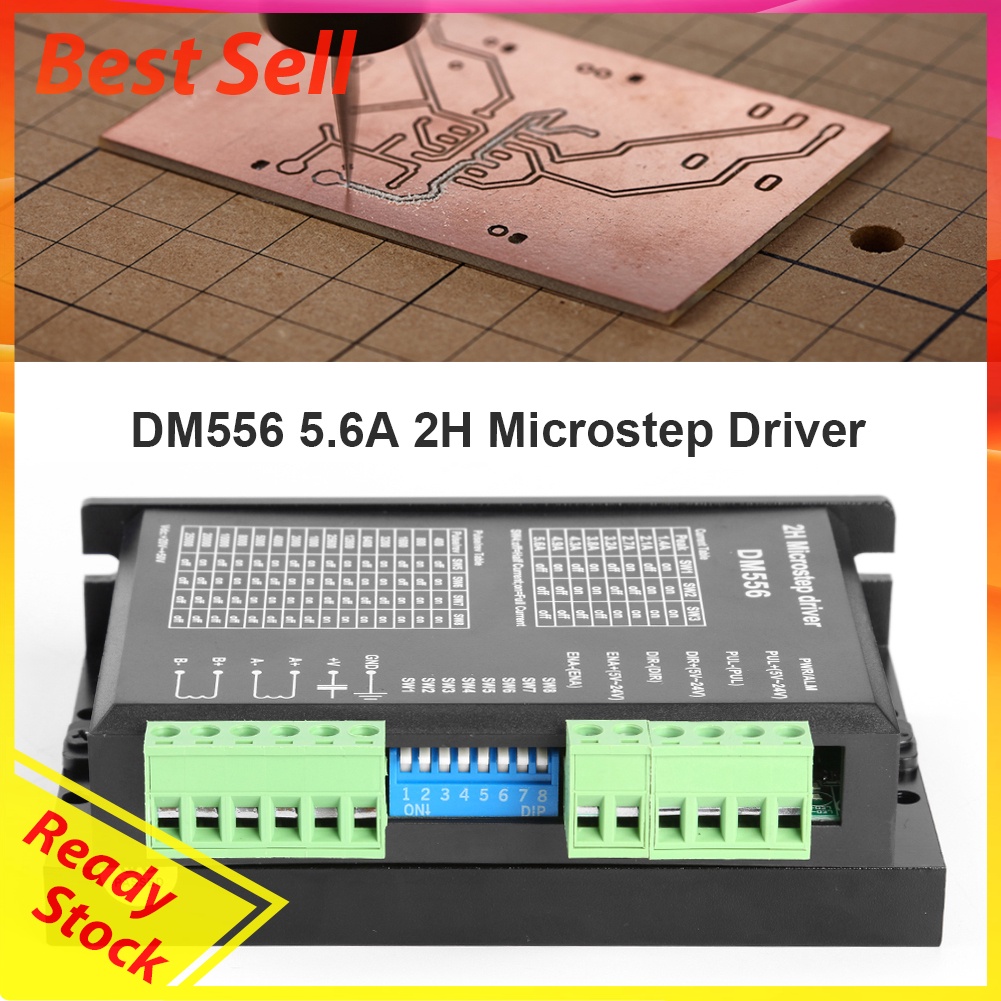

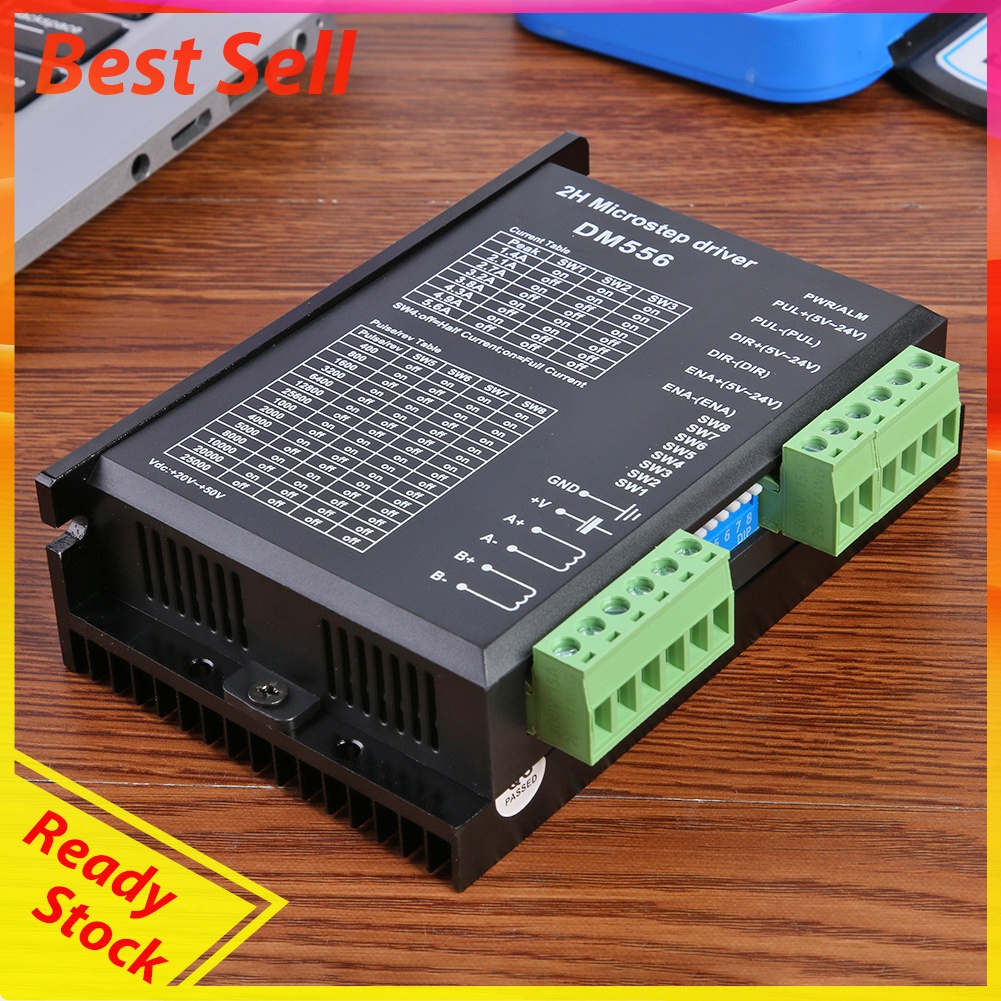

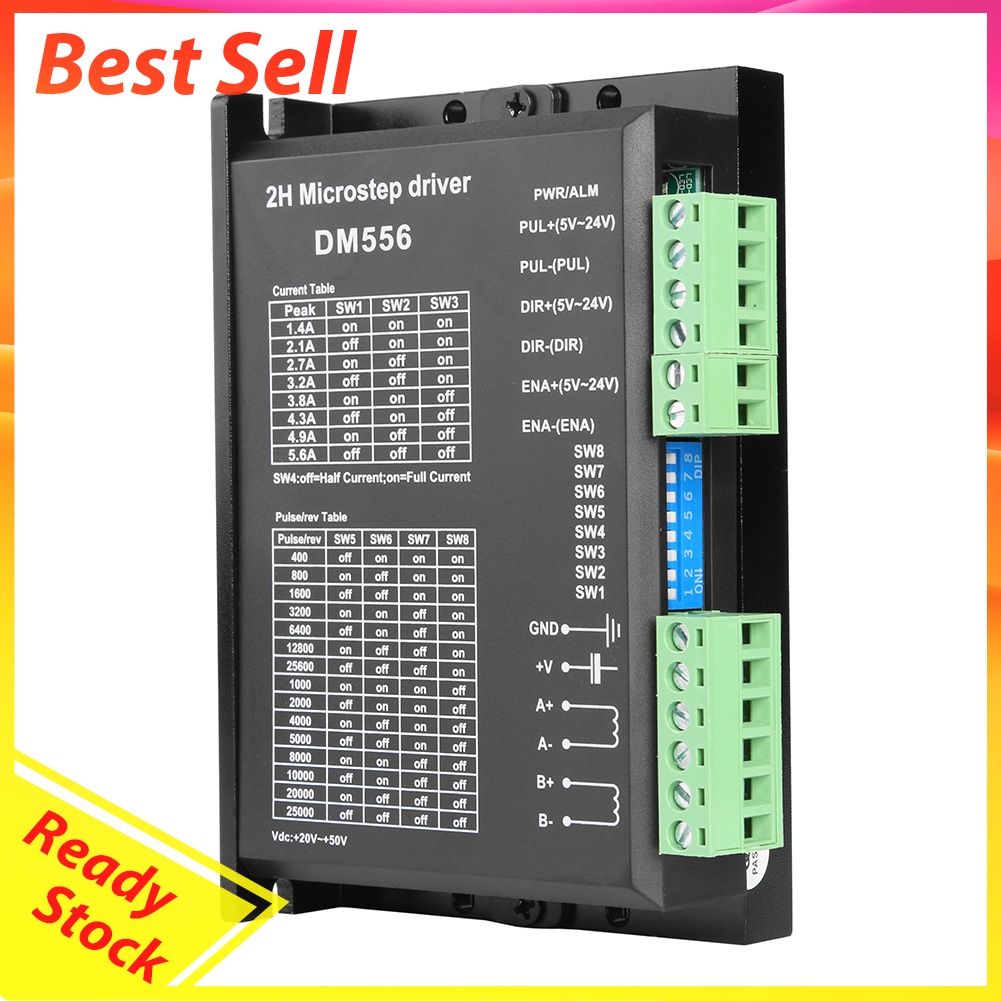

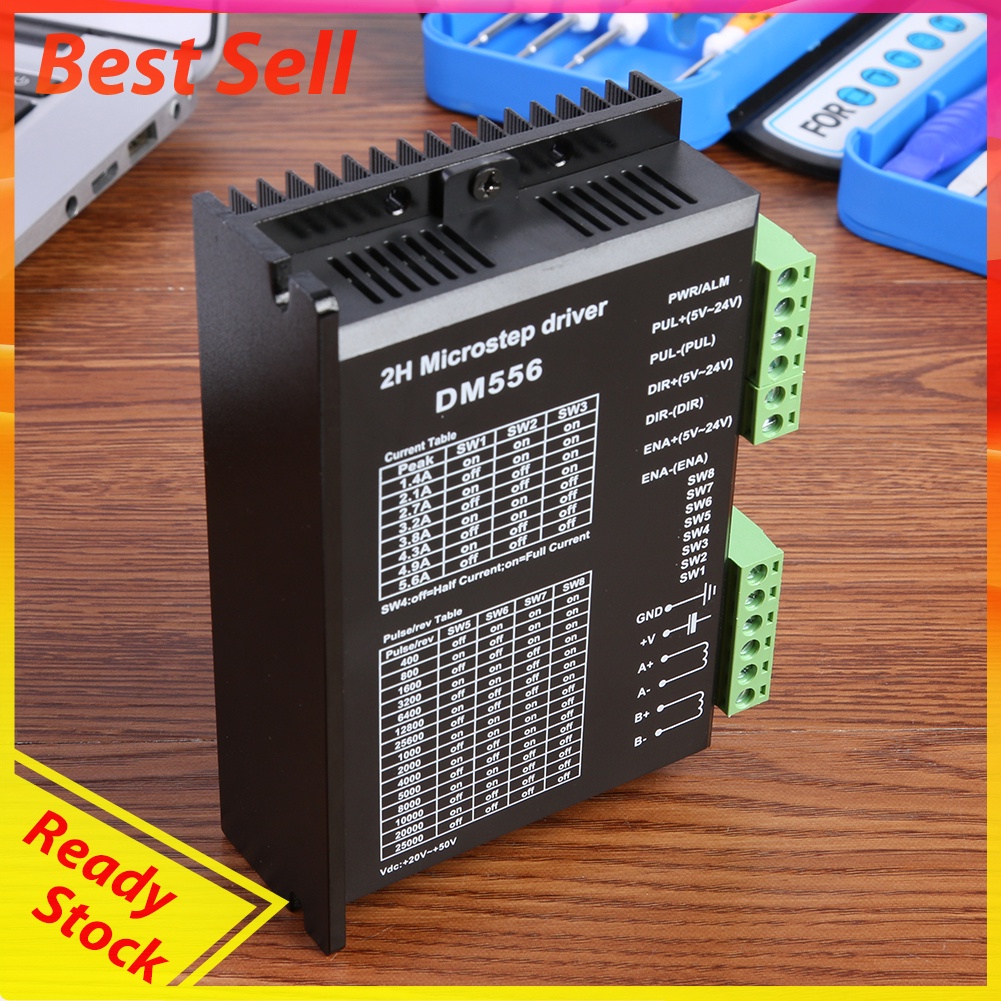

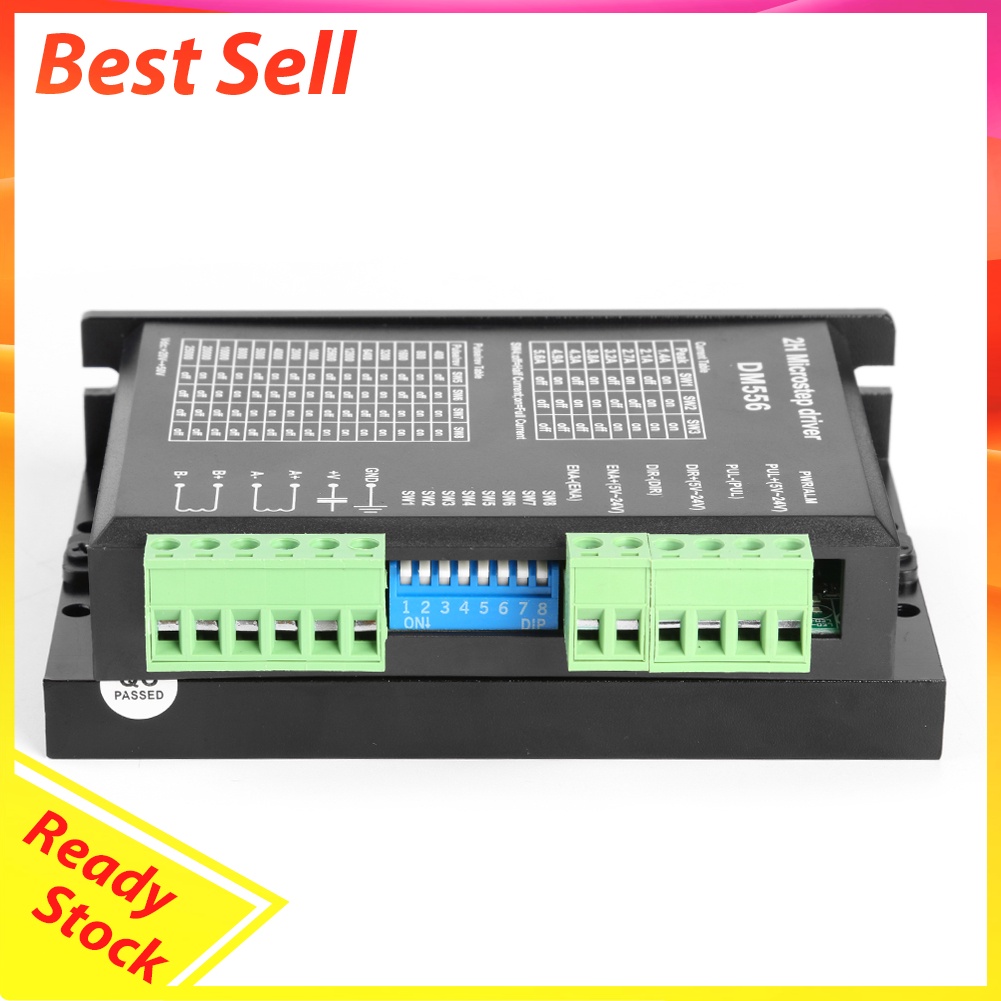

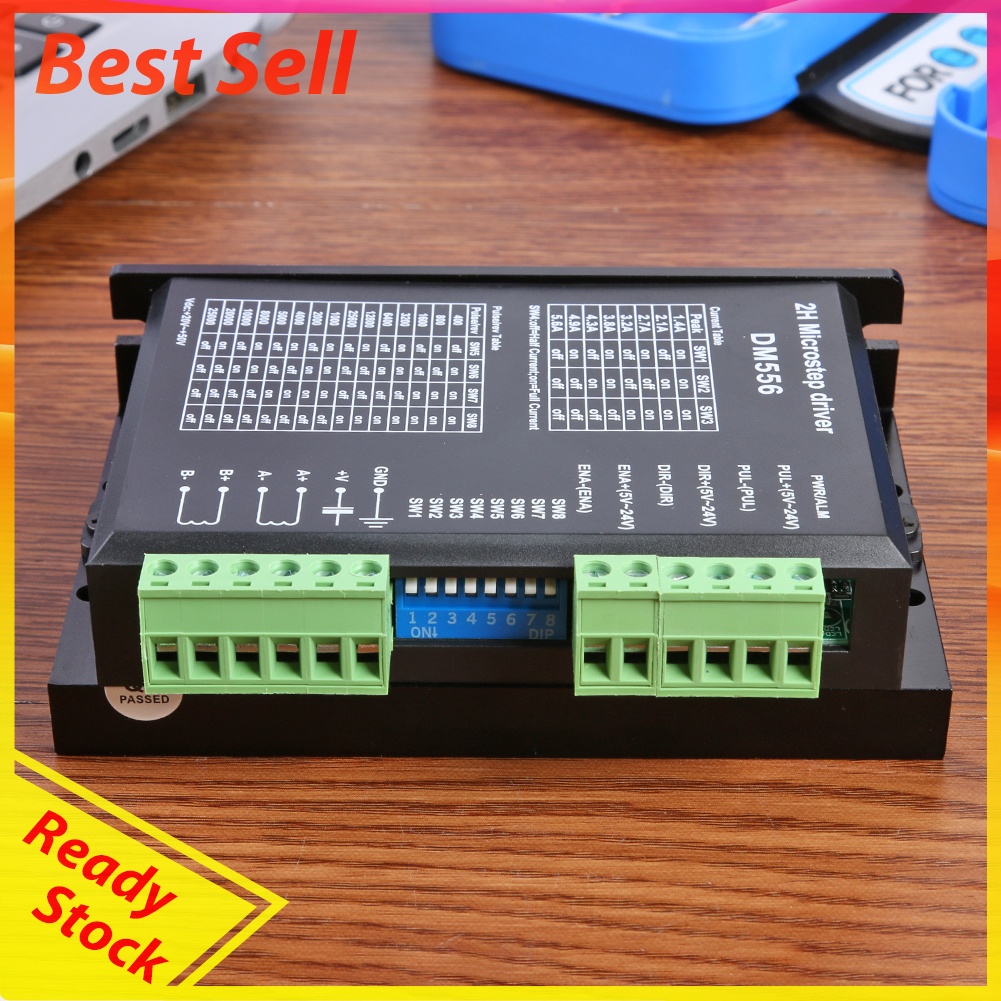

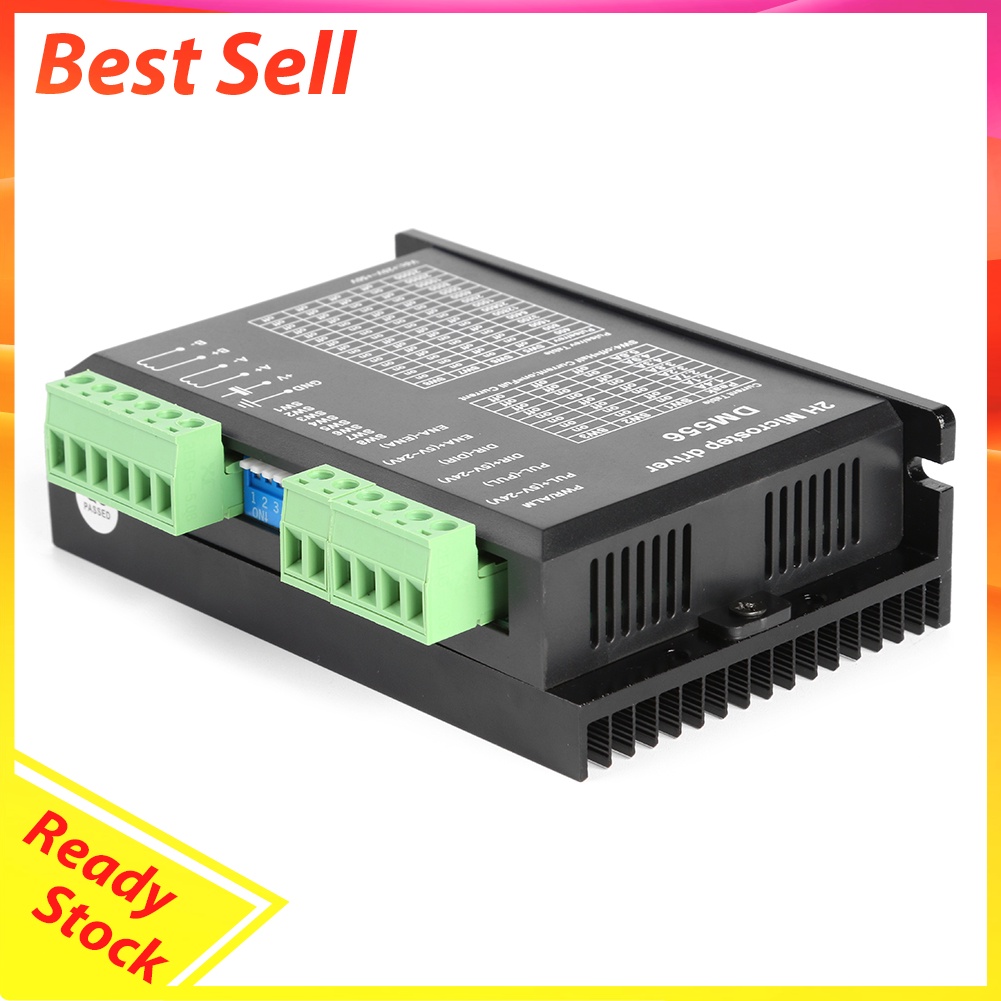

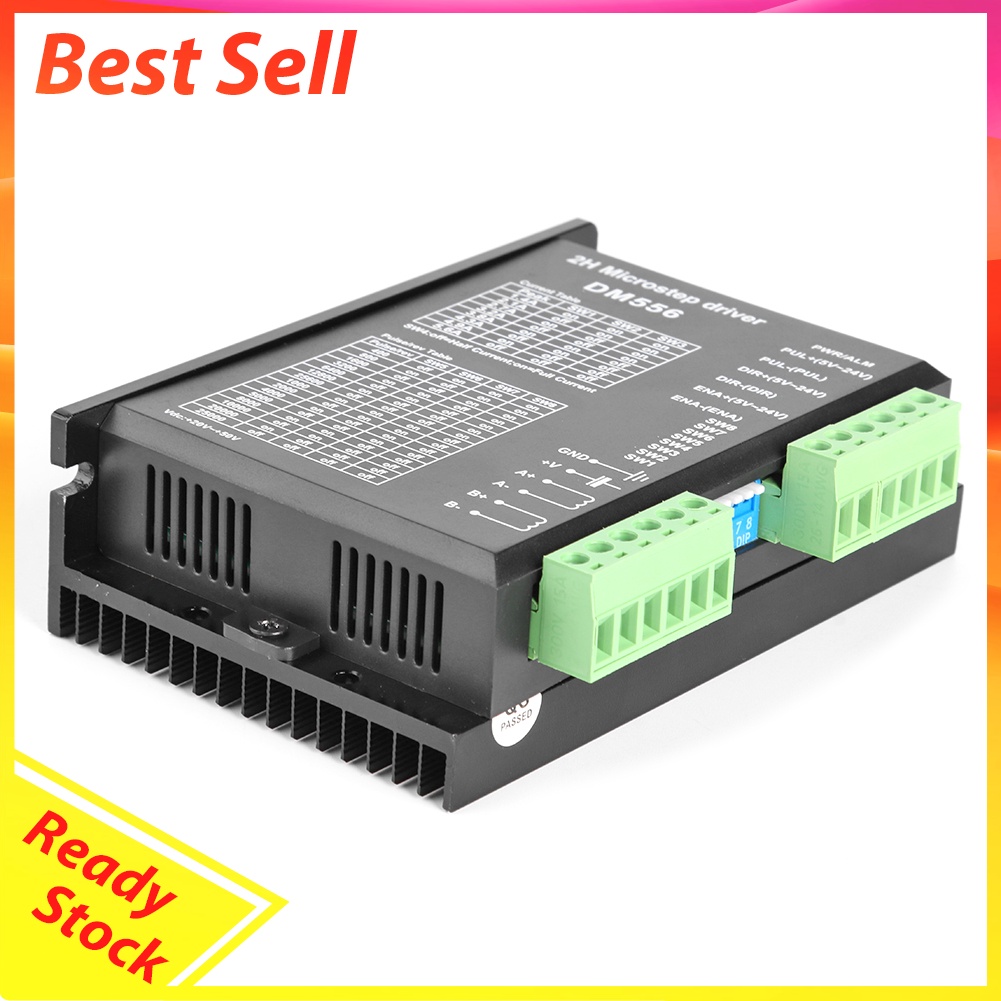

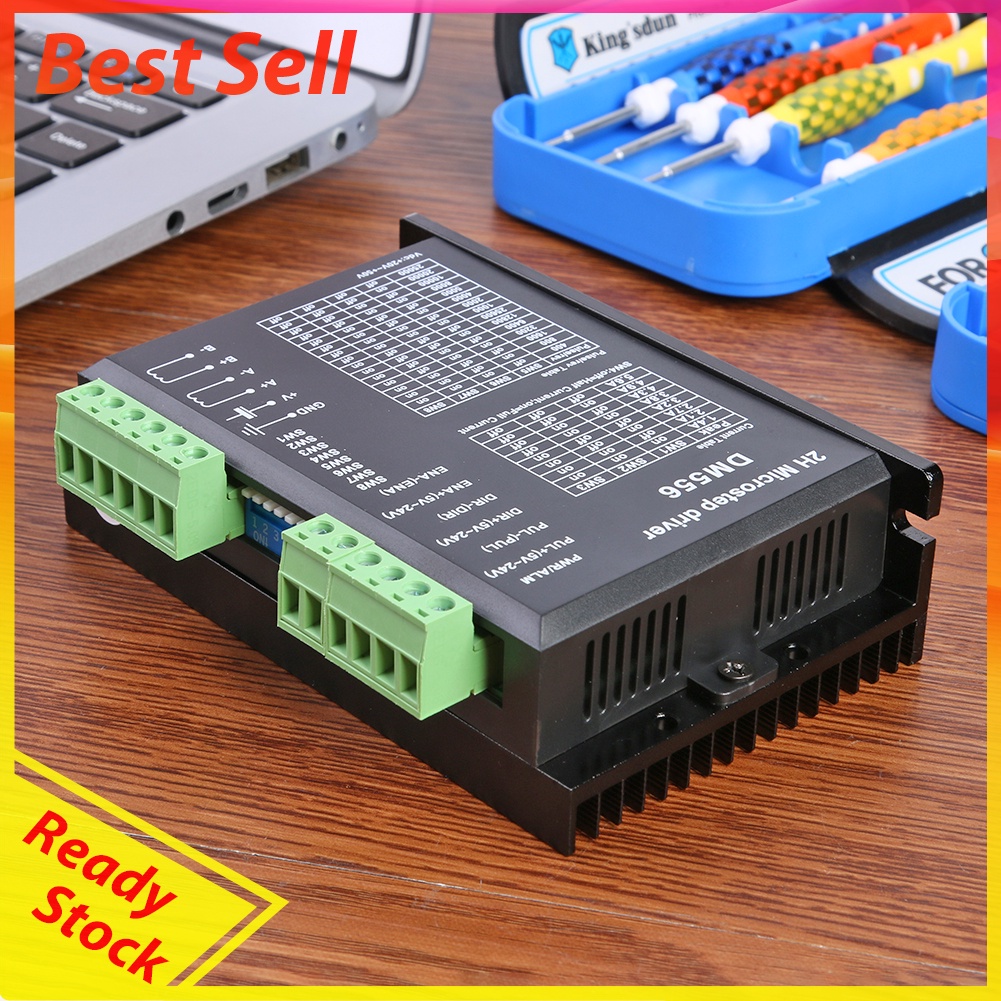

DM556 Digital Stepper Motor Driver 2-Phase 5.6A for 57 86 Stepping Motor

Detail DM556 Digital Stepper Motor Driver 2-Phase 5.6A for 57 86 Stepping Motor

DM556 Digital Stepper Motor Driver 2-Phase 5.6A Controller for Nema 23 57mm 34 86mm Stepping Motor Replaces M556
Specification:
Input power: 24 to 50V DC power supply, the capacity is not less than 200VA, the typical value is DC 36V
Output current: 1.0A to 4.2A, 8 levels adjustable, 0.5A resolution
Drive mode: dual-machine constant current PWM drive output
Insulation resistance: > 500MΩ under normal temperature and pressure
Insulation strength: 500V/min at normal temperature and pressure
Cooling method: natural cooling
Use occasion: avoid dust, oil mist and corrosive gas
Use temperature: 0℃ to +50℃
Environmental humidity: <80%RH, no condensation, no frost
Product size: 115*76*34mm/4.53*2.99*1.34"

Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.


Included:

1 X Stepper Motor Driver
