DM542 DM556 2 Phase Stepper Motor Driver Nema 34 42 57 Stepper Control

Elektronik > Elektronik Lainnya > DM542 DM556 2 Phase Stepper Motor Driver Nema 34 42 57 Stepper Control
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Java.TechLihat semua produk Elektronik oleh Java.Tech
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail DM542 DM556 2 Phase Stepper Motor Driver Nema 34 42 57 Stepper Control

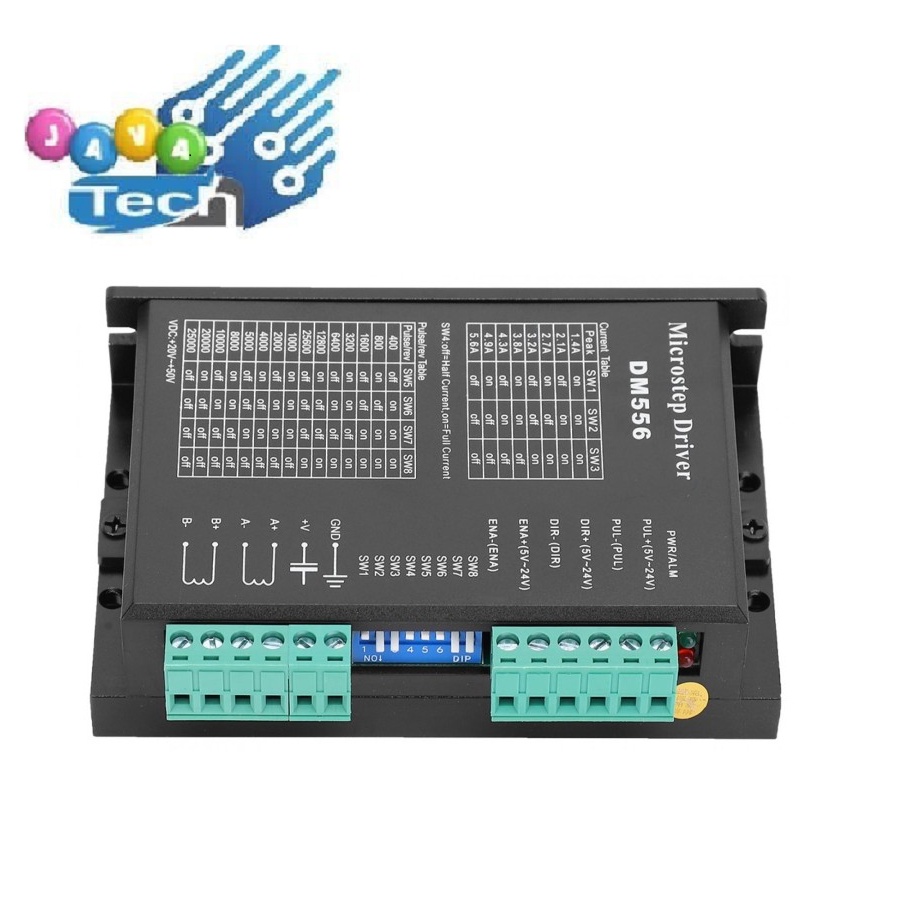

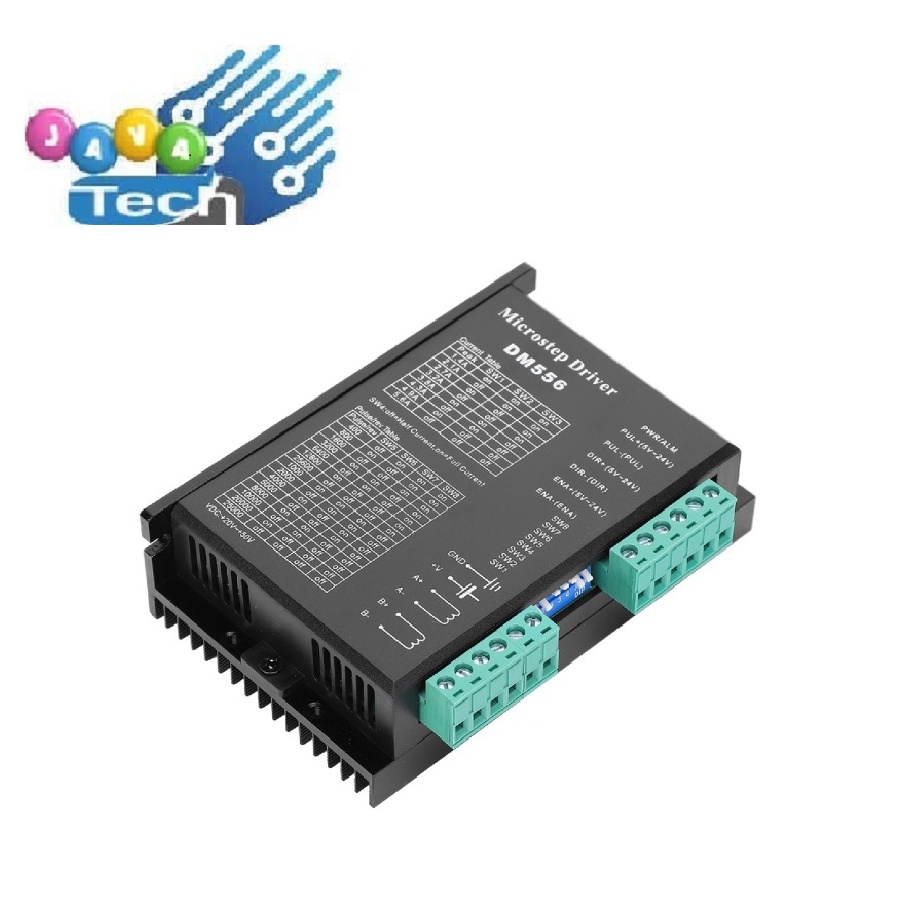

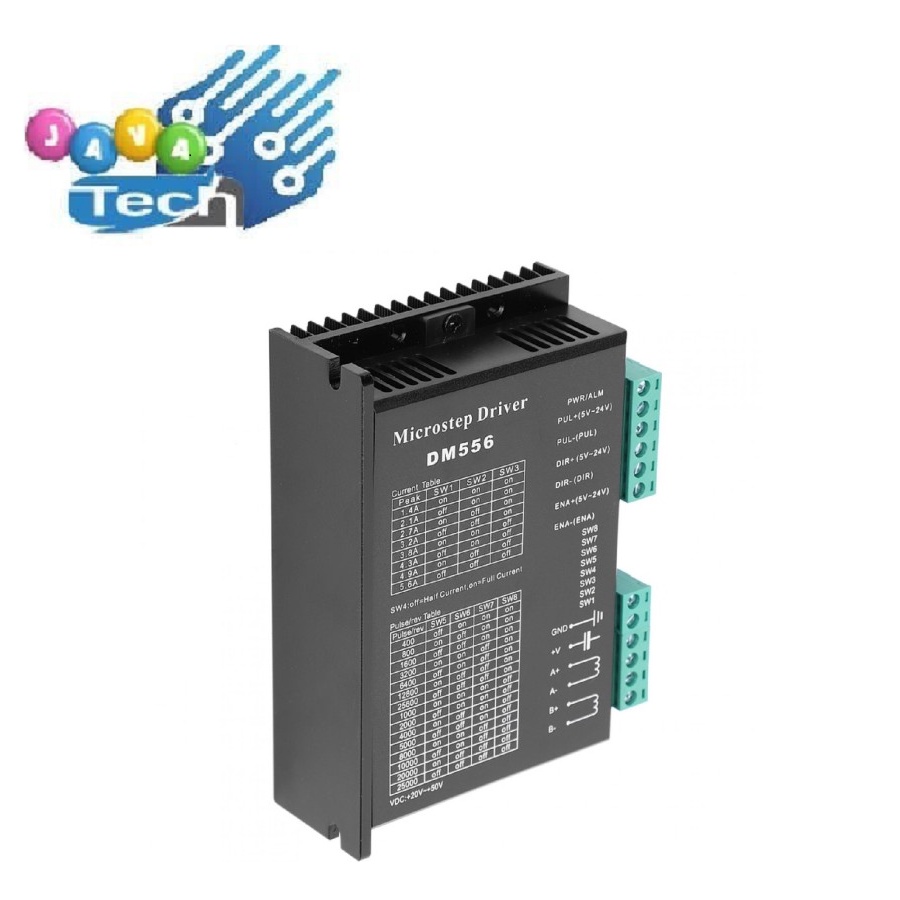

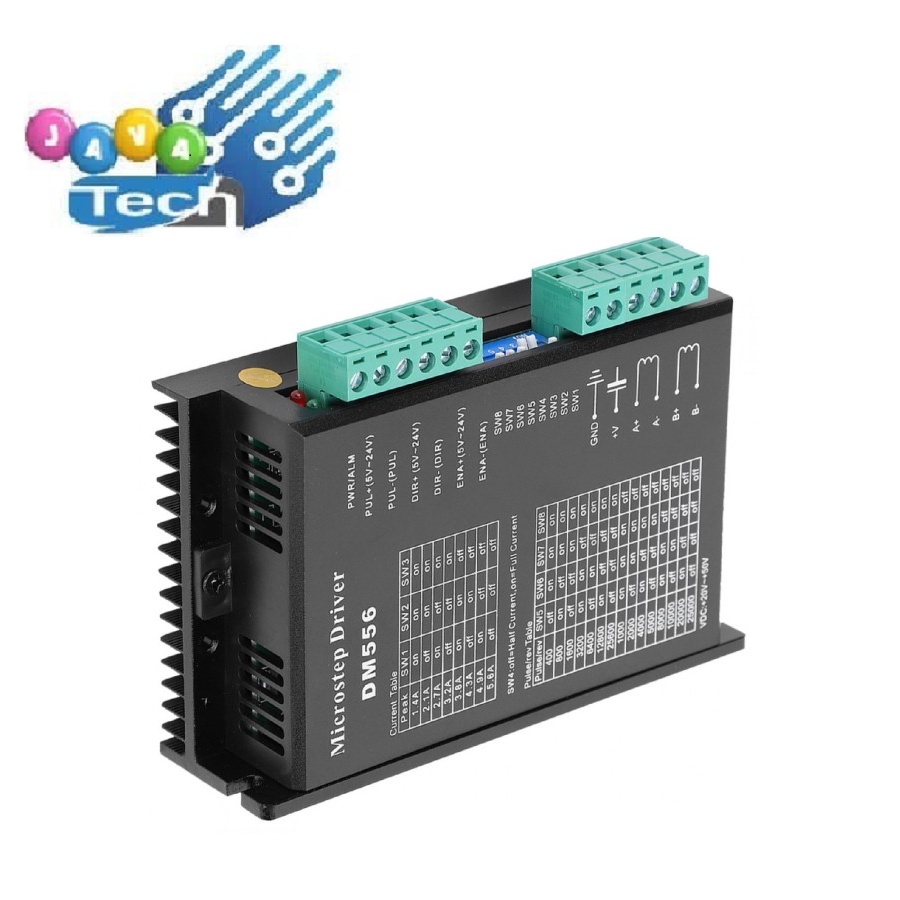

DM556
Feature:
1. 24V‑50V DC power supply, 8 level adjustable output current 0.5A‑5.6A.
2. Bipolar constant current PWM drive output. Low speed vibration, and low noise.
3. Optical isolation input signal, pulse response frequency up to 200kHz.
4. Strong anti‑interference capability, achieve high precise positioning in complicated environment.
5. Fit for 42/57 stepper motor, widely used in automatic packaging machine, engraving machine and other automation equipments.

Specification:
Condition: 100% Brand New
Item Type: Stepper Motor Driver
Material: Aluminum Alloy
Color: Black
Model: DM556
Supply Voltage: 24V‑50V DC
Output Current: 0.5-5.6A
Logic Signal Current: 7-16mA
Pulse Input Frequency: 0-200Khz
Microstep Resolution: 1-512
Insulation Resistance: > 500 Megohm

DM542
Feature:
Specification:
