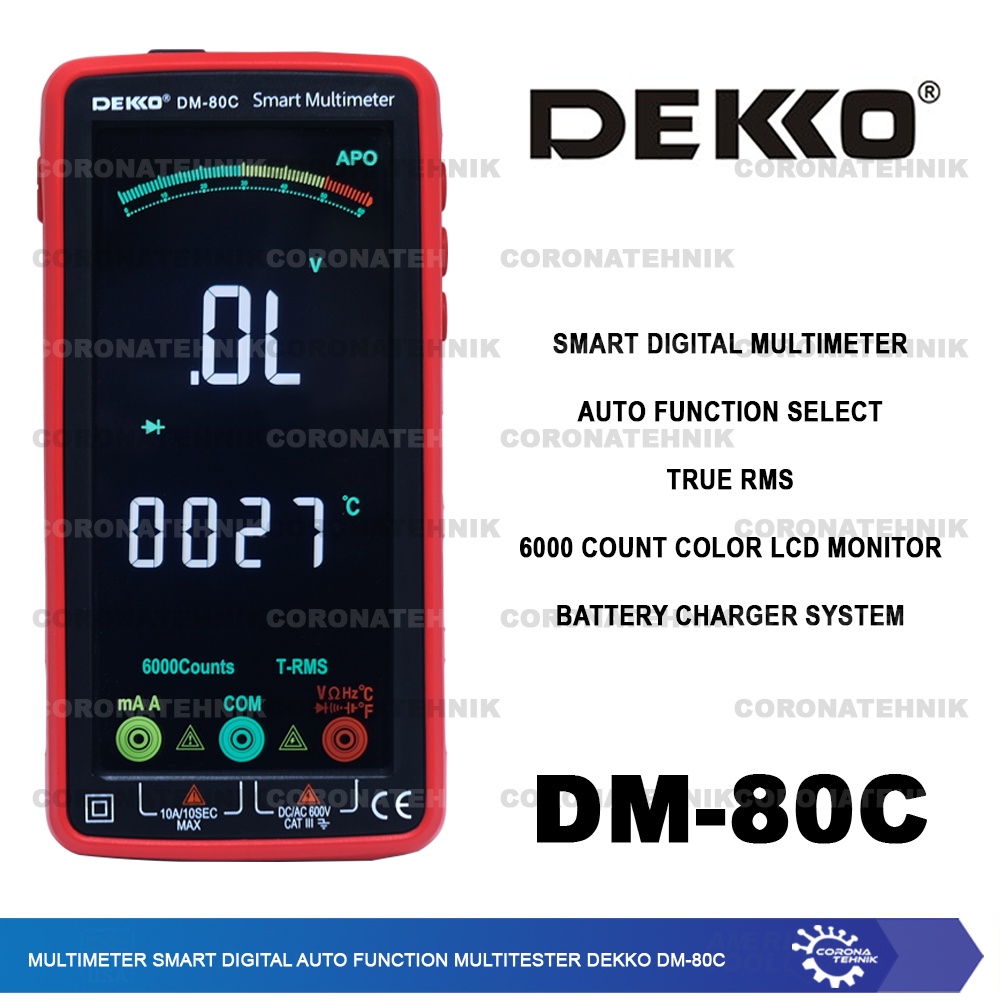

DM-80C - Multimeter Smart Digital Auto Function Multitester Dekko

Detail DM-80C - Multimeter Smart Digital Auto Function Multitester Dekko

- This device is a 3 5/6 digital multimeter with stable performance and reliable quality。The meter adopts LCD display screen with analog bar display。Users in the process of use、truly achieve continuous power operation、do not need to turn the dial to select functions。
- According to the input ac / DC voltage / resistance will be automatically identified and measured It can be used to measure DC voltage、AC voltage sine RMS、DC current、AC current sine RMS、resistance、capacitance、Live-line indication、duty ratio、diode on / off test、symbol unit data hold and automatic power off。
- The meter is equipped with a high performance MCU processor。It is powered by high-capacity rechargeable batteries with full functions and accurate measurement。The multimeter is an ideal tool for laboratory、factory、radio enthusiasts and household。

- Manual range and Auto range。
- Full range overloaded protection。
- The maximum voltage allowed between the measuring terminal and ground：1000V DC or 750V AC
- Fuse protection：uA、mA Gear fuse：FF630mA / 250V; A Gear fuse：FF20A / 250V
- Working height：Max 2000m
- Monitor：6000 counts LCD monitor with analog bar。
- Maximum display value：5999 digits
- Polarity indication：automatic indication、 '-' indicates negative polarity。
- Over-range display： 'OL' or '-OL'。
- Sampling time：about 3 times / second
- Unit display：a function、power unit display。
- Automatic power off time：about 15 minutes when no signal.
- Battery type：1.5V * 3battery
- Temperature coefficient：less than 0.1 X accuracy / C
- Working temperature：18°C〜28°C
- Storage temperature：-10°C〜50°C
- Size：150（L）X75（W）X 24（H）mm
- Weight：about 2000g（including battery）

Test Range :
- DC Voltage : 6V, 60V, 600V, 1000V
- AC Voltage : 6V, 60V, 600V, 750V
- AC & DC Current : 6000mA, 10A
- Resistance : 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ
- Capacity : 60.00nF, 600.0nF, 6.000μF, 60.00μF, 600.0μF, 6.000mF, 60.00mF, 100.0mF
- Diode Test
- Circuit On/Off Test
- Temperature test
- Frequency : 9.999Hz-999.9kHz
