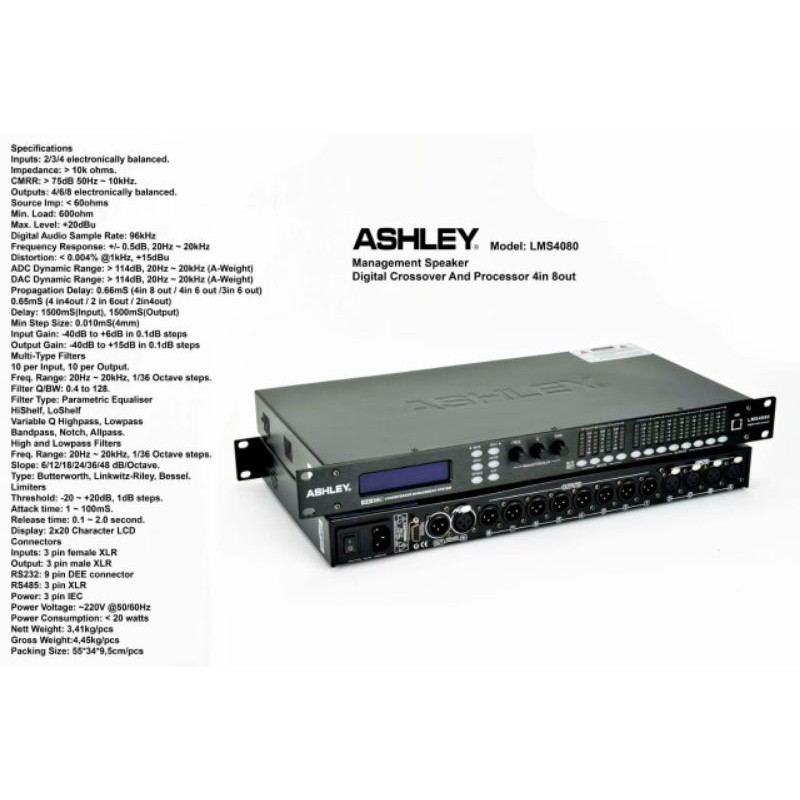

Detail DLMS Ashley LMS4080 Original
Specifications Inputs: 2/3/4 electronically balanced. Impedance:> 10k ohms. CMRR:> 75dB 50Hz-10kHz. Outputs: 4/6/8 electronically balanced. Source Imp: <60ohms Min. Load: 600ohm Max. Level: + 20dBu Digital Audio Sample Rate: 96kHz Frequency Response: + -0.5dB, 20H2 - 20kHz Distortion: <0.004% @ 1kHz, + 15dBu ADC Dynamic Range:> 114dB, 20HZ - 20kHz (A-Weight) DAC Dynamic Range: > 114dB, 20HZ - 20kHz (A-Weight) Propagation Delay: 0.66ms (4in 8 out / 4in 6 out / 3in 6 out) 0.65mS (4 indout / 2 in 6out / Zin4out) Delay: 1500mS (Input), 1500mS (1500mS (out) Output) Min Step Size: 0.010mS (4mm) Input Gain: 40dB to + 6dB in 0.1dB steps Output Gain: 400B to + 15dB in 0.1dB steps 10 Multi-Type Filters 10 per Input, 10 per Output. Freg Range: 20HZ - 20kHz, 1/36 Octave steps. Filter Q / BW: 0.4 to 128. Filter Type: Parametric Equalizer HiShelf, LoShelf Variable Q Highpass, Lowpass Bandpass, Notch, Allpass. High and Lowpass Filters Freq. Range: 20HZ - 20kHz, 1/36 Octave steps. Slope: 6/12/18/24/36/48 dB / Octave. Type: Butterworth, Linkwitz-Riley, Bessel. Threshold Limiters: -20 - + 20dB, 1dB steps. Digin ASHLEX Attack time: 1-100mS. Release time: 0.1-2.0 second. Display: 2x20 Character LCD Connectors Inputs: 3 pin Female XLR Output: 3 pin Male XLR RS232: 9 pin DEE RS485 connector: 3 pin XLR Power: 3 pin IEC Power Voitage: -220V 50 / 60Hz Power Consumption: 20 watte Net Weight: 3,41kg / pcs Gross Weight: 4,45kg / pcs Packing Size: 66 349,5cm / pcs
Gambar produk
DLMS Ashley LMS4080 Original
