Detail DLMS Ashley LMS3060 3 in 6 Out
Specifications Inputs: 2/3/4 electronically balanced. Impedance:> 10k ohms. CMRR:> 75DB 50Hz - 10kHz. Outputs: 4/6/8 electronically balanced. Source Imp: <60ohms Min. Load: 600ohm Max. Level: + 20dBu Digital Audio Sample Rate: 96kHz Frequency Response: +/- 0.5dB, 20HZ - 20kHz Distortion: <0.004% @ 1kHz, + 15dBu ADC Dynamic Range:> 114dB, 20HZ - 20kHz (A-Weight) DAC Dynamic Range :> 114dB, 20HZ - 20kHz (A-Weight) Propagation Delay: 0.66ms (4in 8 out / 4in 6 out / 3in 6 out) 0.65ms (4 indout / 2 in 6out / 2indout) Delay: 1500mS (Input), 1500mS (Output) Min Step Size: 0.010mS (4mm) Input Gain: 40DB to + 6dB in 0.1dB steps Output Gain: 40dB to + 15dB in 0.1dB steps 10 Multi-Type Filters 10 per Input, 10 per Output. Freg Range: 20Hz - 20kHz, 1/36 Octave steps. Filter Q / BW: 0.4 to 128. Filter Type: Parametric Equalizer HIShelf, LoShelf Variable Q Highpass, Lowpass Bandpass, Notch, Allpass. High and Lowpass Filters Freq. Range: 20HZ - 20kHz, 1/36 Octave steps. Slope: 6/12/18/24/36/48 dB / Octave. Type: Butterworth, Linkwitz-Riley, Bessel. Threshold Limiters: -20 - + 20dB, 1dB steps. Attack time: 1- 100ms. Release time: 0.1-2.0 second. Display: 2x20 Character LCD Connectors AS Manag Digita ATHEV Inputs: 3 pin female XLR Output: 3 pin male XLR RS232: 9 pin DEE connector RS485: 3 pin XLR Power: 3 pin IEC Power Voitage: 220V @ 50 / 6OHZ Power Consumption: < 20 watts Nett Weight: 3,41kg / pcs Gross Weight: 4,31kg / pcs Packing Size: 55 349,5cm / pcs

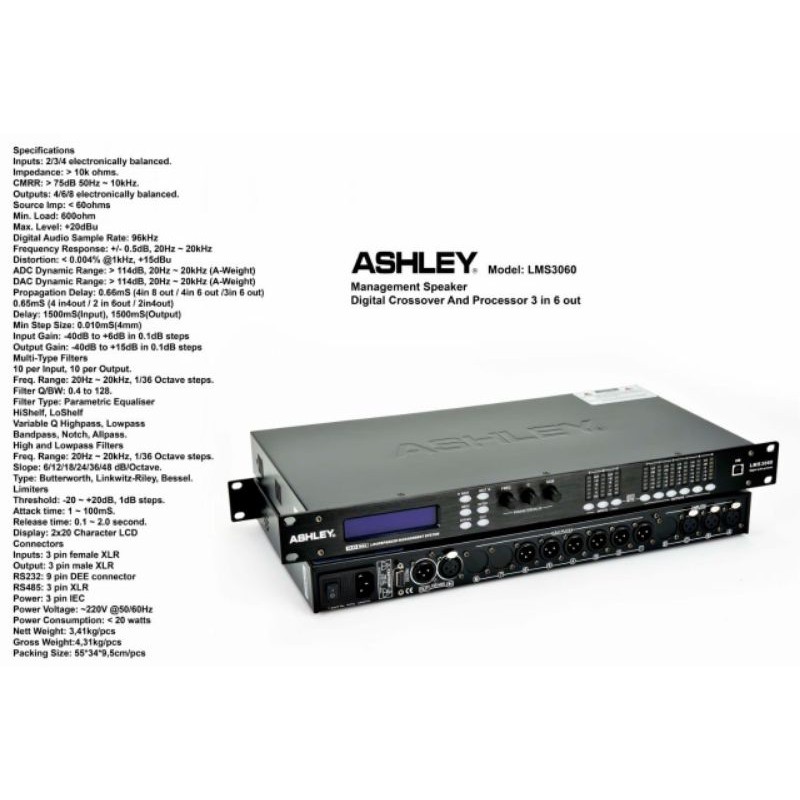

Gambar produk
DLMS Ashley LMS3060 3 in 6 Out
