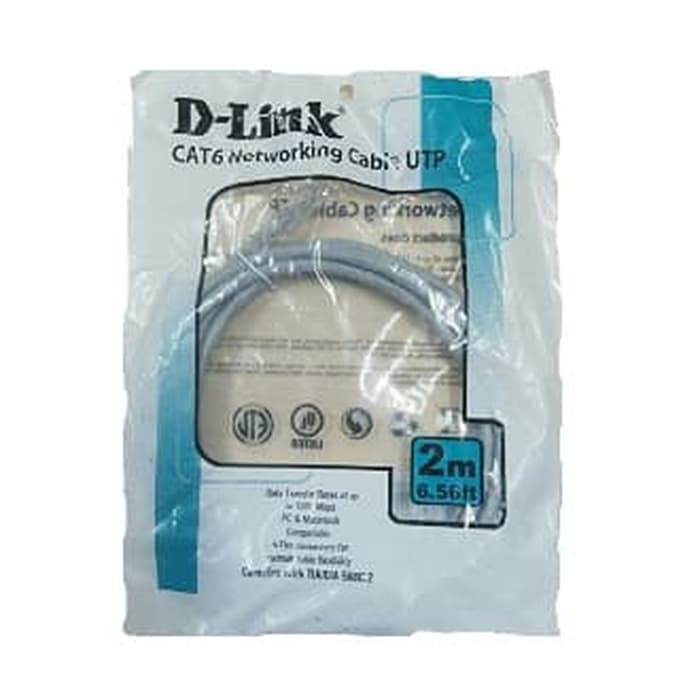

Dlink NCB-C6UGRYR1-2 Patch Cord Cat 6 UTP 2 Meter

Detail Dlink NCB-C6UGRYR1-2 Patch Cord Cat 6 UTP 2 Meter

SPECIFICATIONS
INTRODUCTION
• 4 Pairs Unshielded Twisted Pair (UTP) Cable
• Conductor Metal: Bare Copper
• Color Code: Gray
• Conductor: 24 AWG
• Insulation Material: HD-PE
• Jacket Material: PVC UL94V-0
• Heat-resistant: 60oC minimum (Temperature limited)
• Flame property: The purpose of the
vertical flame test is to screen out
flammable wires. It follows the
VW-1 (UL); FT-1 (CSA) standards.
MODULAR CONNECTOR/PLUG
• RJ-45 8P for Transparence color.
• Gold plated: 30U”
• Contact blade: Phosphor Bronze
• Temperature range: -10 ~ 80o
C
• Dielectric withstanding voltage: 500V AC
• Insulation resistance: 35M Ohm (max.)
• Durability: 750 matching cycles
• Cable-to-plug tensile strength: 20lbs (89N) (min.)
• UL applications: 250V AC, 2A (max.)
• Polycarbonate (PC) UL94-V-0
APPLICATION
APPROVAL / CERTIFICATION
D-Link solid cables are the best twisted-pair cables in the market for transmitting data
over local area Networks (LANs). These cables exceed performance requirements
specified by the TIA/EIA-568B.2 / TIA/EIA-568C.2 and IEC 60603-7-4 standards.
• 10BASE-T, 100BASE-TX Fast Ethernet,
1000BASE-T (IEEE802.3)
• 100VG-AnyLAN (IEEE802.12)
• 550 MHz Broadband Video
• Voice, T1, ISDN
• 155/ 622 Mbps ATM
• Power over Ethernet (POE)
• UL 444 (for Copper conductor)
• UL 758/ Style 2835
• UL 1581 (Test standard)
• Verified compliant with TIA/EIA-568C.2
standards by ETL, CUL listed, RoHs
